| Energy Efficiency Class | E
|
||
| Approval Marks | CE marking
|
ENEC certificate
|
UL certificate
|
| EPREL Registration Number | 791,858
|
| EAN/UPC - Case | 8718699591069
|
| Numerator - Quantity Per Pack | 1
|
| Order code | 929001594706
|
| Full product code | 871869959104500
|

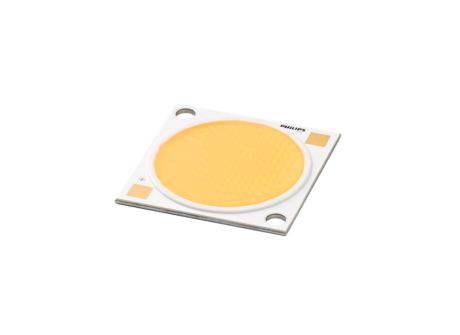

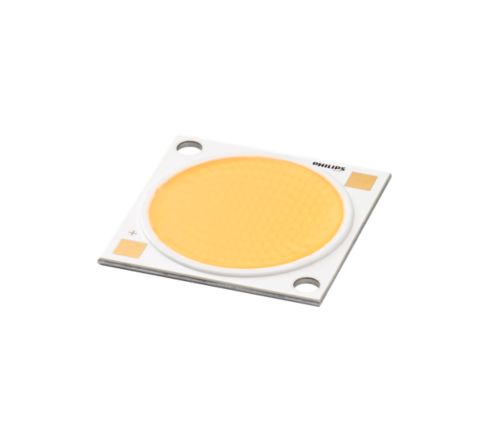

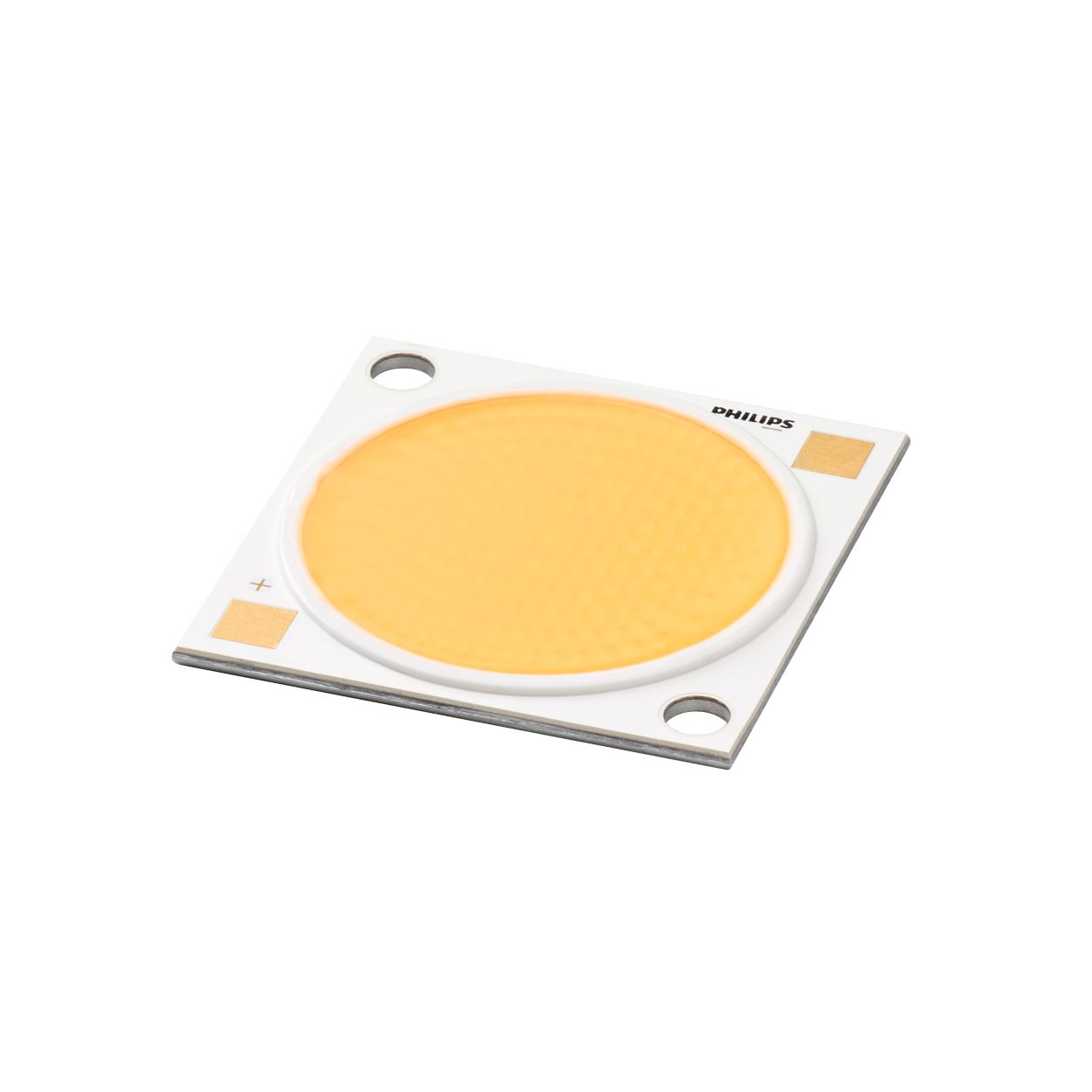

| Order product name | Fortimo SLM C 930 PW 1216 L23 2828 G7
|
| Full product name | Fortimo SLM C 930 PW 1216 L23 2828 G7
|
| Numerator - Packs per outer box | 50
|
| Material number (12NC) | 929001594706
|
| Lighting Technology | LED
|
| Remarks | Please download the Lighting - Product Data Sheet for more information and ordering options
|
| Overall height | 1.5
mm
|
| Overall length | 28
mm
|
| Overall width | 28
mm
|
| CoB size | 2,828
|
| Dimensions (Height x Width x Depth) | 2 x 28 x 28 mm
|
| T-Case Maximum (Max) | 105
°C
|
| T-Case Lifetime (Max) | 95
°C
|
| Luminous Flux | 6,930
lumen
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Luminous Efficacy (rated) (Nom) | 126
lm/W
|
| Color Consistency Initial | 3
|
| Color rendering index (CRI) | 92
|
