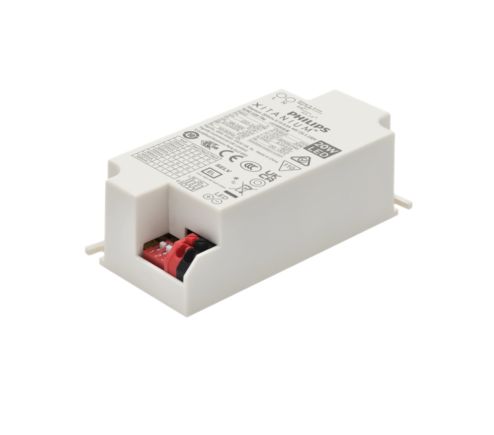

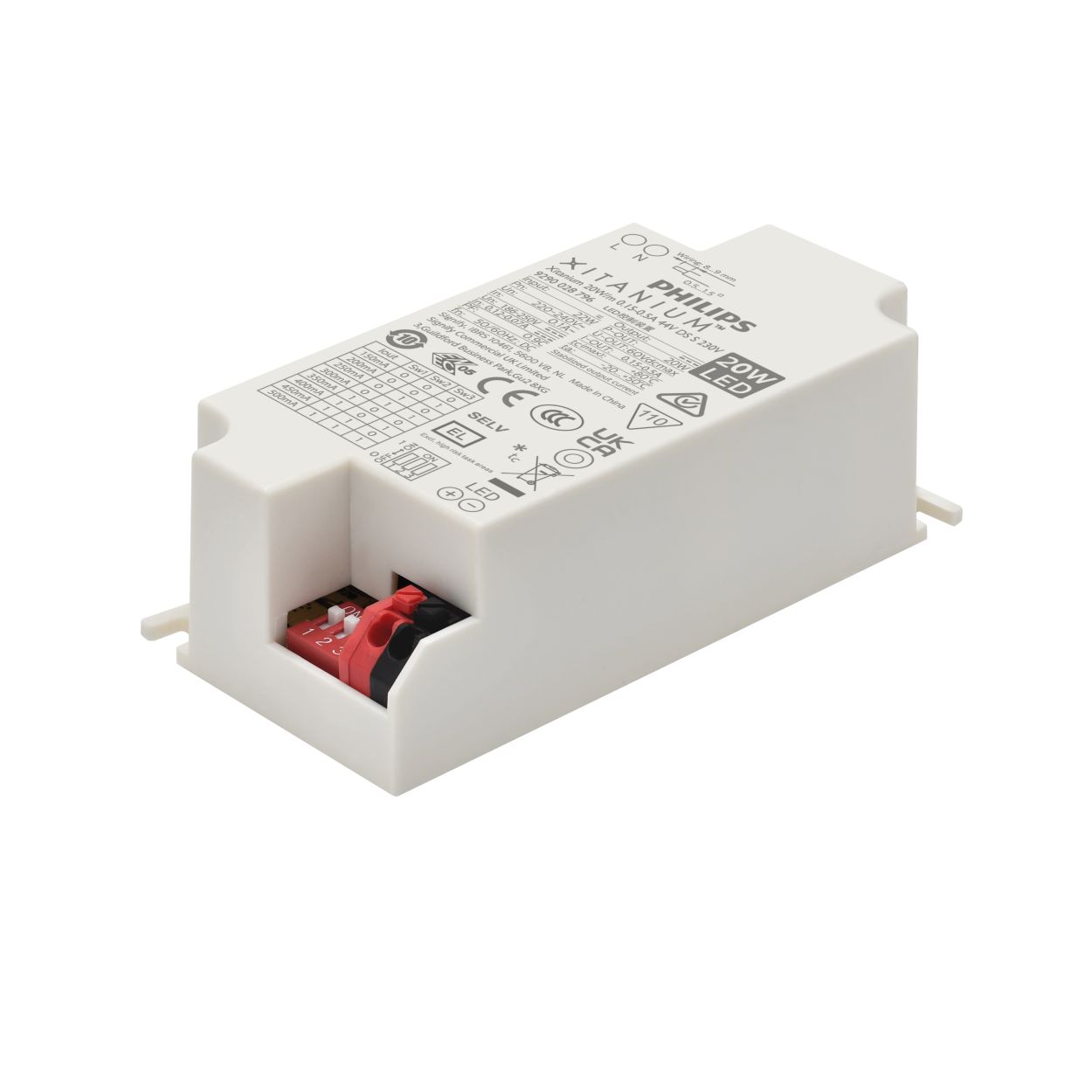

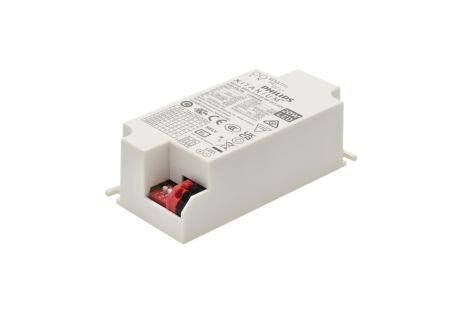

Xitanium 30W/m 0.35-0.7A 44V DS S 230V

Specifications Show all

Operating and Electrical

Output Power (Max)	30 W
Output Current Ripple (Max)	4 %
Output Voltage (Max)	44 V
Open Circuit Voltage (DC) (Max)	60 V
Output Power (Min)	9 W
Output Voltage (Min)	5 V
Output Current (Min)	350 mA
Output Current (Max)	700 mA

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class I/II
Isolation Classification	Class I and Class II
Output Current Set Options	Dipswitch
Approval Marks	CE marking	CB Certificate	ENEC certificate	CCC certificate	RCM compliance

Product Data

EAN/UPC - Case	8719514385610
Numerator - Quantity Per Pack	1
Order product name	Xitanium 30W/m 0.35-0.7A 44V DS S 230V
Order code	929002879706
Full product code	871951438560300
Full product name	Xitanium 30W/m 0.35-0.7A 44V DS S 230V
Numerator - Packs per outer box	40
Material number (12NC)	929002879706

Controls and Dimming

Dimmable

No

General Information

Lighting Technology

LED

Mechanical and Housing

Overall height	30 mm
Overall length	97.3 mm
Overall width	43.3 mm
Dimensions (Height x Width x Depth)	30 x 43 x 97 mm
Product Length	97 mm

Temperature

T-Case Maximum (Max)	80 °C
T-Case Lifetime (Max)	80 °C

System characteristics

Central DC Operation	Yes
YellowDot ready	No
