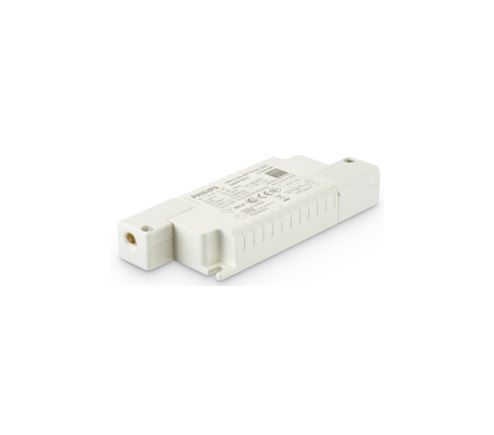

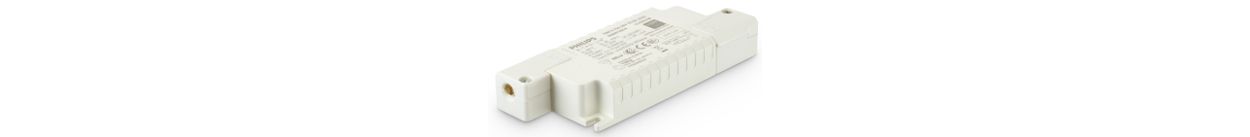

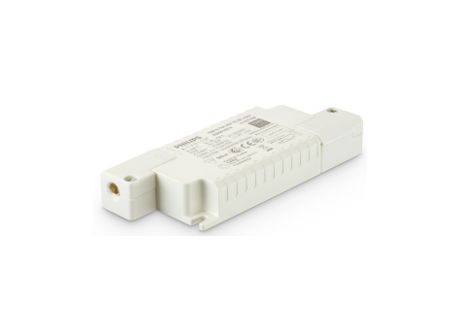

Xitanium 10W 0.25A 40V TE SC 230V

Specifications Show all

Operating and Electrical

Output Power (Max)	10 W
Output Voltage (Max)	40 V
Output Current Ripple (Max)	4 %
Open Circuit Voltage (DC) (Max)	60 V
Output Power (Min)	7.25 W
Output Voltage (Min)	29 V
Output Current (Min)	250 mA
Output Current (Max)	250 mA

Approval and Application

Protection class IEC	Safety class I/II
Ingress protection code	IP20  [Finger-protected]
Approval Marks	CE marking	CB Certificate	ENEC certificate
Output Current Set Options	Preset Current
Isolation Classification	Class I and Class II

Product Data

EAN/UPC - Case	8718696765692
Numerator - Quantity Per Pack	1
Order product name	Xitanium 10W 0.25A 40V TE SC 230V
Order code	929001421106
Full product code	871869676568500
Full product name	Xitanium 10W 0.25A 40V TE SC 230V
Material number (12NC)	929001421106
Numerator - Packs per outer box	50

Controls and Dimming

Dimming Range	100-5 %
Dimmable	Trailing edge

General Information

Lighting Technology

LED

Mechanical and Housing

Overall height	19 mm
Overall length	100 mm
Overall width	50 mm
Housing	ODM flat housing build-in 100mm
Dimensions (Height x Width x Depth)	19 x 50 x 100 mm
Product Length	100 mm

Temperature

T-Case Maximum (Max)	80 °C
T-Case Lifetime (Max)	70 °C

System characteristics

Central DC Operation	No
YellowDot ready	No
