| Approval Marks | CB Certificate
|
CE marking
|
ENEC certificate
|
| EAN/UPC - Case | 8719514382220
|
| Numerator - Quantity Per Pack | 1
|

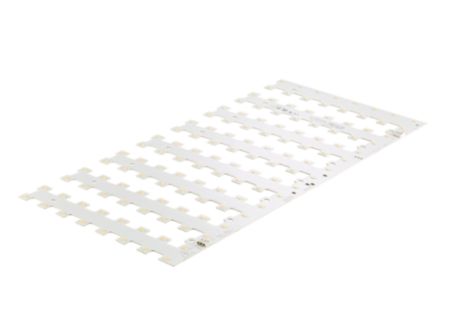

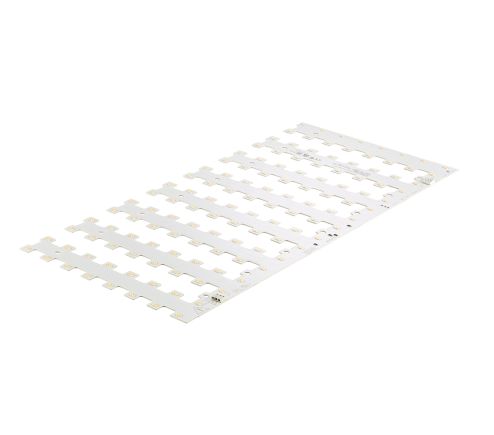

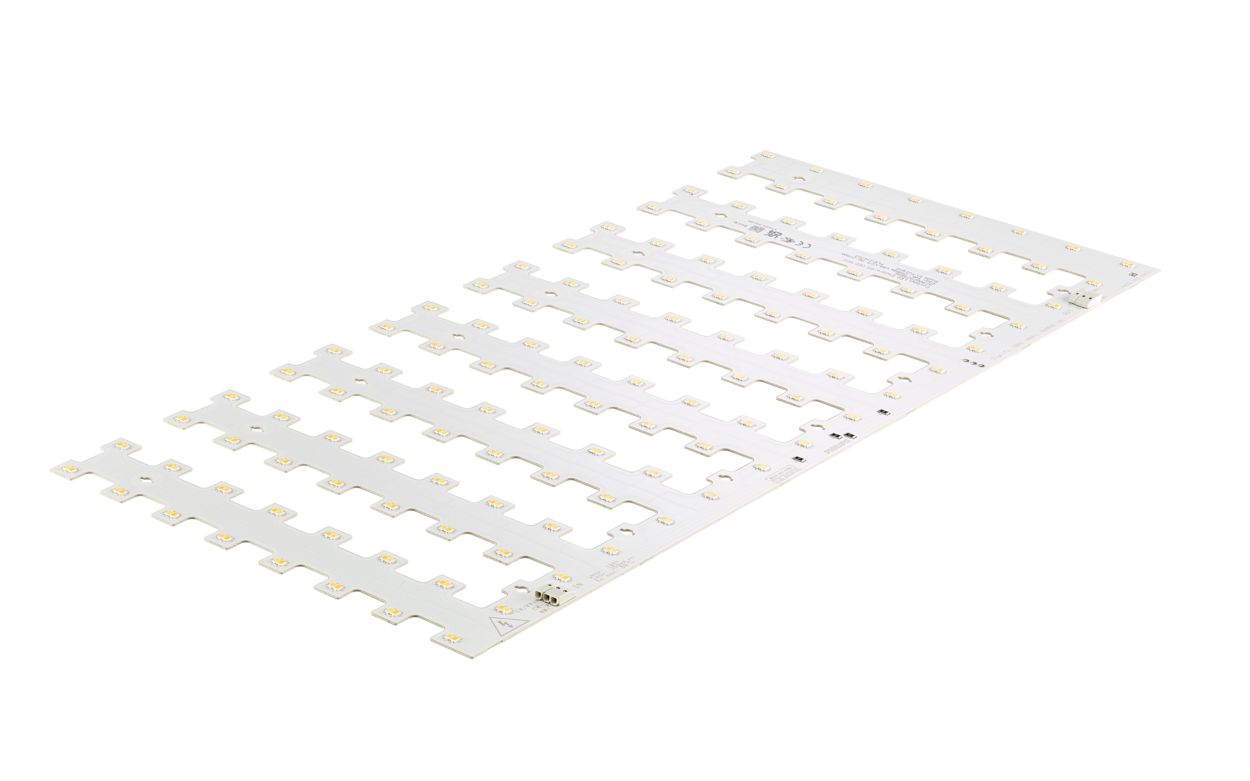

| Order product name | Fortimo LED Square-DS CED HV3
|
| Order code | 929002924506
|
| Full product code | 871951438221300
|
| Full product name | Fortimo LED Square-DS CED HV3
|
| Numerator - Packs per outer box | 20
|
| Material number (12NC) | 929002924506
|
| Lighting Technology | LED
|
| Overall height | 5.5
mm
|
| Overall length | 520.5
mm
|
| Overall width | 260
mm
|
| Dimensions (Height x Width x Depth) | 6 x 260 x 521 mm
|
| T-Case Maximum (Max) | 80
°C
|
| T-Case Lifetime (Max) | 65
°C
|
| Luminous Flux | 2,500
lumen
|
| Life to 70% Lumen Maintenance | 72,000
hour(s)
|
| Correlated Color Temperature (Nom) | Selectable
|
| Color Consistency Initial | 3
|
| Luminous Efficacy (rated) (Nom) | 166
lm/W
|
| Color rendering index (CRI) | 80
|
