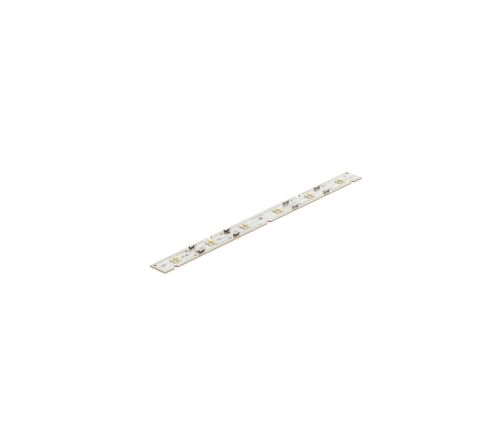

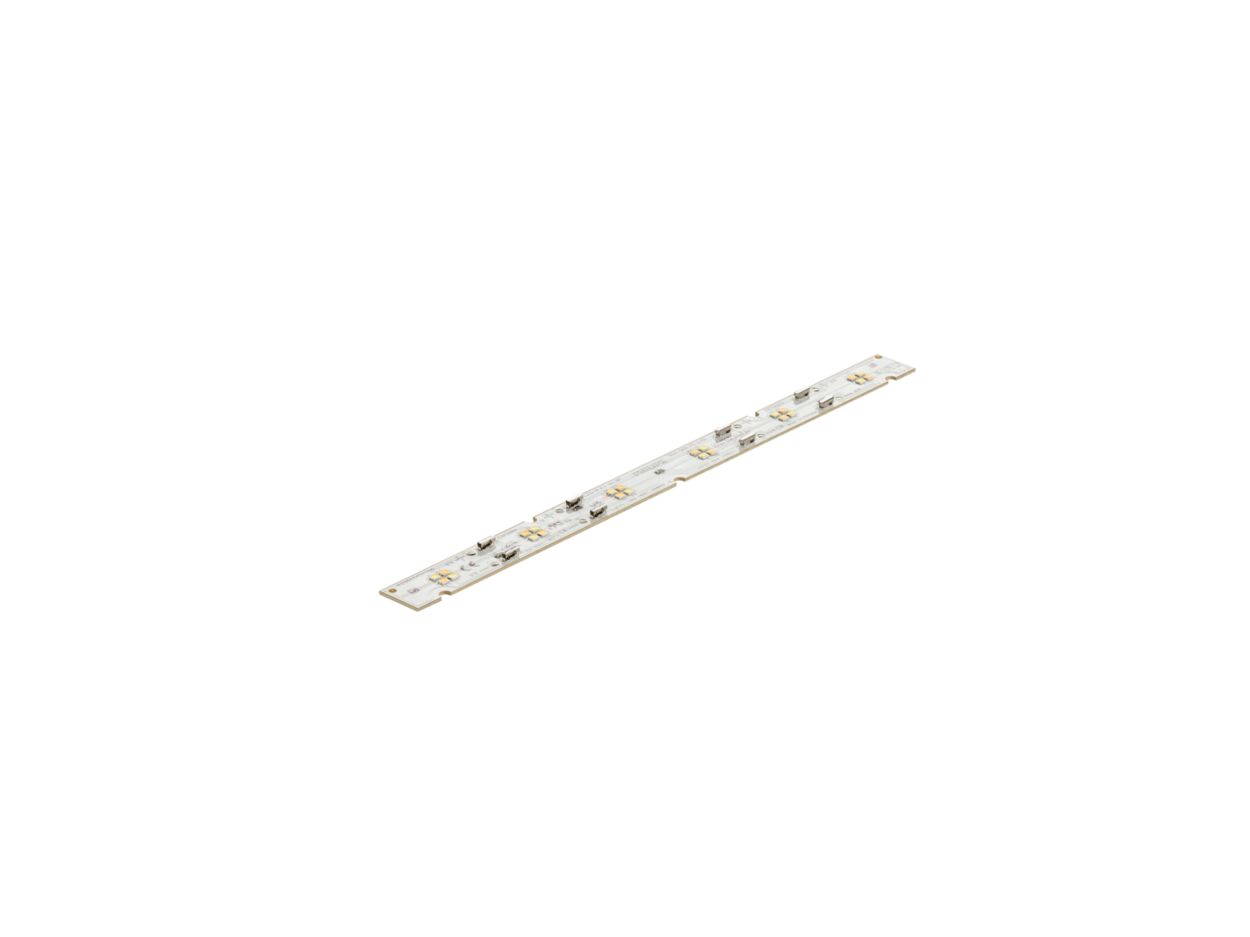

Fortimo LED-R FT 1ft MF 927-965 FC LV5

Specifications Show all

Approval and Application

Energy Efficiency Class	E
Approval Marks	CE marking	ENEC certificate	UL certificate	BIS Certificate
EPREL Registration Number	1,227,071

Product Data

EAN/UPC - Case	8719514447943
Numerator - Quantity Per Pack	1
Order code	929003406206
Order product name	Fortimo LED-R FT 1ft MF 927-965 FC LV5
Full product code	871951444793600
Full product name	Fortimo LED-R FT 1ft MF 927-965 FC LV5
Numerator - Packs per outer box	110
Material number (12NC)	929003406206

General Information

Lighting Technology

LED

Mechanical and Housing

Overall height	4.3 mm
Overall length	279.2 mm
Overall width	20 mm
Dimensions (Height x Width x Depth)	4 x 20 x 279 mm

Temperature

T-Case Maximum (Max)	85 °C
T-Case Lifetime (Max)	70 °C

Light Technical

Luminous Flux	1,010 lumen
Life to 70% Lumen Maintenance	70,000 hour(s)
Correlated Color Temperature (Nom)	Selectable
Color Consistency Initial	3
Luminous Efficacy (rated) (Nom)	134 lm/W
Color rendering index (CRI)	90
