| Approval Marks | CB Certificate
|
CE marking
|
ENEC certificate
|
| EAN/UPC - Case | 8719514390447
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871951439043000
|
| Order code | 929002924606
|

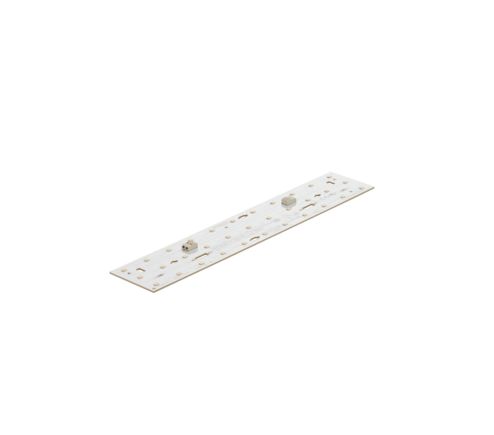

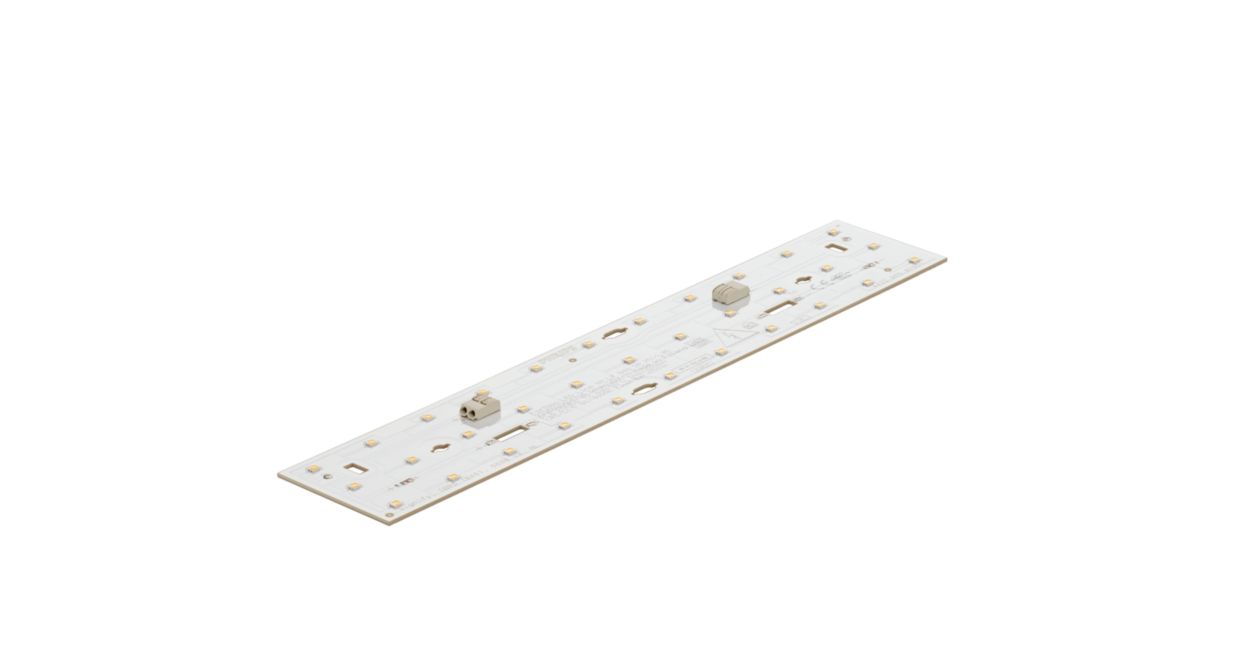

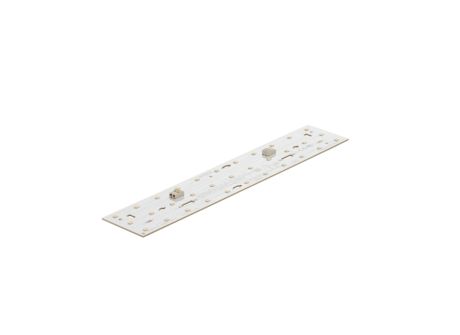

| Order product name | Fortimo LED Line 1ft LF 830 3R HV/LV5
|
| Full product name | Fortimo LED Line 1ft LF 830 3R HV/LV5
|
| Numerator - Packs per outer box | 60
|
| Material number (12NC) | 929002924606
|
| Lighting Technology | LED
|
| Overall height | 6
mm
|
| Overall length | 280
mm
|
| Overall width | 55
mm
|
| Dimensions (Height x Width x Depth) | 6 x 55 x 280 mm
|
| T-Case Maximum (Max) | 80
°C
|
| T-Case Lifetime (Max) | 75
°C
|
| Luminous Flux | 620
lumen
|
| Life to 70% Lumen Maintenance | 70,000
hour(s)
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Color Consistency Initial | 3
|
| Luminous Efficacy (rated) (Nom) | 174
lm/W
|
| Color rendering index (CRI) | 80
|
