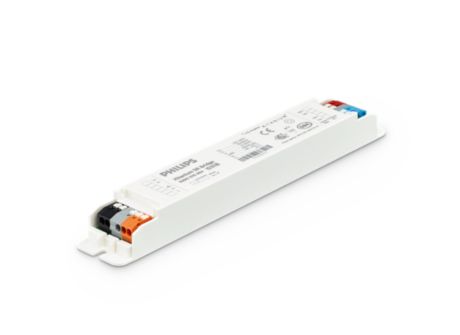

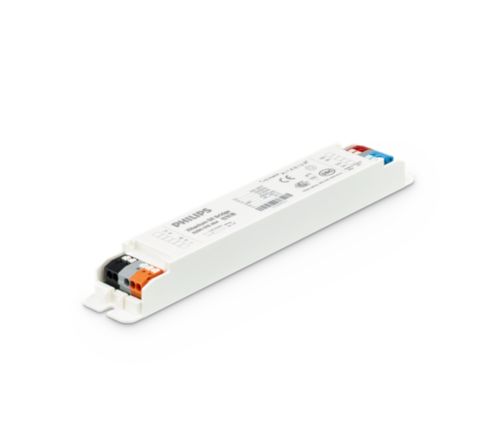

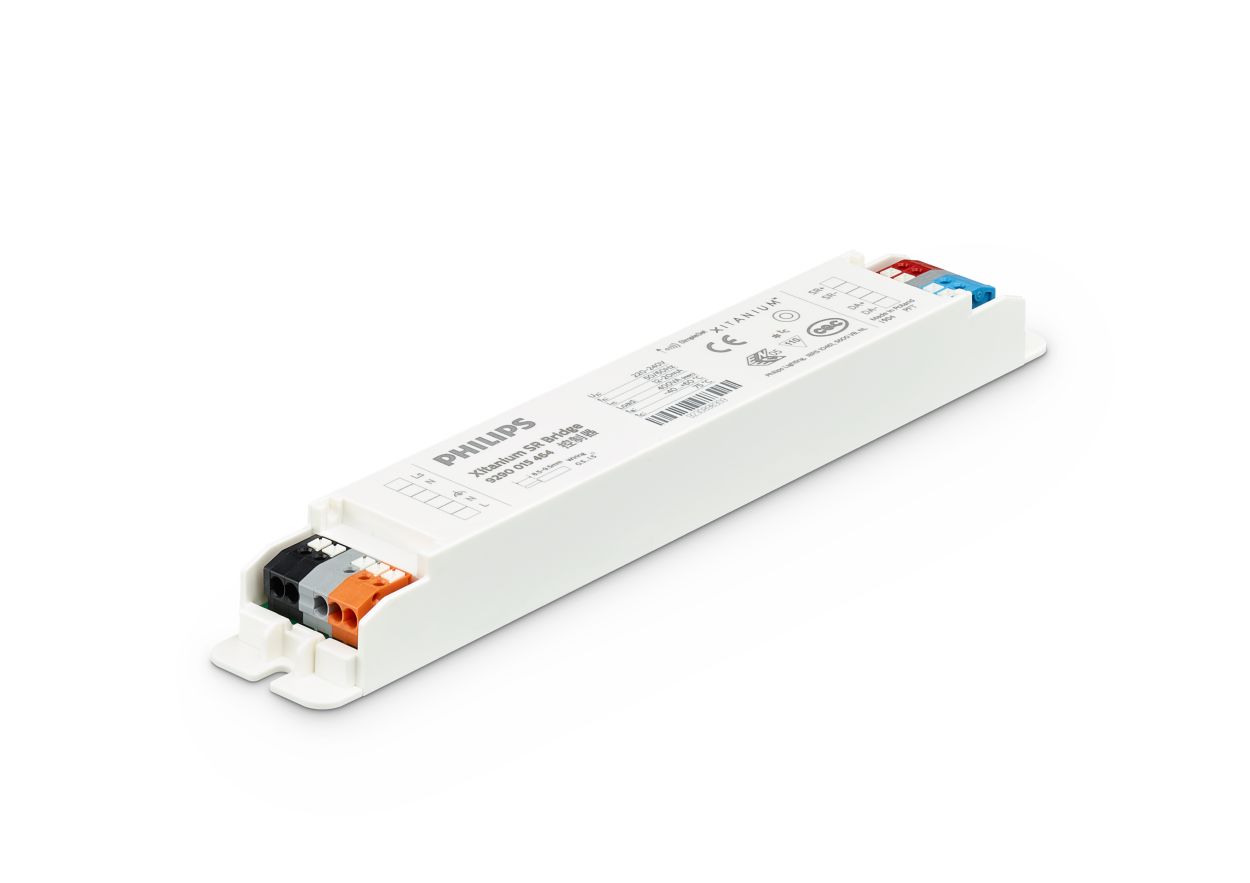

Xitanium SR Bridge built-in

Specifications Show all

Operating and Electrical

Output Power (Max)	0 W
Energy Metering	Yes
Total Harmonic Distortion IEC (Max)	20 %
Output Voltage (Max)	0 V
Output Current Ripple (Max)	4 %
Constant Voltage (CV)	False
Open Circuit Voltage (DC) (Max)	0 V
Line Frequency	50 to 60 Hz
Output Power (Min)	0 W
Input Frequency	50 to 60 Hz
Power Factor 100% Load (Max)	0.9
Output Voltage (Min)	0 V
Diagnostics	False
Protection Level Up (L-N) at 5 kA (Max)	2 kV
Inrush Current Width to 50% of Peak	200 µs
Constant Current (CC)	True
Power Factor (Fraction)	0.9
Protection Level Up (LN-Earth) at 5 kA (Max)	4 kV
Inrush Current Peak (Max)	12 A

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class I
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Isolation Classification	No
Output Current Set Options	No
Open Circuit Protection	Protected
Corridor Mode	False

Product Data

EAN/UPC - Case	8718696719831
Numerator - Quantity Per Pack	1
Full product name	Xitanium SR Bridge built-in
Order product name	Xitanium SR Bridge built-in
Order code	929001546406
Full product code	871869671982400
Numerator - Packs per outer box	32
Material number (12NC)	929001546406

Controls and Dimming

DynaDimmer	No
D4i compliant	No
Constant light output	No
Dimmable	No

General Information

Lighting Technology	LED
Nominal lifetime	100,000 hour(s)

Mechanical and Housing

Overall height	21 mm
Overall length	204 mm
Overall width	30 mm
Dimensions (Height x Width x Depth)	21 x 30 x 204 mm
Product Length	204 mm

Wiring

Input Wire Cross Section (Min)	0.2 mm²
Input Wire Cross Section (Max)	1.5 mm²
Input wire strip length	9 mm to 10 mm mm
Hot Wiring	no

Temperature

T-Case Maximum (Max)	75 °C
T-Case Lifetime (Max)	65 °C
Ambient temperature range	-40 °C to 60 °C

System characteristics

Central DC Operation	No
YellowDot ready	No
