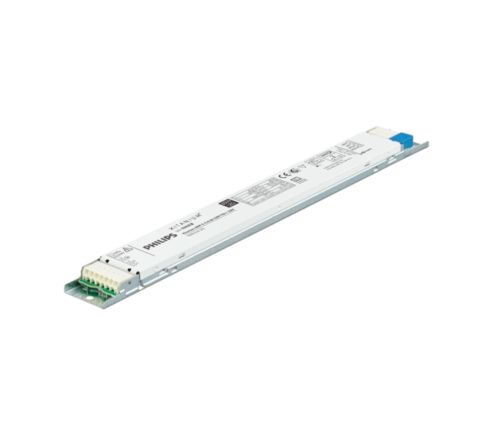

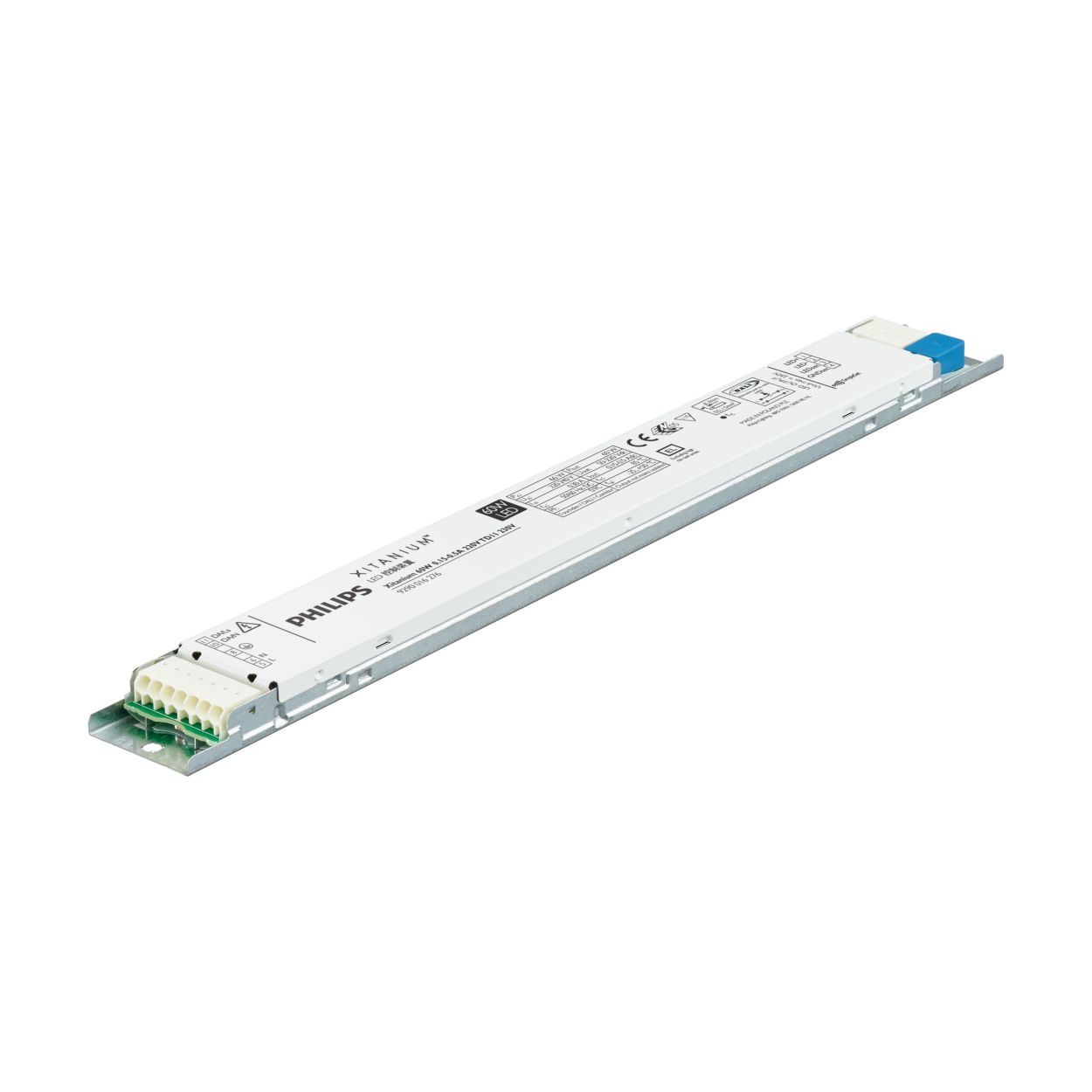

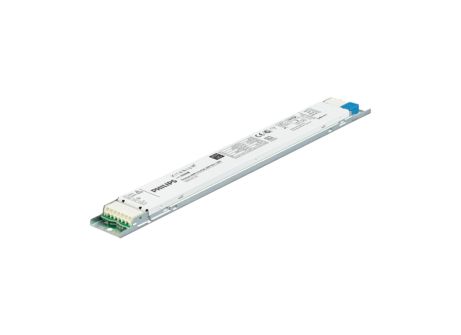

Xitanium 60W 0.15-0.5A 220V TD11 230V

Specifications Show all

General information

Protection class IEC	Safety class I
Constant light output	Programmable
Nominal Lifetime (Nom)	100000 h
Number of Products on MCB (16A Type-C) (Max)	24 piece/unit

Operating and electrical

Input Frequency	50 to 60 Hz
Mains voltage operation (DC)	168-275 V
Total Harmonic Distortion IEC (Max)	20 %
Output Current Ripple (Max)	4 %
Maximum Efficiency at Full Load	93.5 %
Output Current (Max)	500 mA
Output Current Tolerance (Max)	5 %
Mains voltage performance (DC)	186-250 V
Standby Power Consumption (Max)	0.21 W
Power Factor (Min)	0.9
Open Circuit Voltage (DC) (Max)	250 V
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Input current (AC)	0.28 mA
Input current (DC)	0.35
Input Power (Nom)	66 W
Inrush Current Peak (Max)	23 A
Output Power (Max)	60 W
Default output current	150 mA
Inrush Current Width to 50% of Peak	195 µs
Power Factor 100% Load (Max)	0.9
Energy Metering	Yes
Constant Current (CC)	True
Constant Voltage (CV)	False
Diagnostics	True
Output Power (Min)	17 W
Output Current (Min)	150 mA
Output Voltage (Max)	220 V
Output Voltage (Min)	50 V

Wiring

Connector Type Input Terminals	Wago 744
Hot Wiring	no
Connector Type Output Terminals	Wago 744
Output Wire Cross Section (Max)	1.5 mm²
Output Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	2 m
Input Wire Gauge	16-20
Input wire strip length	8 mm to 9 mm
Output wire strip length	8 mm to 9 mm
Input Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Min)	0.5 mm²

System characteristics

Central DC Operation	Yes
YellowDot ready	No

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-25 °C
T-Case Lifetime (Max)	75 °C
T-Case Maximum (Max)	85 °C
Module Temperature Protection	no
Maximum case temperature (in case of failure)	110 °C

Controls and dimming

Dimmable	DALI
Dimming Range	100-1 %
D4i compliant	No
DynaDimmer	No

Mechanical and housing

Product Length	280 mm
Overall length	280 mm
Overall width	30 mm
Overall height	11 mm

Approval and application

IP Classification	IP20  [ Finger-protected]
Isolation Classification	No
Short Circuit Protection	Protected
Over Power Protection	Protected
Open Circuit Protection	Protected
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Corridor Mode	True
Output Current Set Options	LEDset,Programmable,SimpleSet

Application conditions

Ambient temperature range

-25 °C to 50 °C

Product data

Full product code	871951432980500
Order product name	Xitanium 60W 0.15-0.5A 220V TD11 230V
EAN/UPC - Product	8719514329805
Order code	929001696806
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	24
Material Nr. (12NC)	929001696806
