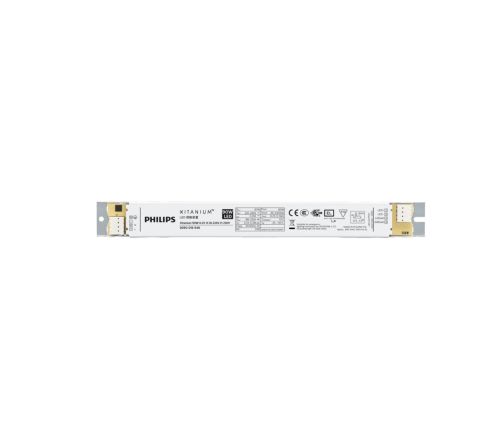

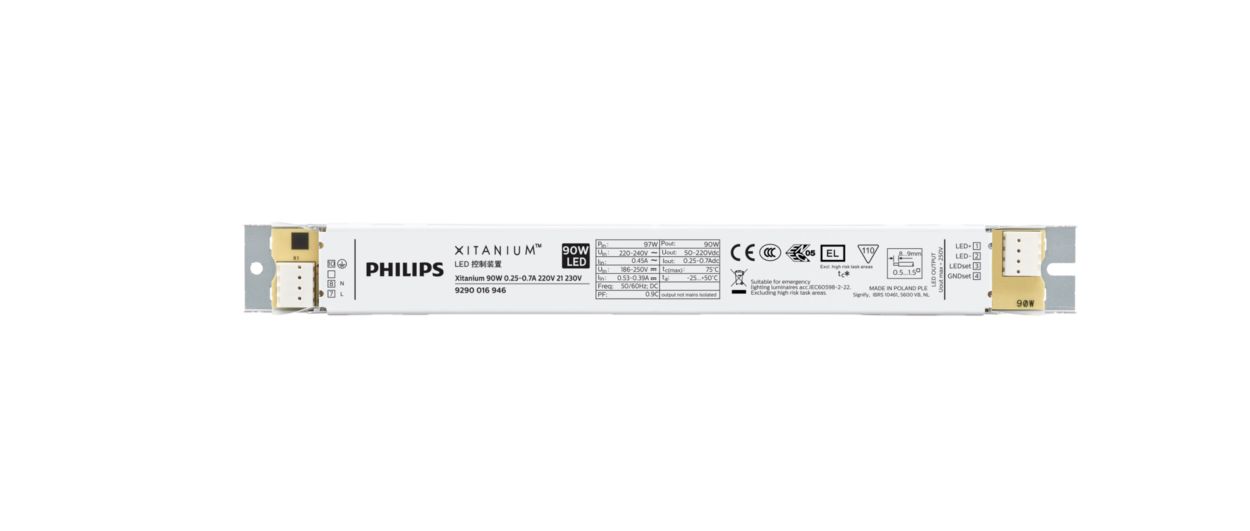

Xitanium 90W 0.25-0.7A 220V 21 230V

Specifications Show all

Operating and Electrical

Input current (DC)	0
Mains voltage performance (DC)	186-250 V
Energy Metering	No
Output Current Ripple (Max)	4 %
Output Voltage (Max)	220 V
Total Harmonic Distortion IEC (Max)	20 %
Constant Voltage (CV)	False
Line Frequency	50 to 60 Hz
Open Circuit Voltage (DC) (Max)	250 V
Output Power (Min)	25 W
Output Voltage (Min)	50 V
Diagnostics	True
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Output Current (Min)	250 mA
Inrush Current Width to 50% of Peak	316 µs
Power Factor 100% Load (Max)	0.9
Number of Products on MCB (16A Type-C) (Max)	19 piece/unit
Maximum Efficiency at Full Load	93.4 %
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Constant Current (CC)	True
Default output current	250 mA
Output Current (Max)	700 mA
Inrush Current Peak (Max)	21 A
Output Power (Max)	90 W
Output Current Tolerance (Max)	5 %
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Mains voltage operation (DC)	168-275 V
Input current (AC)	0.45 mA

Approval and Application

Protection class IEC	Safety class I
Ingress protection code	IP20  [Finger-protected]
Short Circuit Protection	Protected
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Isolation Classification	No
Over Power Protection	Protected
Output Current Set Options	LEDset
Open Circuit Protection	Protected
Corridor Mode	False

Product Data

EAN/UPC - Case	8719514253964
Numerator - Quantity Per Pack	1
Full product code	871951425395700
Full product name	Xitanium 90W 0.25-0.7A 220V 21 230V
Material number (12NC)	929001694606
Order code	929001694606
Order product name	Xitanium 90W 0.25-0.7A 220V 21 230V
Numerator - Packs per outer box	24

Controls and Dimming

DynaDimmer	No
D4i compliant	No
Constant light output	No
Dimmable	No

General Information

Nominal lifetime	100,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Overall length	280 mm
Overall width	30 mm
Housing	Office 280x30x21 4p4p_upper
Dimensions (Height x Width x Depth)	21 x 30 x 280 mm
Product Length	280 mm
Overall height	21 mm

Wiring

Output Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	1.2 m
Input Wire Cross Section (Min)	0.5 mm²
Output Wire Cross Section (Max)	1.5 mm²
Connector Type Input Terminals	Wago 744
Input Wire Cross Section (Max)	1.5 mm²
Output wire strip length	8 mm to 9 mm mm
Input wire strip length	8 mm to 9 mm mm
Hot Wiring	no
Input Wire Gauge	16-20
Connector Type Output Terminals	Wago 744

Temperature

T-Case Maximum (Max)	75 °C
Maximum case temperature (in case of failure)	110 °C
T-Case Lifetime (Max)	65 °C
Ambient temperature range	-25 °C to 50 °C
Module Temperature Protection	no

System characteristics

YellowDot ready	No
Central DC Operation	Yes
