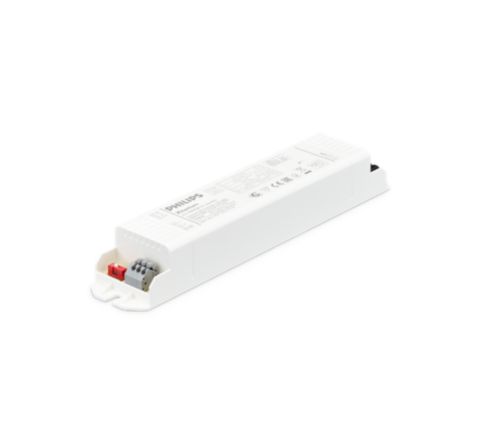

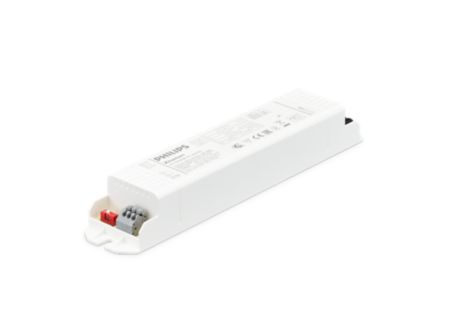

Xitanium 52W 0.3/0.35A 150V 230V

Specifications Show all

General information

Protection class IEC	Safety class I
Constant light output	No
Nominal Lifetime (Nom)	50000 h
Number of Products on MCB (16A Type-C) (Max)	31 piece/unit

Operating and electrical

Input Frequency	50 to 60 Hz
Mains voltage operation (DC)	168-275 V
Total Harmonic Distortion IEC (Max)	15 %
Output Current Ripple (Max)	4 %
Maximum Efficiency at Full Load	90.7 %
Output Current (Max)	350 mA
Output Current Tolerance (Max)	5 %
Mains voltage performance (DC)	186-250 V
Standby Power Consumption (Max)	0 W
Power Factor (Min)	0.9
Open Circuit Voltage (DC) (Max)	180 V
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Input current (AC)	0.29 mA
Input current (DC)	0
Inrush Current Peak (Max)	19 A
Output Power (Max)	52.5 W
Default output current	300 mA
Inrush Current Width to 50% of Peak	280 µs
Power Factor 100% Load (Max)	0.9
Energy Metering	No
Constant Current (CC)	True
Constant Voltage (CV)	False
Diagnostics	False
Output Power (Min)	30 W
Output Current (Min)	300 mA
Output Voltage (Max)	150 V
Output Voltage (Min)	100 V

Wiring

Connector Type Input Terminals	250 manual connector  [ Suitable for manual wiring and easy release button]
Hot Wiring	no
Connector Type Output Terminals	250 manual connector  [ Suitable for manual wiring and easy release button]
Output Wire Cross Section (Max)	1.5 mm²
Output Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	0.6 m
Input Wire Gauge	0
Input wire strip length	8.5 mm to 9.5 mm
Output wire strip length	8.5 mm to 9.5 mm
Input Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Min)	0.5 mm²

System characteristics

Central DC Operation	Yes
YellowDot ready	No

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-25 °C
T-Case Lifetime (Max)	75 °C
T-Case Maximum (Max)	75 °C
Module Temperature Protection	no
Maximum case temperature (in case of failure)	110 °C

Controls and dimming

Dimmable	No
D4i compliant	No
DynaDimmer	No

Mechanical and housing

Product Length	211.5 mm
Housing	LH211 DipSwitch
Housing Dimensions	211.5 x 40 x 30
Overall length	211.5 mm
Overall width	40 mm
Overall height	30 mm

Approval and application

IP Classification	IP20  [ Finger-protected]
Isolation Classification	SELV
Short Circuit Protection	Protected
Over Power Protection	NO
Open Circuit Protection	Protected
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Corridor Mode	True
Output Current Set Options	DipSwitch

Application conditions

Ambient temperature range

-25 °C to 50 °C

Product data

Full product code	871869965788800
Order product name	Xitanium 52W 0.3/0.35A 150V 230V
EAN/UPC - Product	8718699657888
Order code	929001487806
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	20
Material Nr. (12NC)	929001487806
Net Weight (Piece)	0.154 kg
