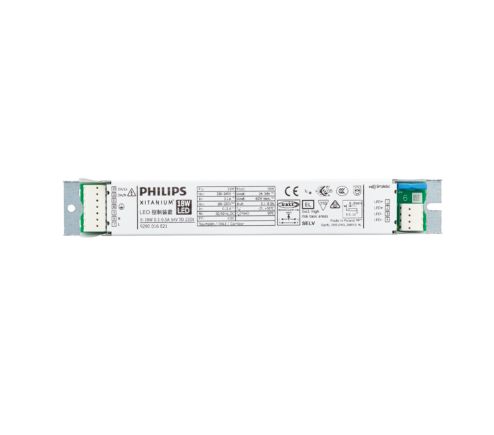

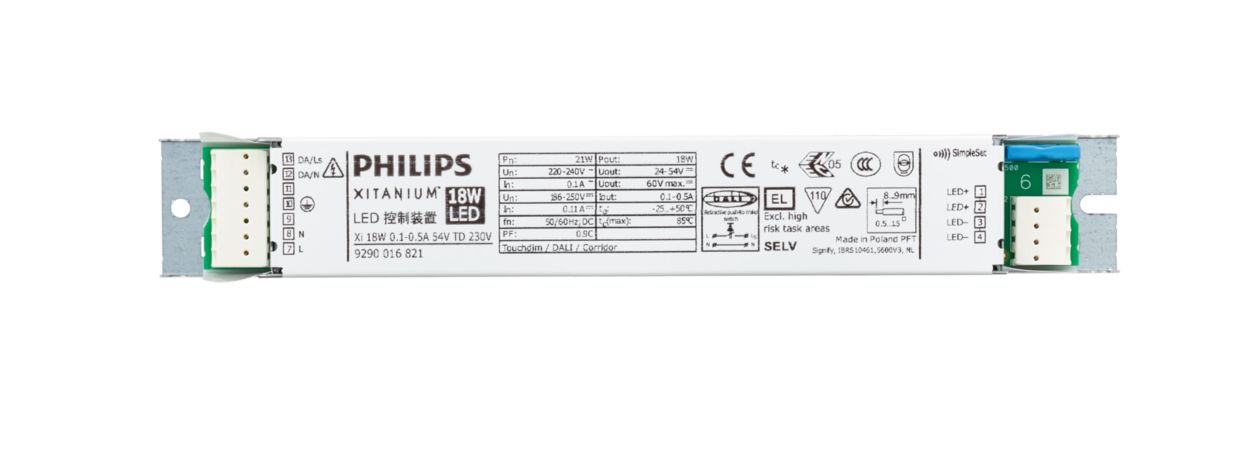

Xitanium 18W 0.1-0.5A 54V TD 230V

Specifications Show all

Operating and Electrical

Energy Metering	Yes
Input current (DC)	0.12
Mains voltage performance (DC)	186-253 V
Output Voltage (Max)	54 V
Total Harmonic Distortion IEC (Max)	20 %
Output Current Ripple (Max)	4 %
Constant Voltage (CV)	False
Open Circuit Voltage (DC) (Max)	60 V
Line Frequency	50 to 60 Hz
Output Power (Min)	6 W
Power Consumption	100 W
Output Voltage (Min)	24 V
Diagnostics	True
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Output Current (Min)	100 mA
Power Factor 100% Load (Max)	0.9
Number of Products on MCB (16A Type-C) (Max)	24 piece/unit
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Maximum Efficiency at Full Load	86.9 %
Constant Current (CC)	True
Default output current	100 mA
Output Current (Max)	500 mA
Inrush Current Peak (Max)	20.4 A
Output Current Tolerance (Max)	5 %
Output Power (Max)	18 W
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Mains voltage operation (DC)	168-278 V
Inrush Current Width to 50% of Peak	195 µs
Input current (AC)	0.1 mA

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class I
Short Circuit Protection	Protected
Isolation Classification	No
Output Current Set Options	LEDset, programmable, SimpleSet
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Over Power Protection	Protected
Open Circuit Protection	Protected
Corridor Mode	True

Product Data

EAN/UPC - Case	8718699698379
Numerator - Quantity Per Pack	1
Full product code	871869969836200
Order code	929001682106
Full product name	Xitanium 18W 0.1-0.5A 54V TD 230V
Material number (12NC)	929001682106
Order product name	Xitanium 18W 0.1-0.5A 54V TD 230V
Numerator - Packs per outer box	20

Controls and Dimming

Dimming Range	100-1 %
D4i compliant	No
Constant light output	Programmable
Dimmable	DALI
DynaDimmer	No

General Information

Nominal lifetime	100,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Overall length	210 mm
Overall width	30 mm
Housing	Office 210x30x21 7p4p NFC right
Dimensions (Height x Width x Depth)	21 x 30 x 210 mm
Product Length	210 mm
Overall height	21 mm

Wiring

Output Wire Cross Section (Min)	0.5 mm²
Input Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	2 m
Output Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Max)	1.5 mm²
Connector Type Input Terminals	Wago 744
Output wire strip length	8 mm to 9 mm mm
Hot Wiring	no
Input wire strip length	8 mm to 9 mm mm
Input Wire Gauge	16-20
Connector Type Output Terminals	Wago 744

Temperature

T-Case Maximum (Max)	85 °C
Maximum case temperature (in case of failure)	110 °C
T-Case Lifetime (Max)	75 °C
Ambient temperature range	-25 °C to 50 °C
Module Temperature Protection	no

System characteristics

YellowDot ready	No
Central DC Operation	Yes
