| Ingress protection code | IP42
[Wire-protected, drip-proof up to 15°] |
| Approval Marks | CE marking
|
| EAN/UPC - Case | 8719514336063
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871951433604900
|
| Order code | 929002146106
|
| Order product name | EasyAir Occu-DL ZGP sensor MC
|

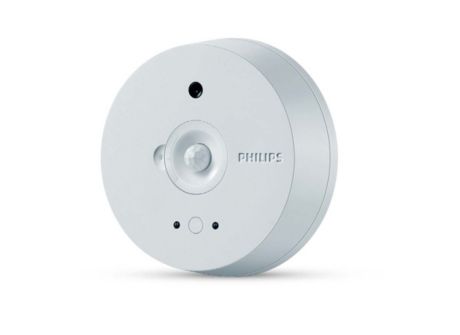

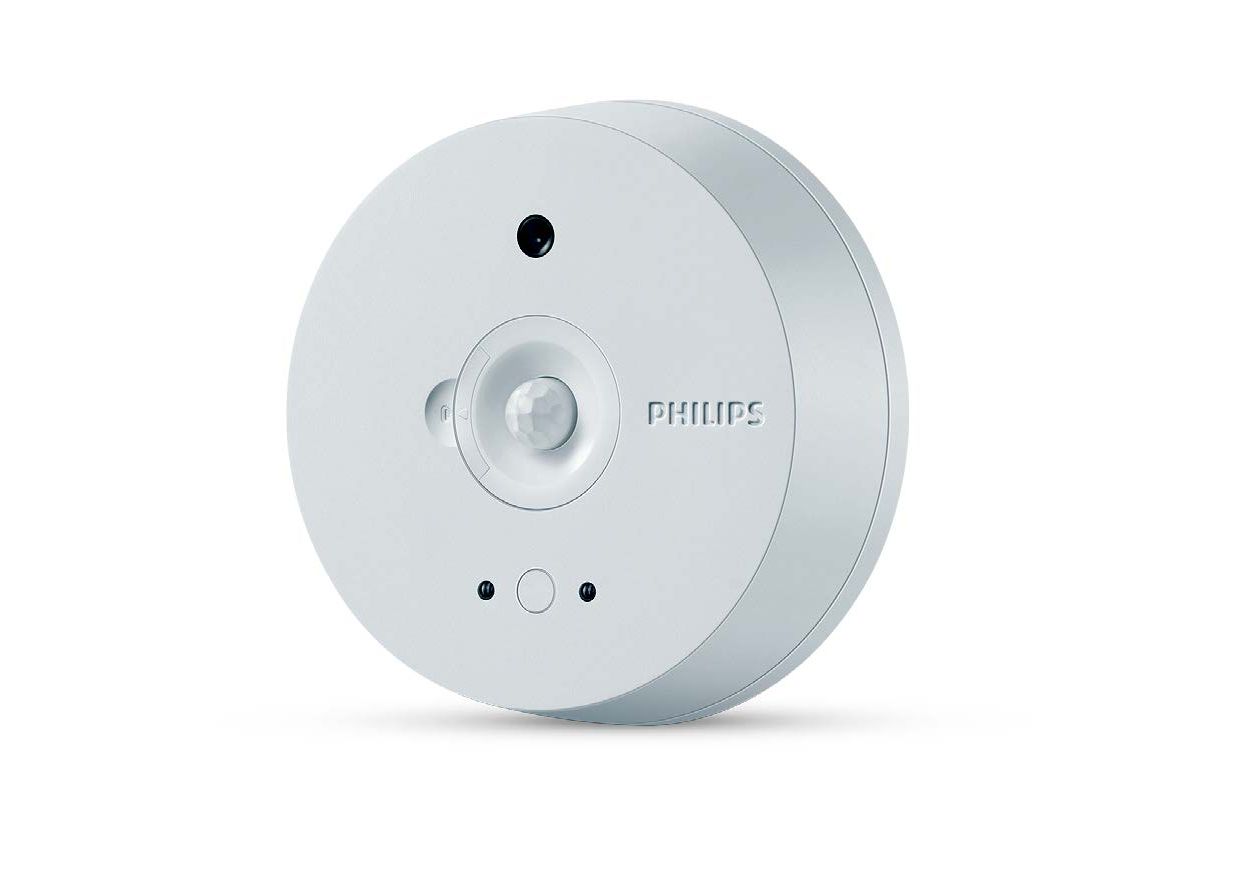

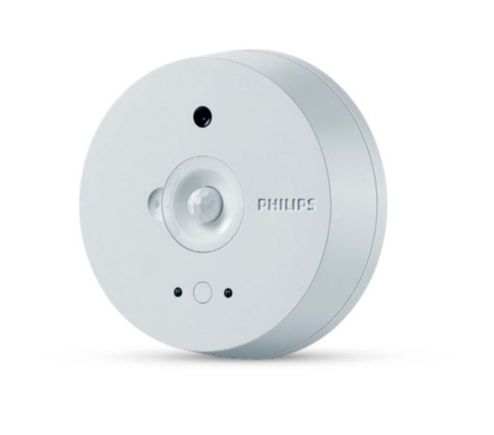

| Full product name | EasyAir Occu-DL ZGP sensor MC
|
| Numerator - Packs per outer box | 10
|
| Material number (12NC) | 929002146106
|
| Occupancy Technology | Yes
|
| Detection area | 7.2x5.4 (major movement) at 2.5m; 5.4x3.6 (minor movement) m
m
|
| Description | Office sensor for remote placement
|
| Features | MasterConnect enabled
|
| Lighting Technology | LED
|
| Overall height | 30
mm
|
| Overall length | 87
mm
|
| Overall width | 87
mm
|
| Housing Color | White
|
| Dimensions (Height x Width x Depth) | 30 x 87 x 87 mm
|
| Ambient temperature range | -5 °C to 45 °C
|
