| Inrush current | 22
A
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220 to 240
V
|
| Inrush time | 0.275
ms
|
| Power Consumption | 39
W
|
| Number of products on MCB of 16 A type B | 24
|
| Input Frequency | 50 to 60
Hz
|
| Connection | Flying leads/wires
|
| Power Factor (Fraction) | 0.9
|
| Numerator - Quantity Per Pack | 1
|

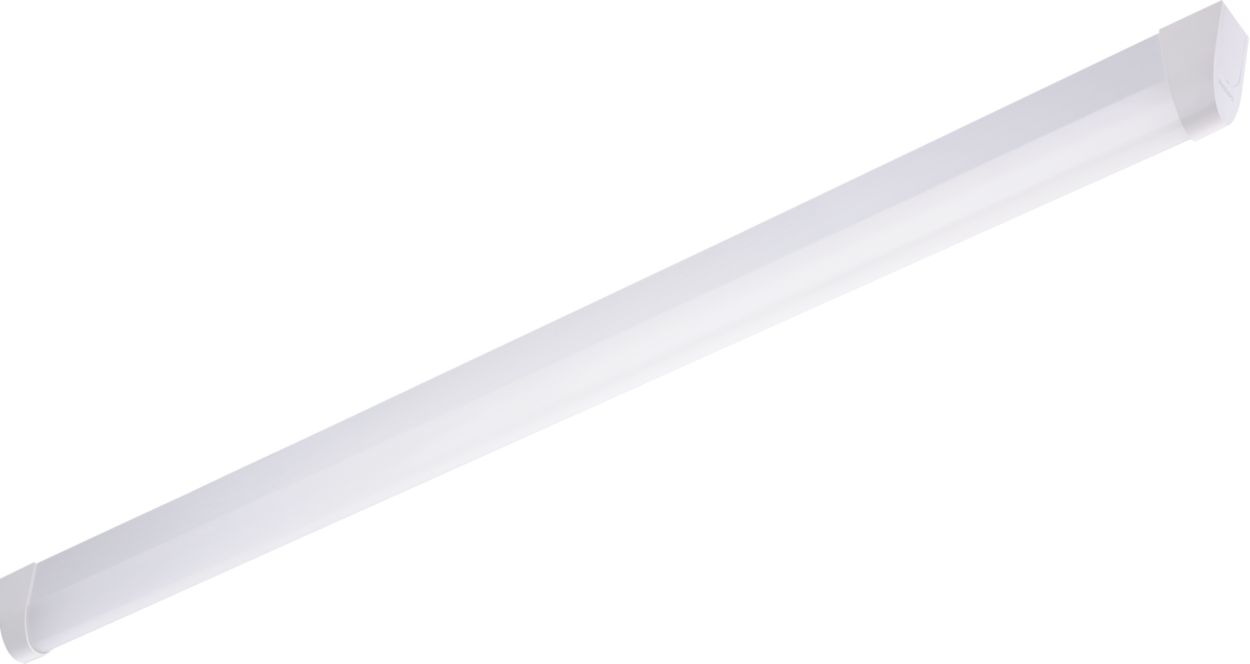

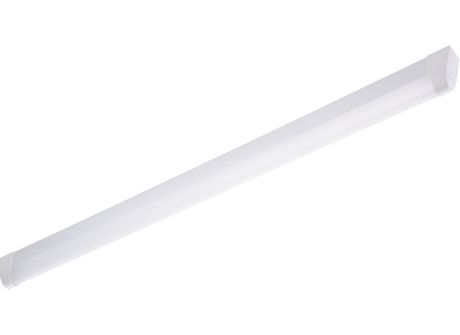

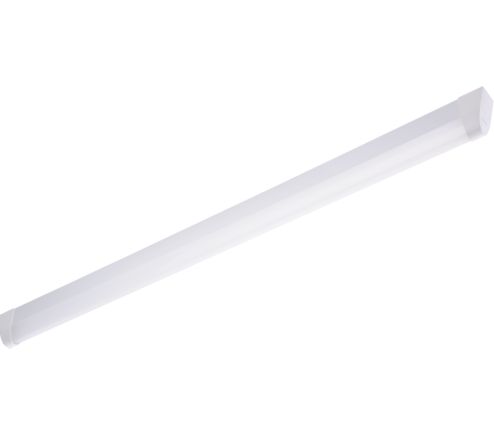

| Order product name | CR388C LED40 NW L120 PSD
|
| Full product code | 911401516741
|
| Order code | 911401516741
|
| Full product name | CR388C LED40 NW L120 PSD
|
| Numerator - Packs per outer box | 1
|
| Material number (12NC) | 911401516741
|
| Median useful life L70B50 | 50,000
hour(s)
|
| Median useful life L80B50 | 45,000
hour(s)
|
| Median useful life L90B50 | 40,000
hour(s)
|
| EU RoHS compliant | Yes
|
| Protection class IEC | Safety class I
|
| Ingress protection code | IP40
[Wire-protected] |
| Warranty period | 3 years
|
| Mech. impact protection code | IK03
[0.3 J] |
| CE mark | -
|
| Glow-wire test | Temperature 750 °C, duration 5 s
|
| Driver/power unit/transformer | Power supply unit (ON/OFF)
|
| Constant light output | No
|
| Dimmable | Yes
|
| Control interface | DALI
|
| Light source replaceable | No
|
| Light source engine type | LED
|
| Driver included | Yes
|
| Number of gear units | 1 unit
|
| Overall height | 84
mm
|
| Reflector material | Steel
|
| Overall length | 1,200
mm
|
| Optic material | Polycarbonate
|
| Overall width | 45
mm
|
| Housing Color | White
|
| Optical cover/lens material | Polycarbonate
|
| Dimensions (Height x Width x Depth) | 84 x 45 x 1200 mm
|
| Optical cover/lens finish | Opal
|
| Fixation material | Stainless steel
|
| Housing Material | Polycarbonate
|
| Maximum dim level | 1%
|
| Initial chromaticity | SDCM<5
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-10%
|
| Ambient temperature range | 0 to +35 °C
|
| Luminous Flux | 4,500
lumen
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Optic type | Symmetrical
|
| Luminaire light beam spread | 120°
|
| Color rendering index (CRI) | >80
|
| Luminous Efficacy (rated) (Nom) | 190
lm/W
|
| Light source color | 840 neutral white
|
| Optical cover/lens type | Polycarbonate
|
