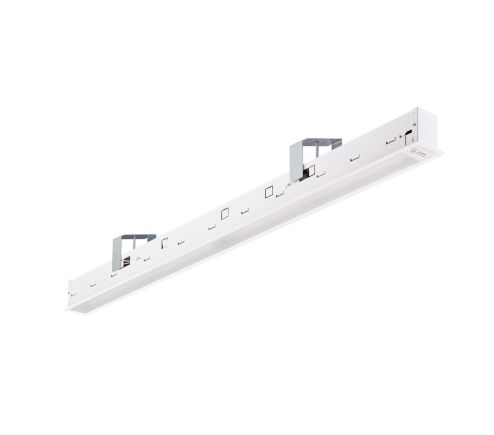

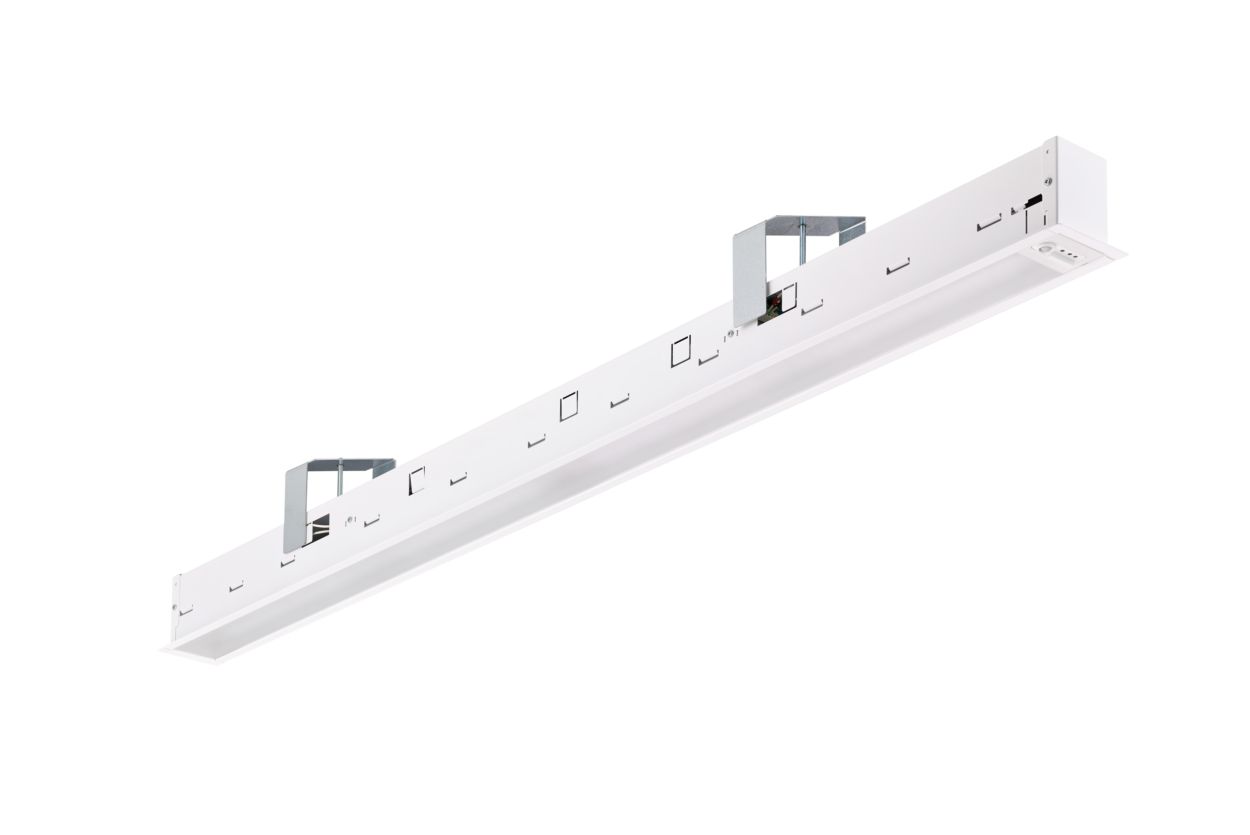

RC531B LED25S/TW9 SIA W8L120 VPC U4 PI3

Specifications Show all

Operating and Electrical

Inrush current	15.2 A
Line Frequency	50 to 60 Hz
Input Voltage	220 to 240 V
Number of products on MCB of 16 A type B	24
Power Consumption	27 W
Inrush time	292 ms
Connection	Push-in connector 3-pole
Power Factor (Fraction)	0.9
Cable	-
Input Frequency	50 to 60 Hz

Over Time Performance (IEC Compliant)

Lumen maintenance at median useful life* 50000 h	L90
Control gear failure rate at median useful life 50000 h	5 %
Lumen maintenance at median useful life* 100000 h	L80

Approval and Application

EU RoHS compliant	Yes
Photobiological risk	Photobiological risk group 1 @200mm to EN62778
Flammability mark	For mounting on normally flammable surfaces
Protection class IEC	Safety class I
Ingress protection code	IP20  [Finger-protected]
Warranty period	5 years
Mech. impact protection code	IK02  [0.2 J standard]
CE mark	Yes
Sustainability rating	-
Glow-wire test	Temperature 650 °C, duration 30 s
ENEC mark	ENEC mark

Product Data

EAN/UPC - Case	8719514973268
Numerator - Quantity Per Pack	1
Full product name	RC531B LED25S/TW9 SIA W8L120 VPC U4 PI3
Order code	910505103290
Full product code	871951497326800
Numerator - Packs per outer box	1
Material number (12NC)	910505103290
Order product name	RC531B LED25S/TW9 SIA W8L120 VPC U4 PI3

Controls and Dimming

Driver/power unit/transformer	Power supply unit with DALI and SystemReady interface, Interact ready
Constant light output	No
Dimmable	Yes
Control interface	InterAct office

Mechanical and Housing

Reflector material	-
Overall length	1,197 mm
Optic material	-
Overall width	75 mm
Housing Color	White RAL 9003
Optical cover/lens material	Polycarbonate
Dimensions (Height x Width x Depth)	90 x 75 x 1197 mm
Optical cover/lens finish	Opal
Fixation material	Steel
Housing Material	Steel
Overall height	90 mm

General Information

Light source replaceable	No
Value ladder	Specification
Connectivity	Interact Ready
Product family code	RC534B  [TrueLine Recessed Standalone Asym]
Driver included	Yes
Number of gear units	1 unit
Lighting Technology	LED

Application Conditions

Suitable for random switching	No
Maximum dim level	1%
Performance ambient temperature Tq	25 °C

Initial Performance (IEC Compliant)

Initial chromaticity	(0.38, 0.38) SDCM <3
Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

+10 to +40 °C

Light Technical

Luminous Flux	2,500 lumen
Stroboscopic effect value (SVM)	0.4
Beam angle of light source	120 degree(s)
Saturated Red (R9)	>50
Correlated Color Temperature (Nom)	Tunable white 2700-6500
Optic type	Wide beam
Unified glare rating CEN	28
Luminaire light beam spread	108°
Color rendering index (CRI)	>90
Flickering value (PstLM)	1
Luminous Efficacy (rated) (Nom)	93 lm/W
Light source color	Tunable white
