        Product family information

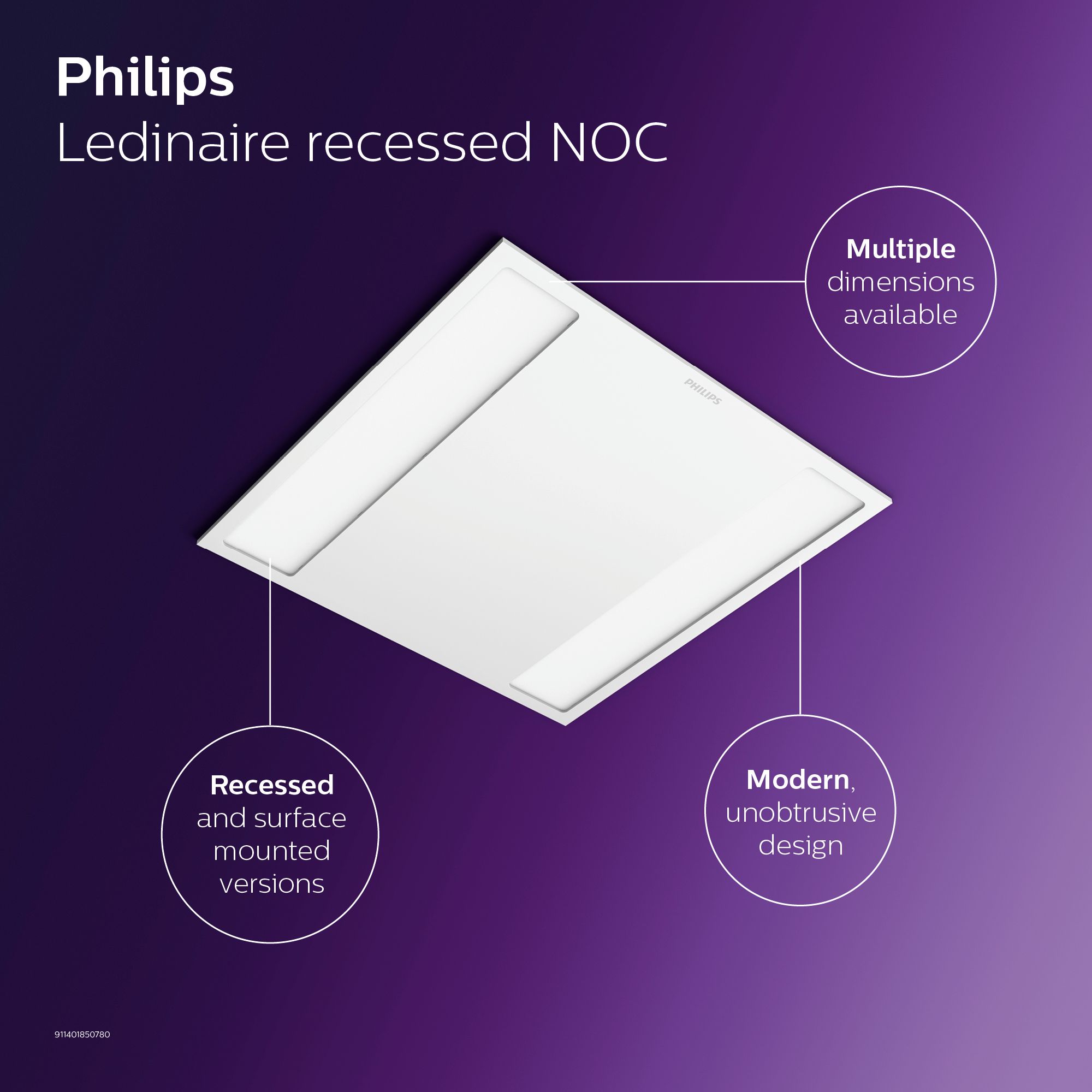

        Philips Ledinaire recessed (RC060B) is a range of popular off-the-shelf LED luminaires that come with Philips high quality levels at a competitive price. Reliable, energy efficient and affordable, Ledinaire LED recessed lights are available in a range of dimensions from 600 x 600 mm to 300 x 1200 mm. This makes Ledinaire Recessed LED lighting panels perfect for a wide range of applications from classrooms to corridors – just what you need.

        Benefits

        Philips quality and reliability
        Energy saving
        Diffuse, comfortable light

        Features

        Recessed and surface-mounted versions
        Modern, unobtrusive design
        Easy connector for faster installation
        Energy efficient up to 100 lm/W
        Long lifetime of 50,000 hours @L70
        Non-office compliant (NOC) versions available

        Applications

        Offices
        Healthcare
        Education
        Downloads
        Visuals
        Leaflets
        Product family details
        General
        Type
        • RC060B (600-module version)
        • RC062B (625-module version)
        Ceiling type
        • Exposed T-bar ceiling
        Module size
        • 600 x 600, 625 x 625 and 300 x 1200 mm
        Light source
        • Non-replaceable and non-serviceable LED module
        Power
        • 36 W
        Beam angle
        • 2 x 56º = 112º
        Luminous flux
        • 3200 lm
        Correlated Color Temperature
        • 3000 K (Warm white)
        • 4000 K (Neutral white)
        Color Rendering Index
        • > 80
        Lumen maintenance at median useful life* 50000 h
        • L70
        Control gear failure rate at median useful life 50000 h
        • 7.5%
        Performance Ambient Temperature Tq
        • +25 ºC
        Operating temperature range
        • +10 to +40 ºC
        Driver
        • Built-in, non-replaceable and non-serviceable LED driver
        Mains voltage
        • 220-240 V / 50-60 Hz
        Dimming
        • Not dimmable
        Material
        • Painted steel
        Color
        • White (RAL9003)
        Optical cover
        • PMMA diffuser
        Connection
        • Push-in connector with pull relief
        Maintenance
        • No internal cleaning required
        • Light source and driver are non-serviceable
        Installation
        • Lay-in fixation
        • Through-wiring possible
        • Installation without removing lamp and cover
        Remarks
        • Not released for emergency lighting
