| Number of light sources | 1 pc
|
| Lamp family code | LED20S
[ LED Module, system flux 2000 lm] |
| Beam angle of light source | 120
°
|
| Light source color | Premium white with CRI ≥90
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | Power supply unit with DALI and SystemReady interface, InterAct ready
|
| Driver included | Yes
|
| Optic type | Narrow beam
|
| Optical cover/lens type | Clear glass
|
| Luminaire light beam spread | 10°
|
| Control interface | DALI
|
| Connection | Push-in connector and pull relief
|
| Cable | -
|
| Protection class IEC | Safety class II
|
| Glow-wire test | Temperature 650 °C, duration 5 s
|
| Flammability mark | For mounting on normally flammable surfaces
|
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| UL mark | -
|
| Warranty period | 5 years
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB of 16 A type B | 24
|
| EU RoHS compliant | Yes
|
| Service tag | Yes
|

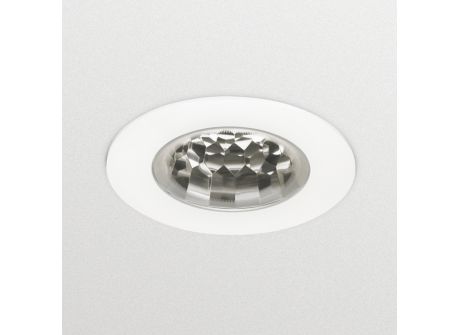

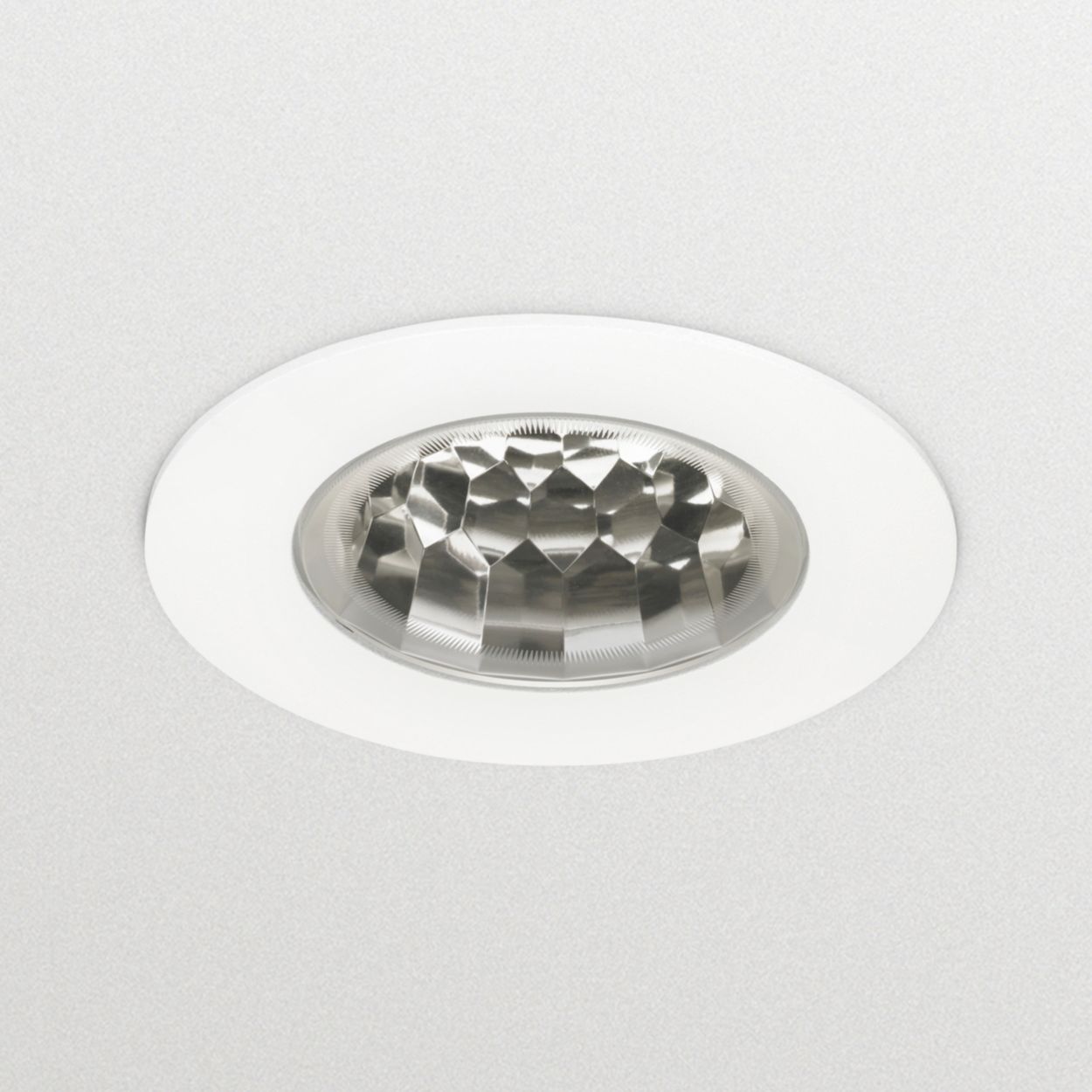

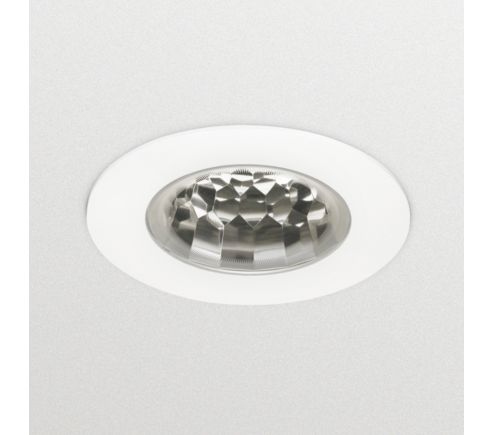

| Product family code | RS740B
[ LuxSpace Accent Compact G3] |
| Unified glare rating CEN | Not applicable
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| Control signal voltage | 0-16 V DC DALI
|
| Initial CLO power consumption | -
W
|
| Average CLO power consumption | -
W
|
| Inrush current | 20.4
A
|
| Inrush time | 195
ms
|
| Power Factor (Min) | 0.9
|
| Dimmable | Yes
|
| Housing Material | Aluminum
|
| Reflector material | Polycarbonate aluminum coated
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | -
|
| Optical cover/lens finish | Clear
|
| Overall height | 126
mm
|
| Overall diameter | 106
mm
|
| Color | White RAL 9003
|
| Dimensions (Height x Width x Depth) | 126 x NaN x NaN mm (5 x NaN x NaN in)
|
| Ingress protection code | IP20
[ Finger-protected] |
| Mech. impact protection code | IK02
[ 0.2 J standard] |
| Initial luminous flux (system flux) | 2000
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 100
lm/W
|
| Init. Corr. Color Temperature | 3000
K
|
| Init. Color Rendering Index | ≥90
|
| Initial chromaticity | (0.422, 0.386) SDCM <2
|
| Initial input power | 20,5
W
|
| Power consumption tolerance | +/-10%
|
| Control gear failure rate at median useful life 50000 h | 5
%
|
| Control gear failure rate at median useful life 100000 h | 5
%
|
| Lumen maintenance at median useful life* 50000 h | L80
|
| Ambient temperature range | 0 to +35 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dim level | 1%
|
| Suitable for random switching | Yes
|
| Full product code | 871869697309700
|
| Order product name | RS740B LED20S/PW930 PSED-VLC-E NB WH
|
| EAN/UPC - Product | 8718696973097
|
| Order code | 910500459047
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 1
|
| Material Nr. (12NC) | 910500459047
|
| Net Weight (Piece) | 0.800
kg
|
