| Lamp family code | LED650
[ LED module 65000 lm] |
|
| Light source color | 740 neutral white
|
|
| Light source replaceable | Yes
|
|
| Number of gear units | 2 units
|
|
| Driver/power unit/transformer | Power supply unit
|
|
| Driver included | Yes
|
|
| Optical cover/lens type | Flat glass
|
|
| Luminaire light beam spread | 157° x 111°
|
|
| Control interface | -
|
|
| Connection | Connection unit 5-pole
|
|
| Cable | -
|
|
| Protection class IEC | Safety class I
|
|
| Flammability mark | For mounting on normally flammable surfaces
|
|
| CE mark | CE mark
|
|
| ENEC mark | ENEC mark
|
|
| Warranty period | 5 years
|
|
| Optic type outdoor | Distribution medium 10
|
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
* At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
|
| Number of products on MCB of 16 A type B | 1
|
|
| RoHS mark | RoHS mark
|
|
| Light source engine type | LED
|
|
| Serviceability class | Class A, luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge protection device, optics, front cover and mechanical parts
|
|
| Product family code | BVP651
[ ClearFlood large] |
| Upward light output ratio | 0
|
| Standard tilt angle posttop | 0°
|
| Standard tilt angle side entry | 0°
|
| Input Voltage | 220 to 240
V
|
| Input Frequency | 50 to 60
Hz
|
| Inrush current | 340
A
|
| Inrush time | 0.022
ms
|
| Power Factor (Min) | 0.97
|
| Dimmable | No
|
| Housing Material | Aluminum die-cast
|
| Reflector material | -
|
| Optic material | Acrylate
|
| Optical cover/lens material | Glass
|
| Fixation material | Steel
|

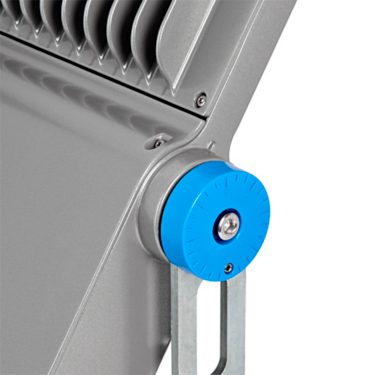

| Mounting device | Mounting bracket adjustable
|
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|

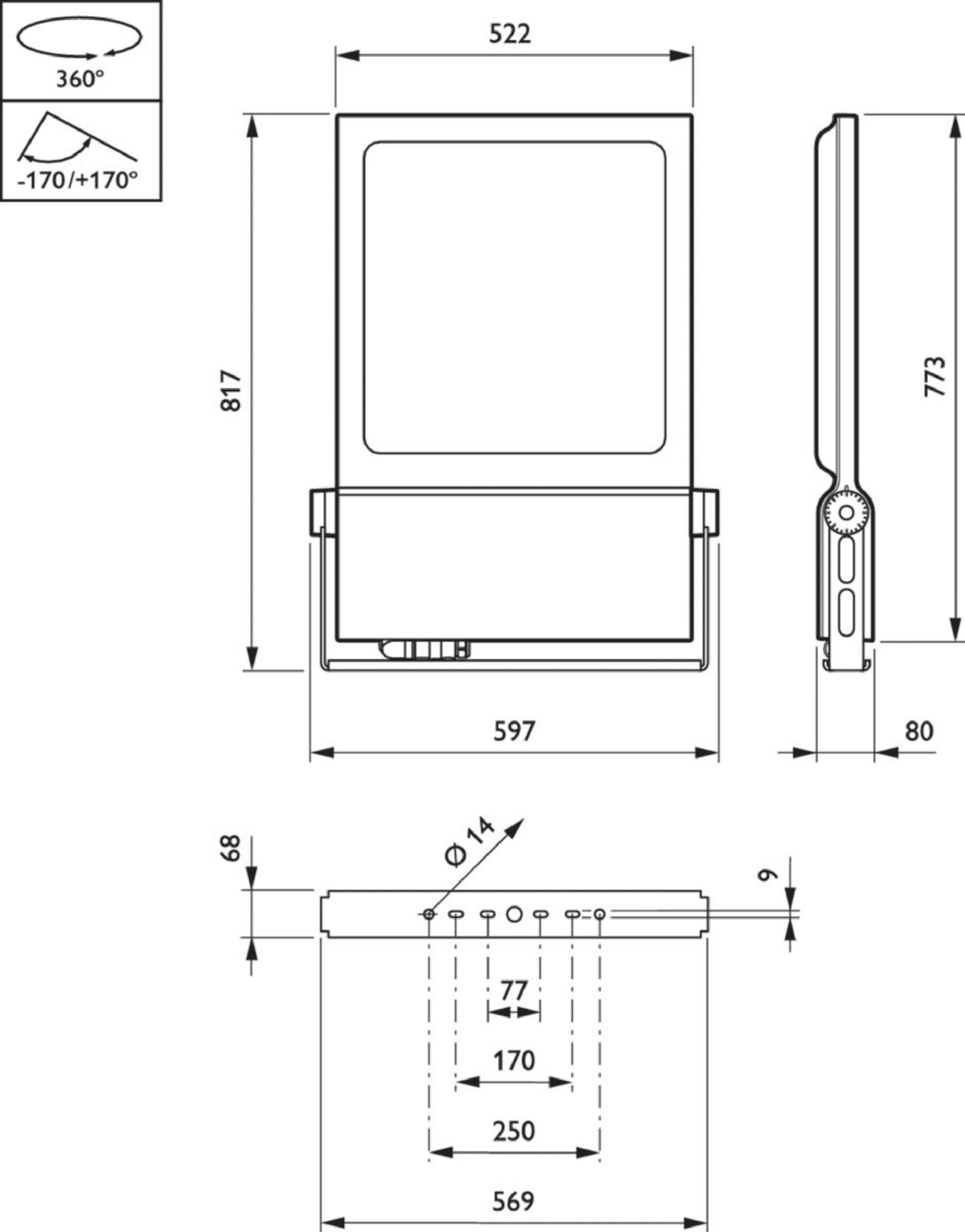

| Overall length | 817
mm
|
| Overall width | 597
mm
|
| Overall height | 80
mm
|
| Effective projected area | 0.41
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 4 kV differential mode and 4 kV common mode
|
| Initial luminous flux (system flux) | 53234
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 119
lm/W
|
| Init. Corr. Color Temperature | 4000
K
|
| Init. Color Rendering Index | ≥70
|
| Initial chromaticity | (0.380, 0.390) SDCM <5
|
| Initial input power | 450
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L89
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Full product code | 871869910805200
|
| Order product name | BVP651 LED650-4S/740 DM10 ALU PSU
|
| EAN/UPC - Product | 8718699108052
|
| Order code | 912300023761
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 1
|
| Material Nr. (12NC) | 912300023761
|
| Net Weight (Piece) | 23.275
kg
|
