EB-C 113 PL-T/C 220-240V 50/60Hz

  • Product Description

    EB-C 113 PL-T/C 220-240V 50/60Hz

    EB-C 113 PL-T/C 220-240V 50/60Hz

    Downloads

    Leaflet
    Size:868.3 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Type Version
mk1
Lamp Type
PL-T/C
Number Of Lamps
1 piece/unit
Number Of Products On MCB (16A Type B) (Nom)
20
Automatic Restart
No
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
20-40 kHz
Crestfactor (Nom)
1.9
Power Factor 100% Load (Nom)
0.95
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Wiring
Connector Type Input Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Capacity Output Wires Mutual (Max)
120 pF
Color Input Terminals
Orange
Color Output Terminals
Grey
Connector Type Output Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring
0.75 m
Wire Striplength
9.0-10.0 mm
Dual Fixture Master/Slave
Not advisable  [ Master/Slave operation not advised]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
13 W
System Power On PL-T/C
15 W
Power Loss On PL-T/C
2.0 W
Lamp Power On PL-T/C
13.0 W
Temperature
T-Case Lifetime (Nom)
65 °C
T-Case Maximum (Max)
65 °C
Emergency Operation
Battery Voltage Lamp Ignition
165-253 V
Approval and Application
Energy Efficiency Index
A2
Overvoltage Protection 276Vac
48 h
EMI 9 kHz ... 30 MHz
EN55015
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN61347-I
Approval Marks
CCC certificate
CB Certificate
Product Data
Full product code
872790083286000
Order product name
EB-C 113 PL-T/C 220-240V 50/60Hz
EAN/UPC - Product
8711500997722
Order code
913713198414
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
24
Material Nr. (12NC)
913713198414
Net Weight (Piece)
0.101 kg

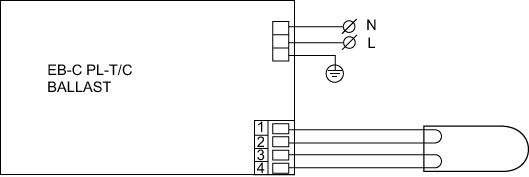

Installation Diagrams
EB-C 113 PL-T/C 220-240V 50/60Hz
EB-C 113 PL-T/C 220-240V 50/60Hz
