MASTER MHN-SE 2000W/956 GX22 400V HO UNP

  • Product Description

    MASTER MHN-SE 2000W/956 GX22 400V HO UNP

    MASTER MHN-SE 2000W/956 GX22 400V HO UNP

    Downloads

    Leaflet
    Size:200.0 kB

    See all downloads

Specifications Show all

General Information
Cap-Base
GX22  [ GX22]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Life To 5% Failures (Nom)
1300 h
Life To 10% Failures (Nom)
1650 h
Life To 20% Failures (Nom)
2100 h
Life To 50% Failures (Nom)
3000 h
Light Technical
Color Code
956  [ CCT of 5600K]
Luminous Flux (Rated) (Min)
215000 lm
Luminous Flux (Rated) (Nom)
227000 lm
Color Designation
Daylight
Lumen Maintenance 1000 h (Nom)
95 %
Lumen Maintenance 2000 h (Nom)
91 %
Chromaticity Coordinate X (Nom)
334
Chromaticity Coordinate Y (Nom)
366
Correlated Color Temperature (Nom)
5600 K
Luminous Efficacy (rated) (Nom)
108 lm/W
Color Rendering Index (Min)
-
Color Rendering Index (Nom)
84
Operating and Electrical
Lamp supply voltage
400 V  [ 400]
Power (Rated) (Nom)
2100.0 W
Lamp Current (EM) (Nom)
11.5 A
Ignition Supply Voltage (Min)
360 V
Voltage (Max)
225 V
Voltage (Min)
190 V
Voltage (Nom)
210 V
Controls and Dimming
Dimmable
No
Mechanical and Housing
Bulb Finish
Clear
Cap-Base Information
-
Approval and Application
Energy Efficiency Label (EEL)
A+
Mercury (Hg) Content (Nom)
215 mg
Energy Consumption kWh/1000 h
2310 kWh
UV
Specific Eff. Radiant Power
60 mW/klm
Luminaire Design Requirements
Bulb Temperature (Max)
1015 °C
Pinch Temperature (Max)
450 °C
Product Data
Full product code
872790092877800
Order product name
MASTER MHN-SE 2000W/956 GX22 400V HO UNP
EAN/UPC - Product
8718291548461
Order code
928196905130
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
1
Material Nr. (12NC)
928196905130
Net Weight (Piece)
0.152 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

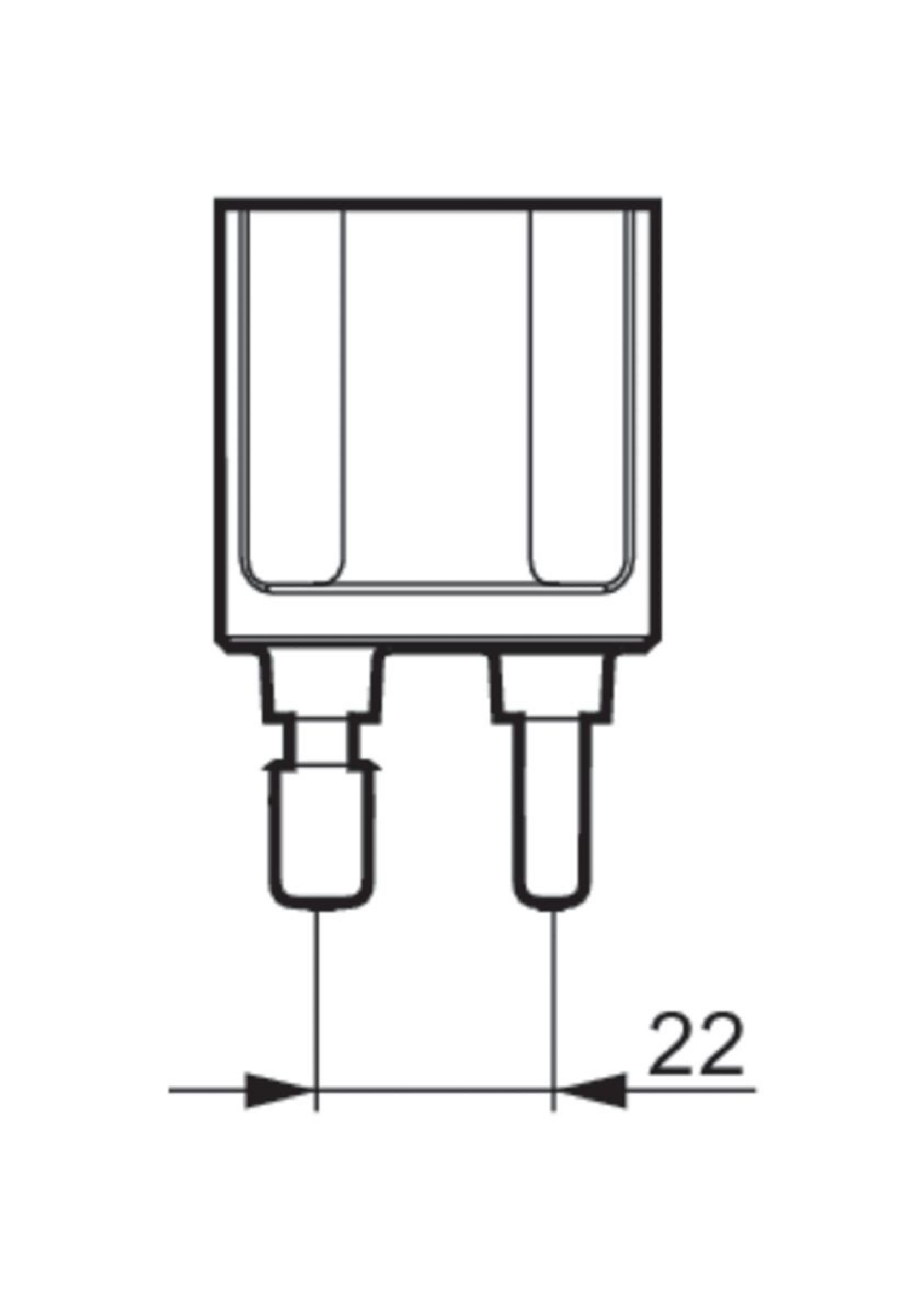

Installation Diagrams
MHN-SE, GX22
MHN-SE, GX22
GX22
GX22
Performance Diagrams
MHN-SE 2000W HO
MHN-SE 2000W HO
MHN-SE 2000 W Lumen Maintenance /956 HO
MHN-SE 2000 W Lumen Maintenance /956 HO
MHN-SE 2000 W Life Expectancy /956 HO
MHN-SE 2000 W Life Expectancy /956 HO
Photometrics
MASTER MHN-SE  2000W /956
MASTER MHN-SE 2000W /956
