TubeLine LED unit - Optimized comfort with linear LED solution

TubeLine

TubeLine

  • TubeLine LED unit - Optimized comfort with linear LED solution

    • Optimal traffic flow due to increased visual comfort and safety compared to point-source lightingQuick return on investmentFlexible, easy-to-install solution

Videos

[trigger to render Video Gallery]

Images

Product family information

Fluorescent linear lighting has traditionally been the preferred choice for customers demanding a high level of visual comfort. With excellent lighting uniformity on the road and walls, perfect visual guidance and high color recognition, linear lighting offers the driver superior lighting quality and safety as well as high system redundancy compared to point-source lighting solutions.With TubeLine, the same lighting quality can be achieved but with the advantages of LED technology. TubeLine is a state-of-the-art LED tunnel luminaire which offers all the benefits of linear lighting. With the latest LED technology, optimized dimensions and attractive pricing, linear lighting has never been more achievable within the constraints of limited budgets.

Features

Robust, corrosion-resistant aluminum buildStandard length 2 mSmooth design, easy to cleanRemote driver designed to prevent lane closuresLumen packages up to 14,400 lmFlexible mounting and connectivityCompatible with Philips controls

Applications

Traffic tunnelsUnderpasses
Product family details
General
Type
  • BGP360
Light source
  • Integral LED-module
Power
  • 21-108 W (21/44/72/82/108 W system power)
Luminous flux
  • 3000 up to 14,400 lm (3000/6000/10,000/11,400/14,400 lm)
Luminaire efficacy
  • > 120 lm/W (129/124/126/125/120 Lm/W)
Correlated Color Temperature
  • NW (4000 K)
  • Optional CW (5700 K)
Color Rendering Index
  • Minimal 70
Useful life
  • L80B10 = 100,000 hrs
Operating temperature range
  • -30 to +45 ºC
Driver
  • Separate (non-self ballasted LED-module)
Options
  • Flying lead length
  • Flying lead cable type
  • Through wiring
  • Cable gland metal
  • Connector type
Optic
  • DTS, DTS-NB, DTS-WB, DTA, DTA-NB, DTA-WB
Optical element
  • Lenses
Optical cover
  • Glass flat
Material
  • Housing: extruded aluminum with diecasted endcaps and glass cover
  • Extruded aluminum profiles: AlMg Si 0.5 anodized 25 um
  • Endcaps: diecaster aluminum, LM-6 powder coated 65 um
  • Glass cover: 5mm, thermally toughened
Color
  • Extruded aluminum: natural
  • Diecaster aluminum endcaps
Connection
  • Flying lead with plug fitted
Maintenance
  • NOT openable on site
Installation
  • Can be mounted with various mounting brackets: Standard, Ceiling and Cable tray mounting brackets.
  • A trunking solution is available: trunking profiles and cabling/connectivity solution.
  • No integrated driver, a separate driver unit needs to be connected to power the led unit.
  • Operating temperature: -30 to +40 ºC
  • Recommended mounting height: > 4 m
  • Mounting orientation: horizontal length wise in the tunnel
Cable gland
  • M12
Accessories

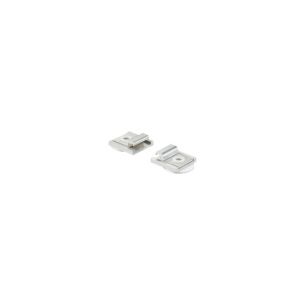

  • Mounting brackets: Standard, Ceiling and Cable tray mounting brackets.
  • Trunking profiles (at 2/4/6 mtr length) and cabling/connectivity solution.
  • Special driver units to power the TubeLine locally and units for remote powersupply.
Remarks
  • All accessories need to be ordered seperately.
