HID ignitors for series systems

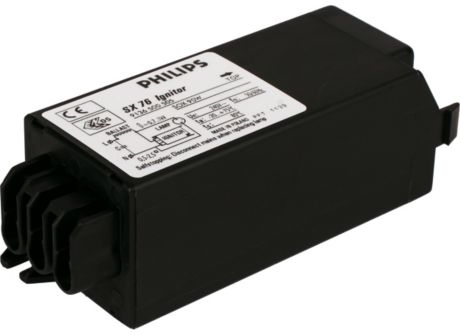

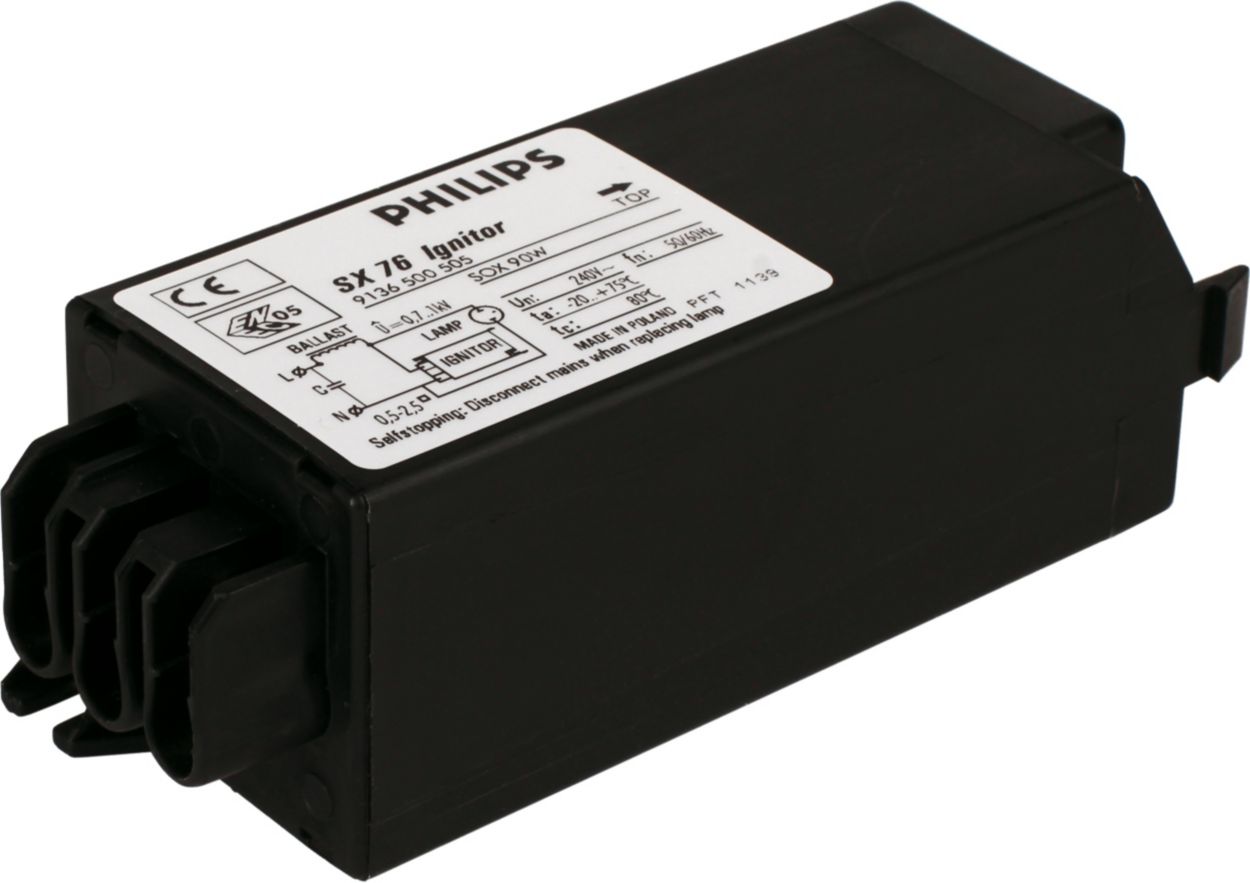

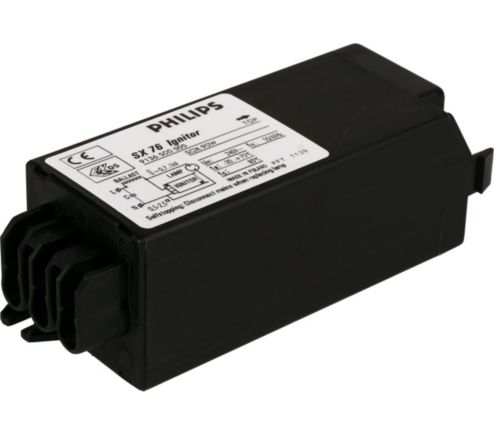

SX 76 220-240V 50/60Hz

  • Digital ignitors for maximum reliability

    SX 76 220-240V 50/60Hz

    Product information

    Downloads

    Leaflet
    Size:1.0 MB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
76
Lamp Type
SOX
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Igniton Type
Parallel
Ignition Voltage (Max)
1.0 kV
Response Voltage
198 V
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Losses (Nom)
1.0 W
Wiring
Cable Capacity Wires Device To Lamp (Nom)
5 nF
Wire Striplength
6.0 mm
Ballast Contact Wire Cross Section
0.70-2.50 mm²
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
66/90 W
Temperature
T-Ambient (Max)
75 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Maximum (Max)
80 °C
Mechanical and Housing
Housing
SNI-115
Approval and Application
Approval Marks
CE marking
ENEC certificate
Product Data
Full product code
871150091640230
Order product name
SX 76 220-240V 50/60Hz
EAN/UPC - Product
8711500916402
Order code
913650050566
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
20
Material Nr. (12NC)
913650050566
Net Weight (Piece)
0.094 kg
