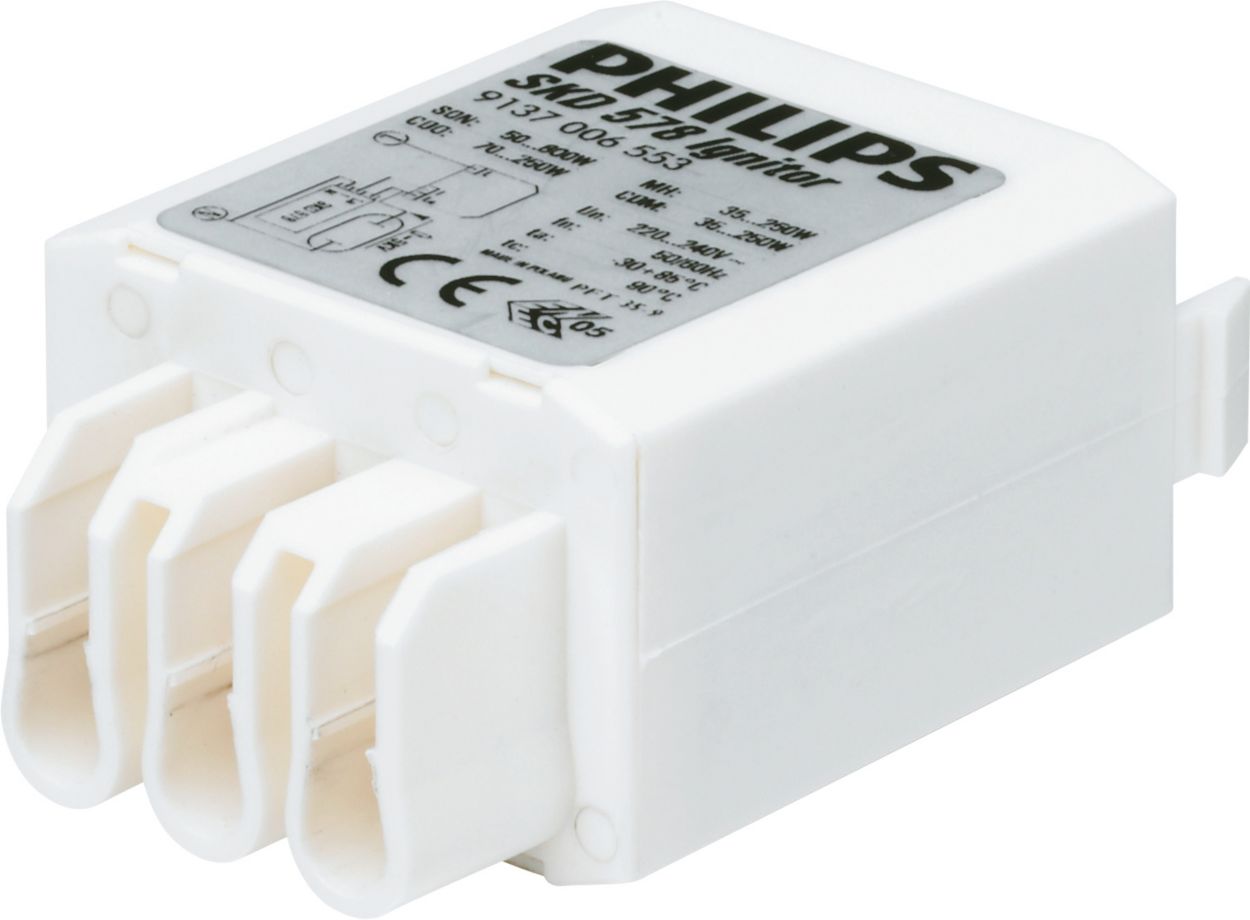

HID ignitors for MK4 semi-parallel systems

SKD 578-S 220-240V 50/60Hz

  • Compact ignitors for flexible luminaire design

    Product information

    Downloads

    Leaflet
    Size:607.6 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
578-S
Lamp Type
SON/CDM/MH/HPI/HPA/CDO
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Igniton Type
Semi-Parallel
Ignition Attempts
3
Number Of Ignition Pulses
1
Ignition Time (Max)
1185 s
Ignition Voltage (Max)
5.00 kV
Ignition Voltage (Min)
1.80 kV
Response Voltage
190 V
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Losses (Nom)
0.5 W
Wiring
Wire Striplength
6.0 mm
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
35-600 W
Temperature
T-Ambient (Max)
85 °C
T-Ambient (Min)
-30 °C
T-Storage (Max)
85 °C
T-Storage (Min)
-35 °C
T-Case Maximum (Max)
90 °C
Approval and Application
Approval Marks
CE marking
ENEC certificate
Product Data
Full product code
872790089569800
Order product name
SKD 578-S 220-240V 50/60Hz
EAN/UPC - Product
8711500881779
Order code
913700655466
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
20
Material Nr. (12NC)
913700655466
Net Weight (Piece)
31.400 g
Installation Diagrams
