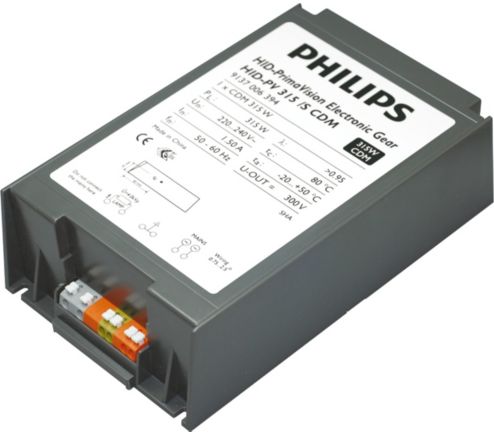

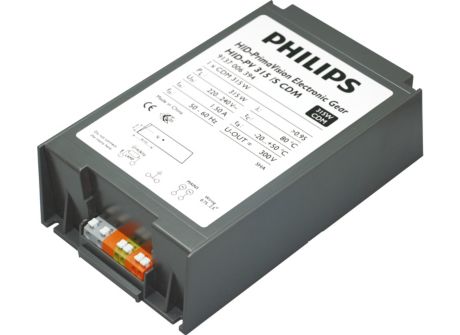

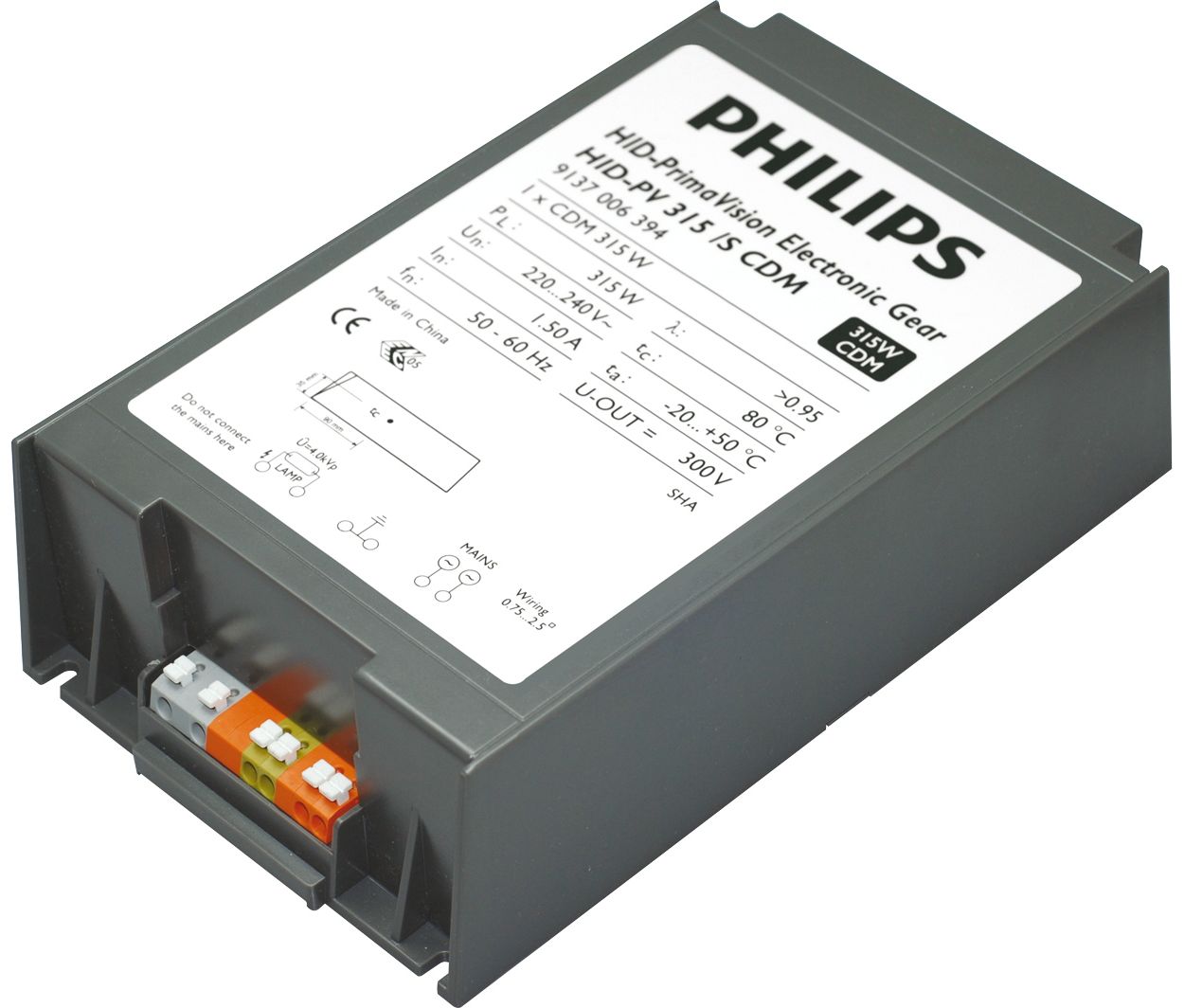

HID-PV 315 /S CDM 220-240V 50/60Hz

  • Highly reliable drivers for medium-wattage lamps

    HID-PV 315 /S CDM 220-240V 50/60Hz

    HID-PV 315 /S CDM 220-240V 50/60Hz

    Full Product Code: 872790084311800

    Order code: 913700639466

    Downloads

    Leaflet
    Size:776.8 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Type Version
mk1
Lamp Type
CDM
Number Of Lamps
1 piece/unit
Suitable For Outdoor Use
Yes
Number Of Products On MCB (16A Type B) (Nom)
4
Default Lamp Selected
CDM315
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
198 V
Operating Frequency (Nom)
0.11 kHz
Ignition Switch-Off Time (Nom)
30 min
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Output Peak Voltage (Max)
4000 V
Lamp Power Tolerance
-3%/+3%
Input Current (Nom)
1.53 A
Wiring
Wire Striplength
10.0 mm
Ballast Contact Wire Cross Section
0.75-2.50 mm²
Connector Type
Insert
System characteristics
Rated Ballast-Lamp Power
315 W
Rated Lamp Power On CDM
315 W
System Power On CDM
340.5 W
Lamp Power On CDM
315.0 W
Power Loss On CDM
25.5 W
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Switch Off (Min)
90 °C
Controls and Dimming
Programmable Lamp Settings
-
Pre-Set Integrated Controls
-
Programmable Dimming Options
-
Mechanical and Housing
Housing
/S
Approval and Application
IP Classification Luminaire
34
Overvoltage Protection 400Vac
5 min
Active Temperature Protection
Yes
Safety Standard
EN60928, 60926
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
Vibration Standard
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps Standard
IEC 68-2-29 Eb (10G/16ms)
Humidity Standard
EN 61347-2-12 clause 11
Approval Marks
CE marking
ENEC certificate
CB Certificate
Hum And Noise Level
37 dB(A)
Product Data
Full product code
872790084311800
Order product name
HID-PV 315 /S CDM 220-240V 50/60Hz
EAN/UPC - Product
8711500880888
Order code
913700639466
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
4
Material Nr. (12NC)
913700639466
Net Weight (Piece)
2.500 kg
