HID-PV/DV economy for CPO-CDM

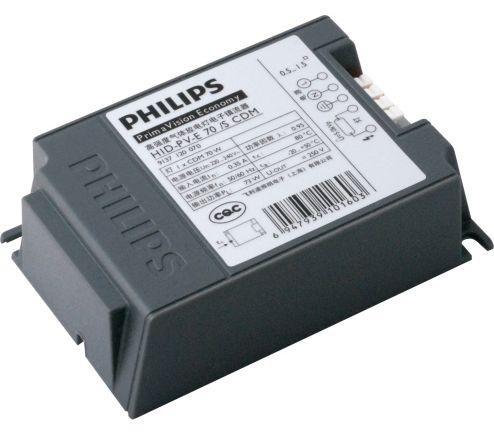

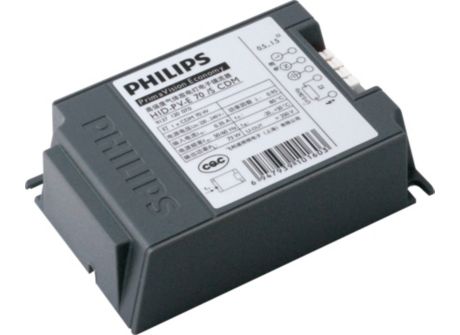

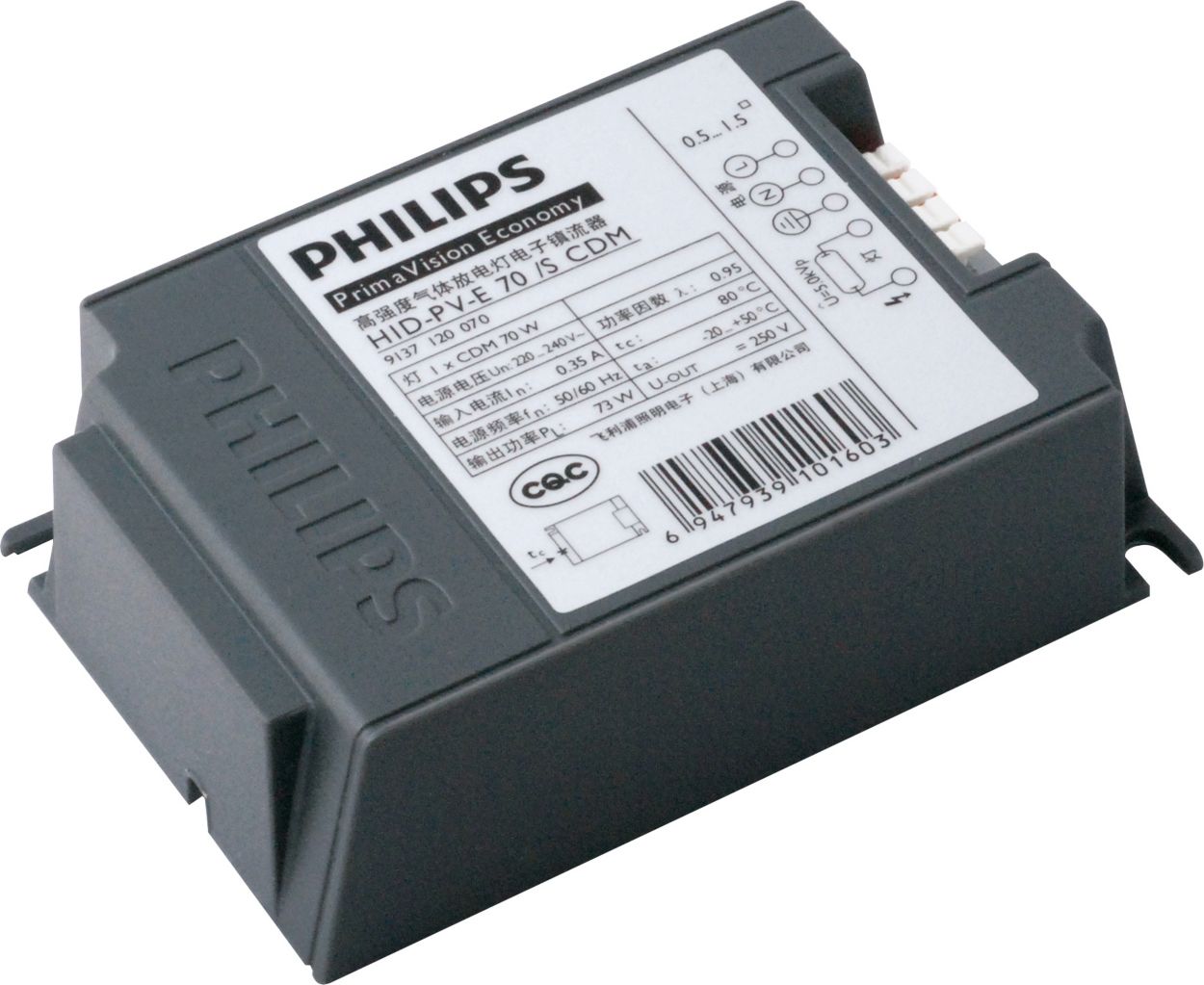

HID-PV E 70 /S CDM 220-240V 50/60Hz

HID-PV E 70 /S CDM 220-240V 50/60Hz

  • Certavision driver for CPO or CDM Elite MW lamps

    Product information

    Downloads

    Leaflet
    Size:992.8 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Lamp Type
CDM
Suitable For Outdoor Use
Yes
Number Of Products On MCB (16A Type-C) (Nom)
20 piece/unit
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
180 V
Operating Frequency (Nom)
50-60 kHz
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
5 kV
Ignition Voltage (Min)
3 kV
Ignition Switch-Off Time (Nom)
20 min
Mains Voltage Performance (AC)
198-254V
Mains Voltage Safety (AC)
180-264V
Earth Leakage Current (Max)
0.5 mA
Output Peak Voltage (Max)
250 V
Inrush Current Width
0.33 ms
Lamp Power Tolerance
-3%/+3%
Input Current (Nom)
0.2 A
Inrush Current Peak (Max)
33 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
150 pF
Cable Length From Device To Lamp
2 m
Ballast Contact Wire Cross Section
0.75-2.50 mm²
System characteristics
Rated Ballast-Lamp Power
70 W
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
85 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
85 °C
T-Case Switch Off (Min)
95 °C
Controls and Dimming
Control Input Protection
Yes (Basic insulation)
Mechanical and Housing
Housing
-S
Approval and Application
Surge Protection (Common/Differential)
EN61547 (L-L 1kV, L-G 2kV) kV
IP Classification Luminaire
Not Specified
Overvoltage Protection 400Vac
5 min
Active Temperature Protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2 / 2009
EMI 30 MHz ... 1000 MHz
CISPR15 Edition 7.2
Safety Standard
IEC 61347-2-11
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
Not Specified
Vibration Standard
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps Standard
IEC 68-2-29 Eb (10G/16ms)
Humidity Standard
IEC 928-13
Approval Marks
CE marking
Hum And Noise Level
20 dB(A)
Product Data
Full product code
871869642008900
Order product name
HID-PV E 70 /S CDM 220-240V 50/60Hz
EAN/UPC - Product
8718696420089
Order code
913712008566
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913712008566
Net Weight (Piece)
0.240 kg
Installation Diagrams
HID-PV E 70 /S CDM
