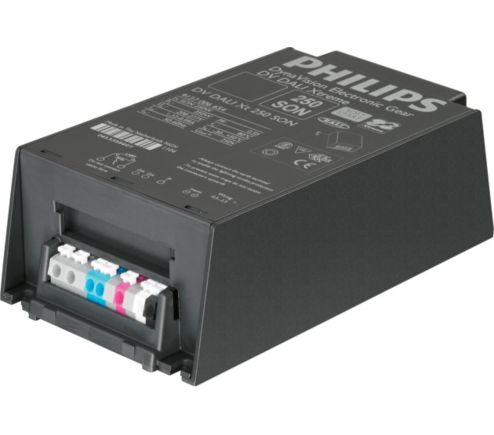

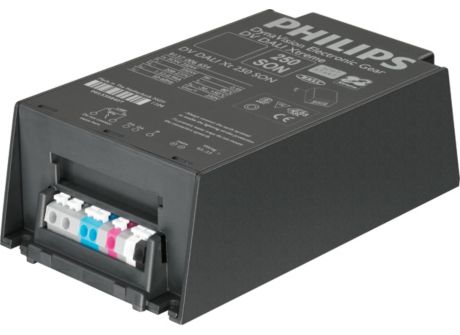

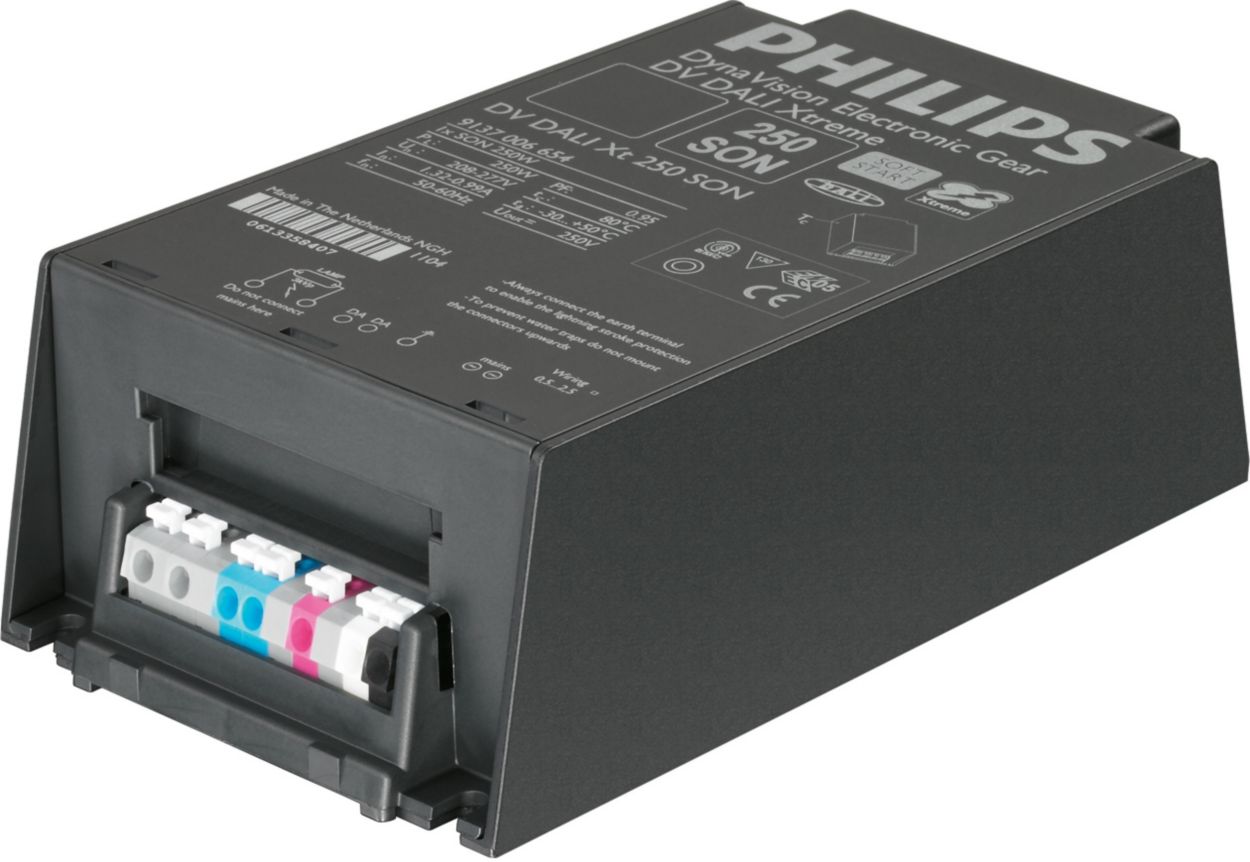

DynaVision Programmable Xtreme for SON

HID-DV PROG Xt 250 SON C2 208-277V

HID-DV PROG Xt 250 SON C2 208-277V

  • Xtreme drivers for maximum energy savings

    Product information

    Downloads

    Leaflet
    Size:1.2 MB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Type Version
-
Lamp Type
SON
Number Of Lamps
1 piece/unit
Suitable For Outdoor Use
Yes
Number Of Products On MCB (16A Type B) (Nom)
11
Default Lamp Selected
SON250
Automatic Restart
Yes
Operating and Electrical
Input Voltage
208-240-277 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
172 V
Operating Frequency (Nom)
0.20 kHz
Power Factor 100% Load (Nom)
0.99
Ignition Voltage (Max)
5 kV
Ignition Switch-Off Time (Max)
20 min
Mains Voltage Performance (AC)
188-305V
Mains Voltage Safety (AC)
160-305V
Power Factor 50% Load (Min)
0.98
Earth Leakage Current (Max)
0.7 mA
Output Peak Voltage (Max)
250 V
Inrush Current Width
4 ms
Lamp Power Tolerance
-3%/+3%
Input Current (Nom)
1.32 A
Inrush Current Peak (Max)
4 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
1000 pF
Cable Length From Device To Lamp
10 m
Wire Striplength
10.0-11.0 mm
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
WAGO series 804
System characteristics
Rated Ballast-Lamp Power
250 W
Rated Lamp Power On SON
250 W
System Power On SON
273 W
Lamp Power On SON
250 W
Power Loss On SON
23 W
Power Loss On SON While Dimming
13 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-30 °C
T-Storage (Max)
50 °C
T-Storage (Min)
-30 °C
T-Case Lifetime (Nom)
80 °C
T-Case Switch Off (Min)
92 °C
Controls and Dimming
Control Interface
PROG
Pre-Set Integrated Controls
Dali
Programmable Dimming Options
ALO/CLO/Dynadimmer/lineswitch/AmpDi
Run-Up Time Before Dimming
0 min
Fade Down Rate
13.3 %/sec
Fade Up Rate
13 %/sec
Control Input Protection
Yes (Basic insulation)
Regulating Level
20%-100%
Mechanical and Housing
Housing
C2
Approval and Application
Surge Protection (Common/Differential)
EN61547 (L-L 2kV, L-G 4kV), 10kV TIL kV
IP Classification Luminaire
34
Active Temperature Protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
EMI 30 MHz ... 1000 MHz
-
Safety Standard
IEC 607, 609, 926, 928  [ No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality Standard
ISO 9000:2000
Environmental Standard
ISO14001
Harmonic Current Emission Standard
IEC61000-3-2
Vibration Standard
IEC68-2-6FC(10-150HZ
Bumps Standard
IEC 68-2-29 Eb (10G/16ms)
Humidity Standard
EN61347-2-12CLAUSE11
Approval Marks
F-Marking
CE marking
ENEC certificate
VDE-EMV certificate
Hum And Noise Level
37 dB(A)
Product Data
Full product code
871829121991000
Order product name
HID-DV PROG Xt 250 SON C2 208-277V
EAN/UPC - Product
8718291219910
Order code
913700676766
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
913700676766
Net Weight (Piece)
1.420 kg
Installation Diagrams
HID-DV DALI & LS Xt
