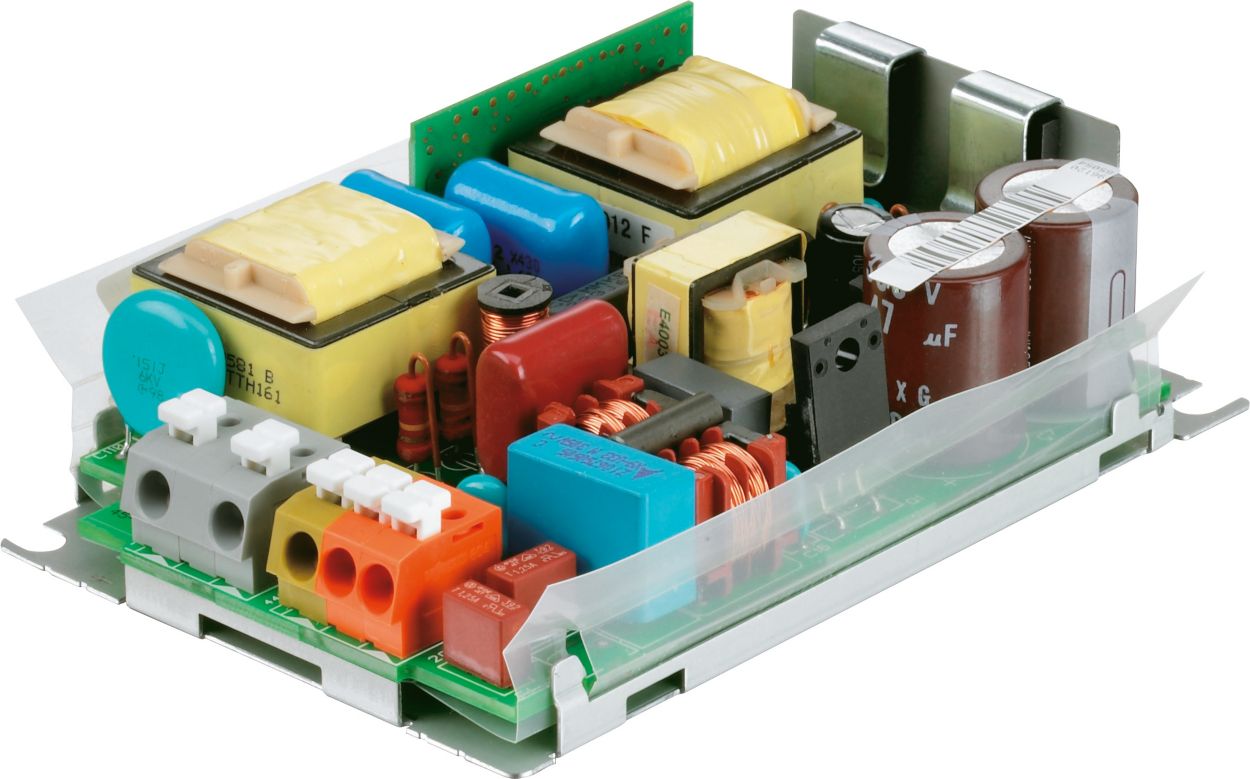

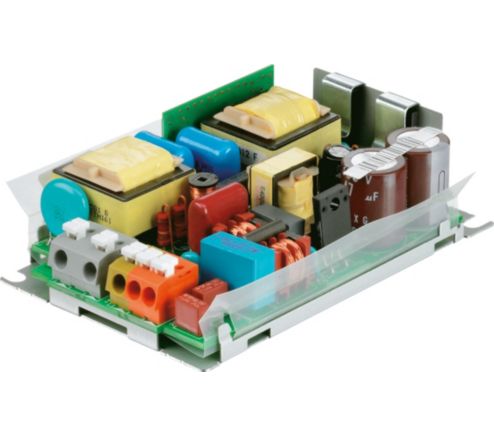

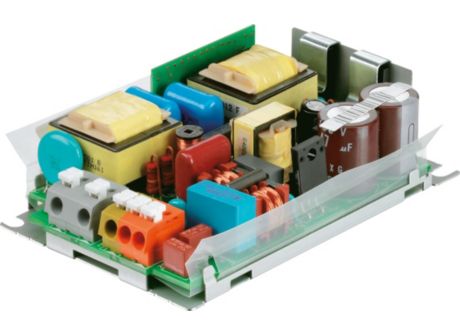

PrimaVision Compact for CDM

HID-PV C 70 /P CDM 220-240V 50/60Hz

HID-PV C 70 /P CDM 220-240V 50/60Hz

  • High quality and robust performance

    Product information

    Downloads

    Leaflet
    Size:1.1 MB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Type Version
GEN4.3
Lamp Type
CDM
Number Of Lamps
1 piece/unit
Suitable For Outdoor Use
No
Number Of Products On MCB (16A Type B) (Nom)
20
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
0.14 kHz
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
4.0 kV
Ignition Switch-Off Time (Nom)
18 min
Mains Voltage Performance (AC)
-10%-+6%
Mains Voltage Safety (AC)
-18%-+10%
Earth Leakage Current (Max)
0.25 mA
Inrush Current Width
0.33 ms
Constant Wattage Deviation
-3%/+3%
Power Losses (Nom)
7.0 W
Inrush Current Peak (Max)
33 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
100 pF
Cable Length From Device To Lamp
1.5 m
Ballast Contact Wire Cross Section
0.50-2.50 mm²
Connector Type
Insert
System characteristics
Rated Ballast-Lamp Power
70 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
80 °C
T-Case Maximum (Max)
80 °C
Mechanical and Housing
Housing
-P
Approval and Application
Active Temperature Protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
Safety Standard
EN 61347-2-12
Quality Standard
ISO 9000:2000
Environmental Standard
ISO14001
Harmonic Current Emission Standard
EN61000-3-2
EMC Immunity Standard
EN 61547
Vibration Standard
IEC68-2-6FC
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
IEC928-13
Approval Marks
CE marking
ENEC certificate
Hum And Noise Level
37 dB(A)
Product Data
Full product code
872790086553000
Order product name
HID-PV C 70 /P CDM 220-240V 50/60Hz
EAN/UPC - Product
8711500998231
Order code
913700653066
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913700653066
Net Weight (Piece)
0.210 kg
Installation Diagrams
HID-PV C 35, 50 & 70 /P CDM
HID-PV CDM Gen 4.3
