  • Simple, robust magnetic ballast

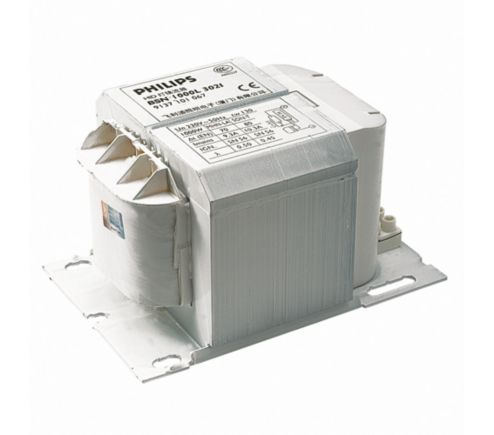

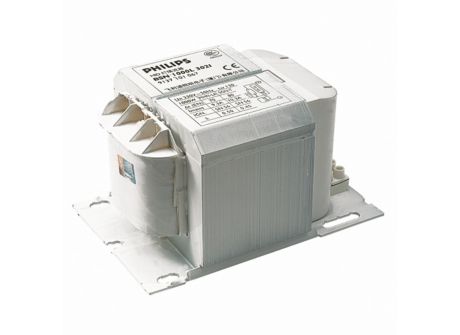

    BHL 1000L 202

    PHILIPS PLEX BHL 1000L 202

    EAN/UPC: 694818229967300

    Order code: 913710104942

    Downloads

    Leaflet
    Size:384.9 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
L202
Operating and Electrical
Input Voltage
230 V
Input Frequency
50 Hz
Power Factor 100% Load (Min)
0.85
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Input Current With PF Correction
5.3 A
Input Current Without PF Correction
7.5 A
Power Factor Without PF Compensation (Nom)
60
Power Losses (Nom)
39 W
Wiring
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
1000 W
Temperature
T-Winding (Max)
130 °C
Delta-T Normal Conditions
75 °C
Approval and Application
Approval Marks
CE marking
CCC certificate
Product Data
Full product code
694818229967300
Order product name
BHL 1000L 202
EAN/UPC - Product
6948182295354
Order code
913710104942
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
1
Material Nr. (12NC)
913710104942
Net Weight (Piece)
6.900 kg
Installation Diagrams
BHL 1000L 202
BHL 1000L 202
