    • Long-lasting, reliable solution

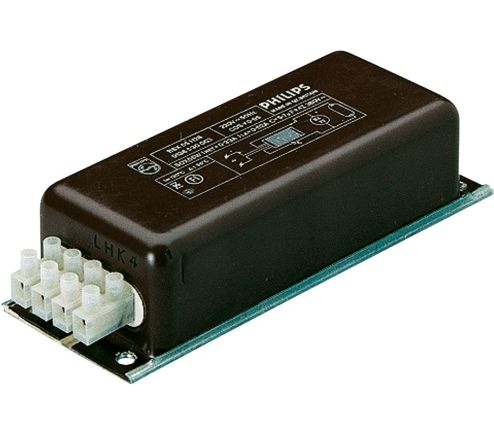

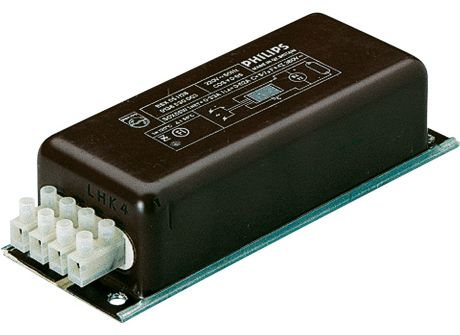

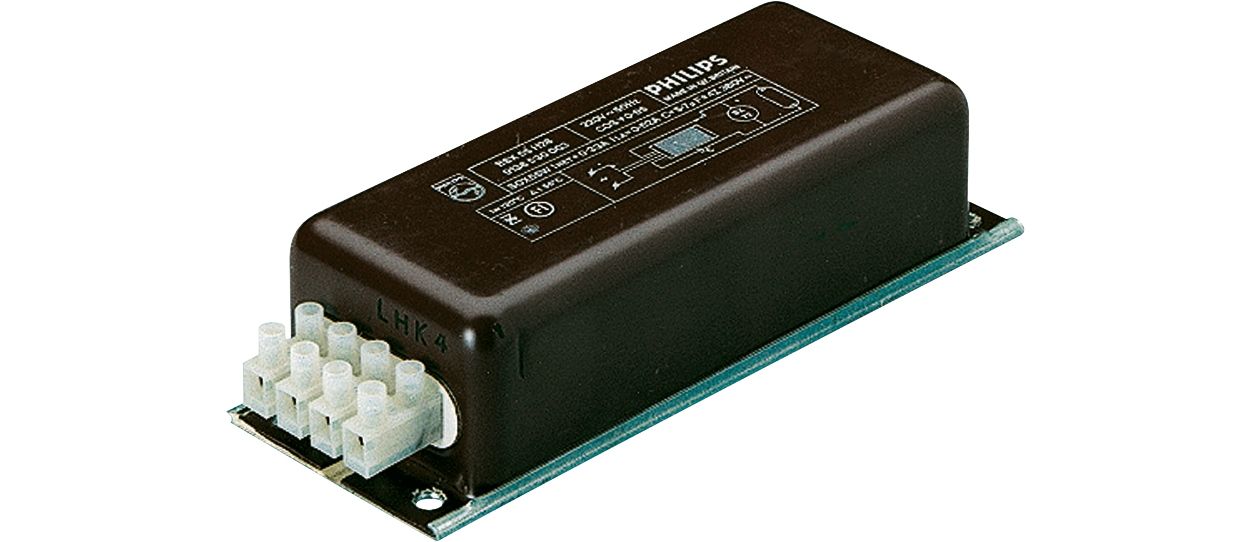

      BSX 131 H96 220-240V 50Hz CW-178/78
      BSX 131 H96 220-240V 50Hz CW-178/78

      BSX 131 H96 220-240V 50Hz CW-178/78

      Order code: 913647057226

      Full Product Code: 871150091978699

      Downloads

      Leaflet
      Size:1.0 MB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    H96
    Design
    CW-178/74
    Lamp Type
    SOX-E
    Number of Lamps
    1 piece/unit
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 Hz
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Power Losses (Nom)
    22.5 W
    Wiring
    Wire Striplength
    6.0 mm
    Ballast Contact Wire Cross Section
    0.75-2.50 mm²
    Connector Type
    Screw
    System characteristics
    Capacitor
    3.4µF/650V
    Rated Ballast-Lamp Power
    131 W
    Recommended Ignitor
    ignitor SX131 (913700625366)
    Temperature
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Winding (Max)
    130 °C
    Delta-T Normal Conditions
    55 °C
    Approval and Application
    Approval Marks
    CE marking
    ENEC certificate
    Product Data
    Full product code
    871150091978699
    Order product name
    BSX 131 H96 220-240V 50Hz CW-178/78
    EAN/UPC - Product
    8711500919786
    Order code
    913647057226
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    4
    Material Nr. (12NC)
    913647057226
    Net Weight (Piece)
    4.200 kg
    Installation Diagrams
    BSX 131 H96 220-240V 50Hz CW-178/78
    BSX 131 H96 220-240V 50Hz CW-178/78
