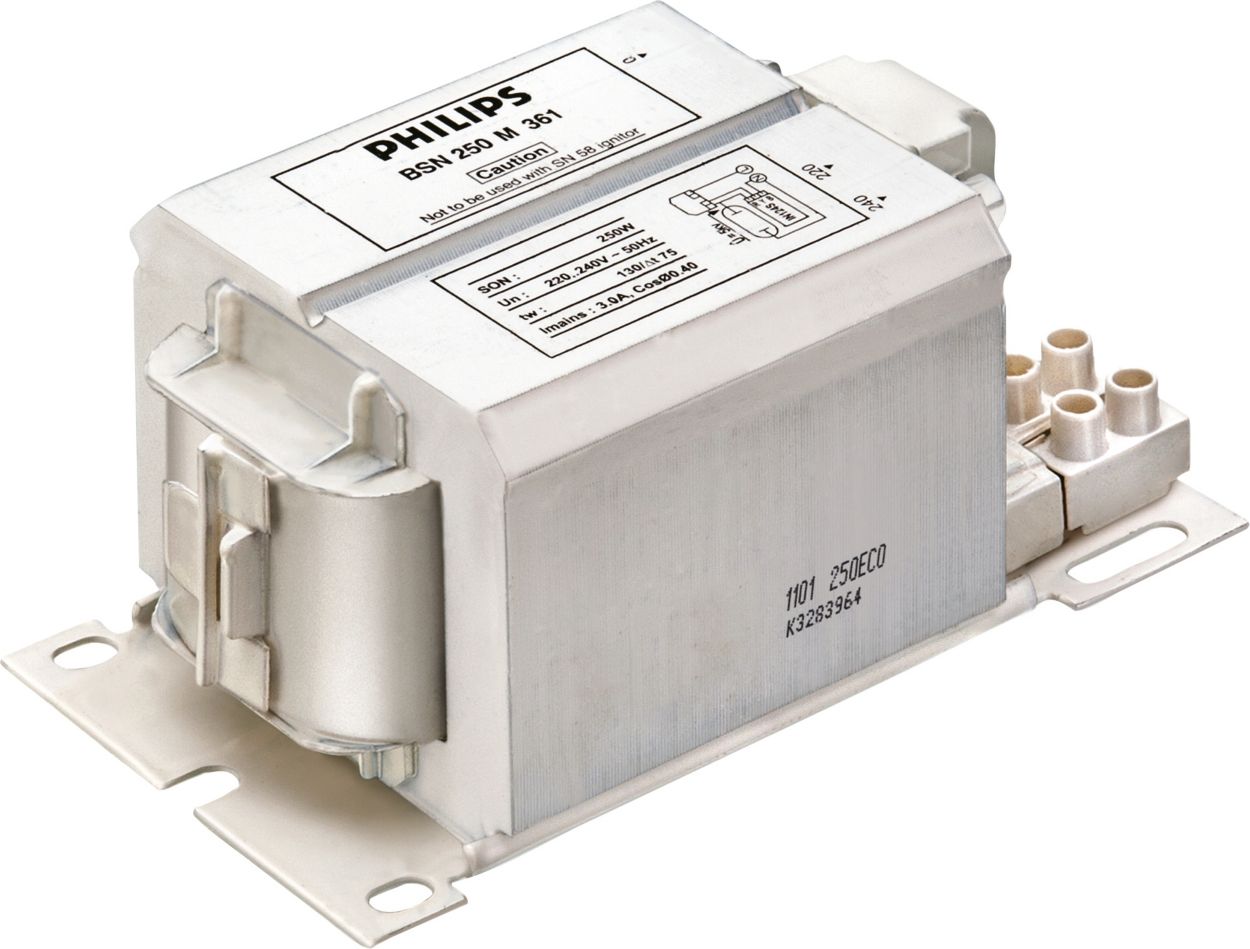

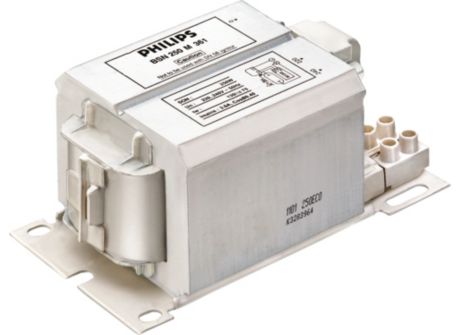

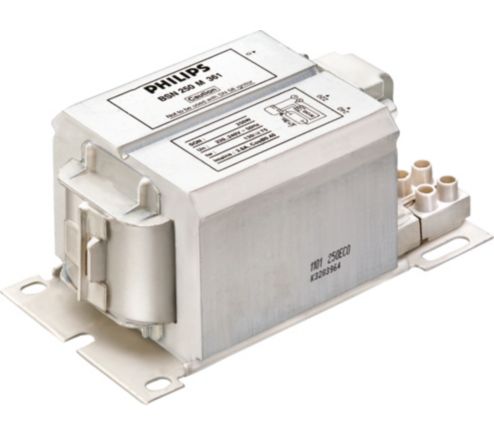

HID-Basic Gearbox system for SON (India)

BSN 250 M361

  • HID basic gearbox system for SON

    BSN 250 M361

    Product information

    Downloads

    Leaflet
    Size:859.6 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
250 M361
Lamp Type
SON
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
220/240 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
240+6%--8%
Mains Voltage Safety (AC)
240-10%-+10%
Input Current With PF Correction
1.30 A
Input Current Without PF Correction
3.00 A
Power Factor With PF Compensation
0.85
Power Factor Without PF Compensation (Nom)
0.40
Power Losses (Nom)
34 W
Wiring
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
250 W
Temperature
T-Winding (Max)
130 °C
Delta-T Normal Conditions
75 °C
Approval and Application
Energy Efficiency Index
Not specified
Product Data
Full product code
871150088467100
Order product name
BSN 250 M361
EAN/UPC - Product
8711500884671
Order code
913702253722
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
4
Material Nr. (12NC)
913702253722
Net Weight (Piece)
2.800 kg
