    • HID basic gearbox system for SON

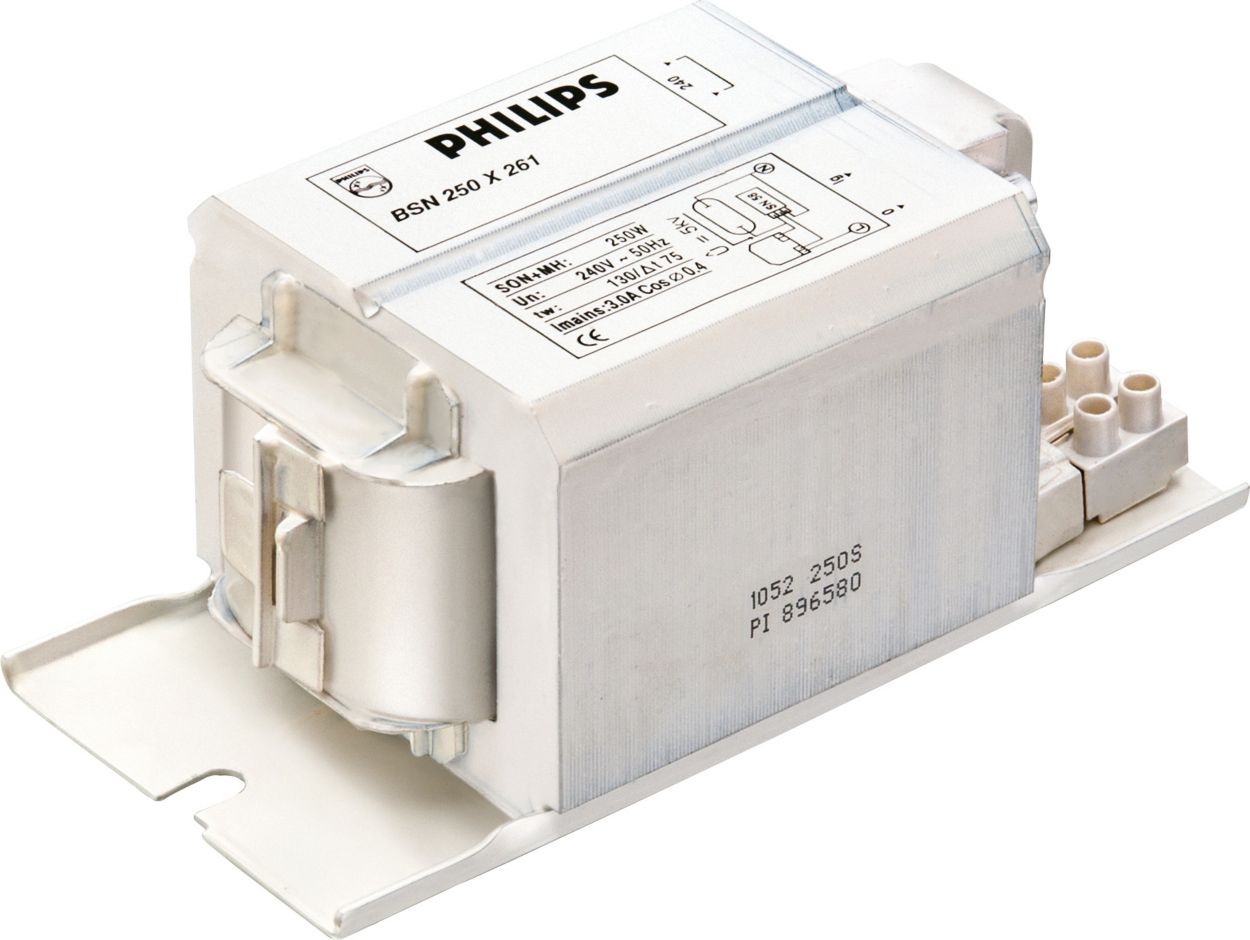

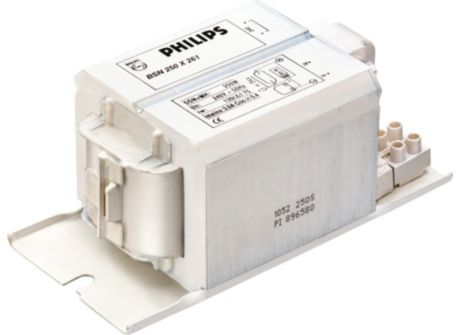

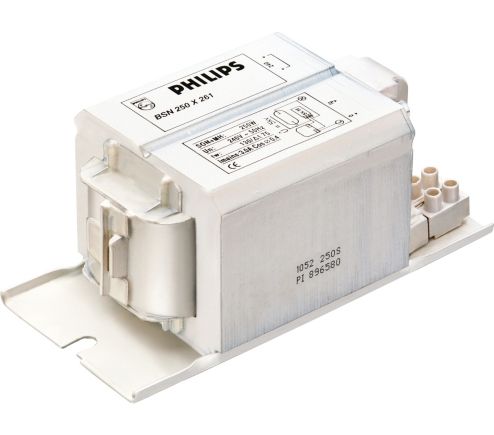

      BSN 250 X261
      BSN 250 X261

      BSN 250 X261

      Order code: 913702253412

      Full Product Code: 871150088465700

      Downloads

      Leaflet
      Size:800.4 kB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    250 X261
    Lamp Type
    SON/MHN-TD/HPI-T/CDM
    Number of Lamps
    1 piece/unit
    Operating and Electrical
    Input Voltage
    240 V
    Input Frequency
    50 Hz
    Mains Voltage Performance (AC)
    240+6%--8%
    Mains Voltage Safety (AC)
    240-10%-+10%
    Input Current with PF Correction
    1.37 A
    Input Current without PF Correction
    3.00 A
    Power Factor with PF Compensation
    0.85
    Power Factor without PF Compensation (Nom)
    0.40
    Power Losses (Nom)
    32 W
    Wiring
    Connector Type
    Screw
    System characteristics
    Rated Ballast-Lamp Power
    250 W
    Temperature
    T-Winding (Max)
    130 °C
    Delta-T Normal Conditions
    75 °C
    Approval and Application
    Energy Efficiency Index
    Not specified
    Approval Marks
    CE marking
    Product Data
    Full product code
    871150088465700
    Order product name
    BSN 250 X261
    EAN/UPC - Product
    8711500884657
    Order code
    913702253412
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    4
    Material Nr. (12NC)
    913702253412
    Net Weight (Piece)
    2.930 kg
    Installation Diagrams
    BSN 250 M261 OEM
    BSN 250 M261 OEM
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 800.4 kB
    Visuals
