Long-lasting, reliable solution

HID-Basic BSN/BMH semi-parallel for SON/CDO/CDM/MH/HPI

HID-Basic BSN/BMH semi-parallel for SON/CDO/CDM/MH/HPI

Product family information

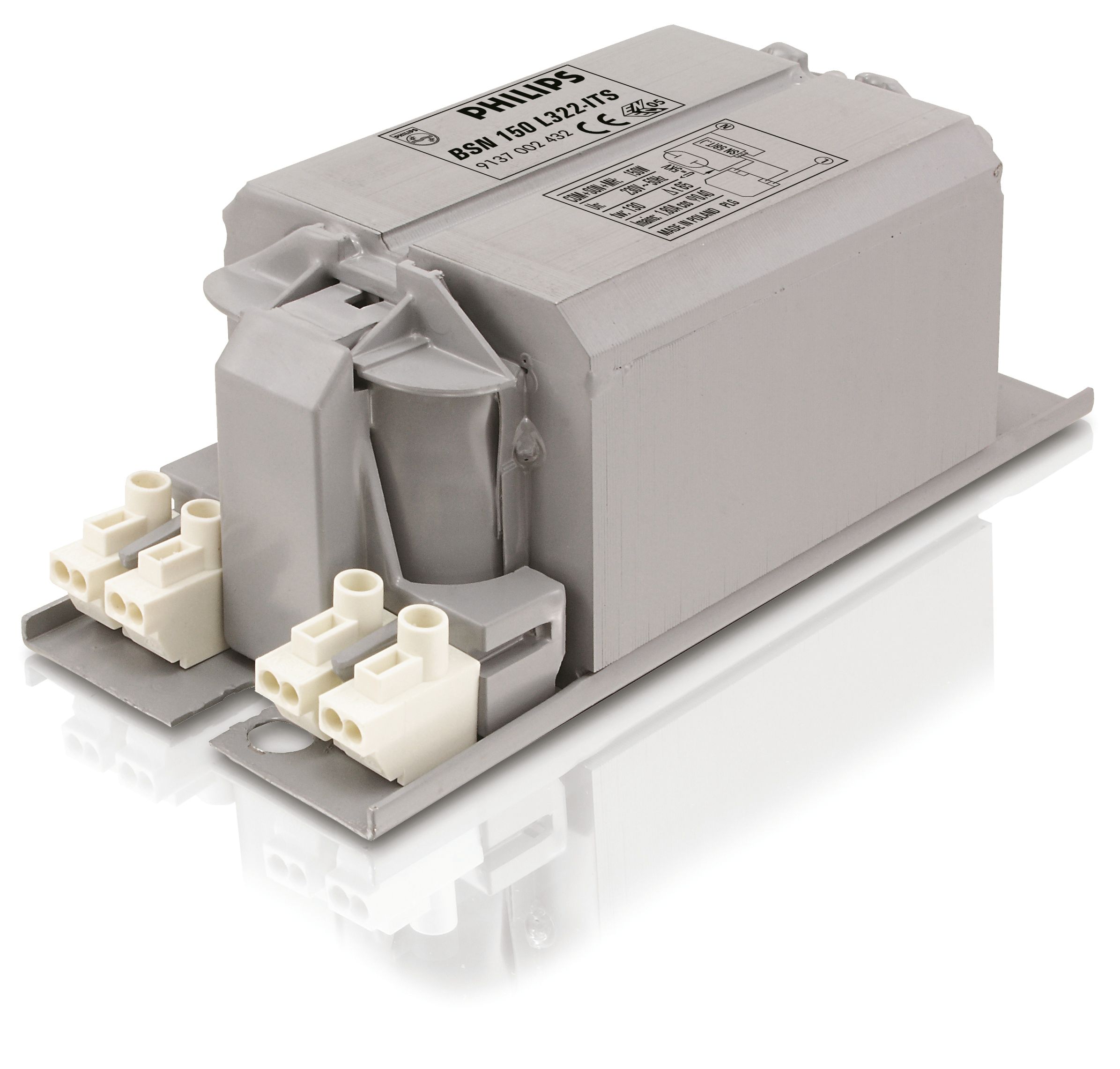

Impregnated electromagnetic copper ballasts for use with an external semi-parallel ignitor for CDM, CDO, MH, HPI (Plus) and SON lamps

Benefits

Long-lasting reliable solution protected from overheating
Minimal watt losses thanks to orthocyclic winding process
Control gear can be installed remotely

Features

All ballasts are equipped with ThermoSwitch for protection against end-of-lamp-life phenomena
Ballast can also be used in combination with series (superimposed) ignitor
Equipped with screw terminal blocks as standard; insert contacts available upon request
Earthing-while-mounting facility
Ballasts for alternative mains voltages/frequencies available upon request

System

Electromagnetic system requires ballast, ignitor and capacitor
Semi-parallel circuit: if ballasts with “L” in their description (e.g. BSN 100 L307…) are used, SN(D)… ignitors are required; if ballasts with “K” in their description (e.g. BSN 100 K307…) are used, SK(D)… ignitors are required. Capacitor value to match system power can be found on lamp/ballast combination sheet
Series circuit: all ballasts are designed to work with series ignitors
No ignitor needed for SON-I lamps

Applications

Outdoor lighting
Horticulture
