BHL 400 K202-A2 230V 50Hz BC2-151

  • Long-lasting, reliable solution

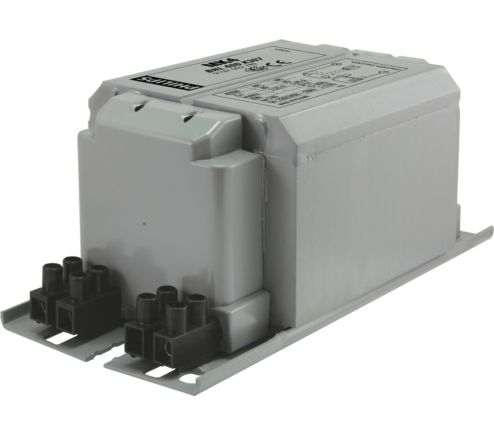

    BHL 400 K202-A2 230V 50Hz BC2-151

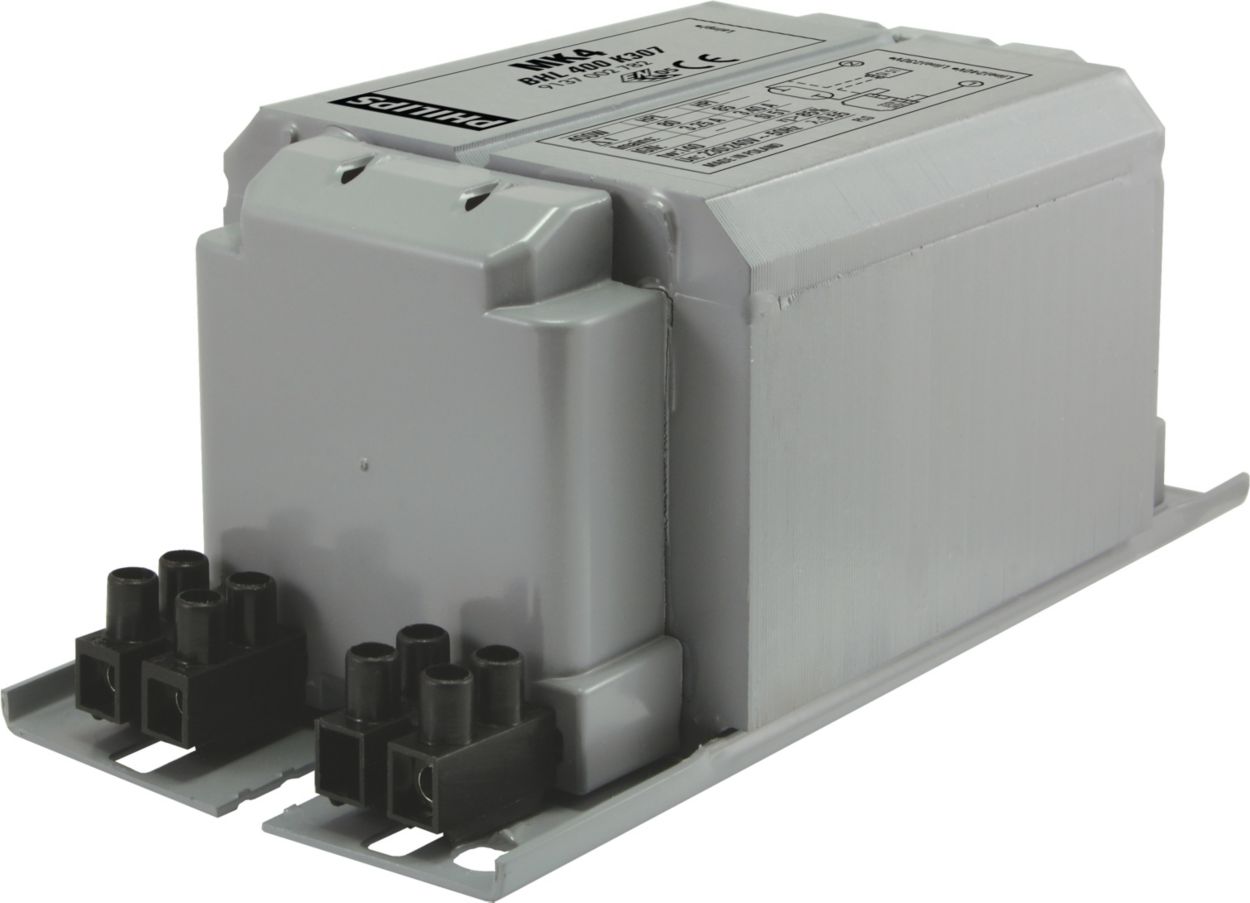

    BHL 400 K202-A2 230V 50Hz BC2-151

    Downloads

    Leaflet
    Size:397.1 kB

    See all downloads

Specifications Show all

General Information
Application Code
K202-A2
Design
BC2-151
Lamp Type
HPL/HPI
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
230 V
Input Frequency
50 Hz
Power Factor 100% Load (Nom)
2.15
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Input Current With PF Correction
2.15 A
Input Current Without PF Correction
3.25/3.40 A
Power Factor Without PF Compensation (Nom)
3.25
Wiring
Wire Striplength
7.0 mm
Ballast Contact Wire Cross Section
2.5 mm²
Connector Type
Screw
System characteristics
Capacitor
25µF/28µF/250V (230V/240V)
Rated Ballast-Lamp Power
400 W
Recommended Ignitor
no ignitor for HPL-N for HPI-T ignitor SI51 (913619519966)
Temperature
T-Storage (Max)
130 °C
T-Storage (Min)
-30 °C
T-Winding (Max)
130 °C
Delta-T Normal Conditions
80/85 °C
Approval and Application
Approval Marks
CE marking
ENEC certificate
Product Data
Full product code
872790094076300
Order product name
BHL 400 K202-A2 230V 50Hz BC2-151
EAN/UPC - Product
8727900940763
Order code
913700284626
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
913700284626
Net Weight (Piece)
2.998 kg
Installation Diagrams

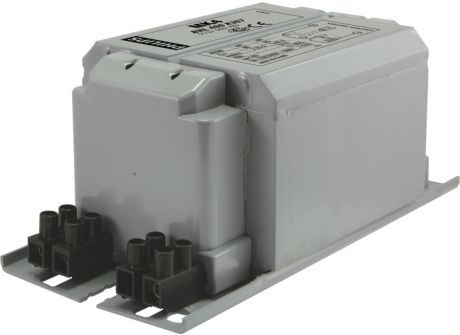

BHL 400 K202-A2 230V 50Hz BC2-151
BHL 400 K202-A2 230V 50Hz BC2-151
