  • HID basic BHL for HPL/HPI

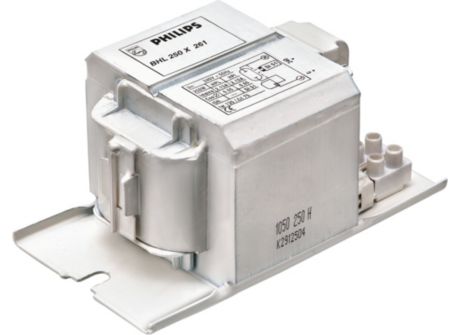

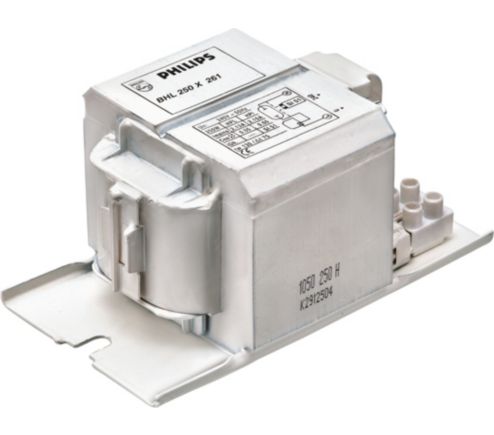

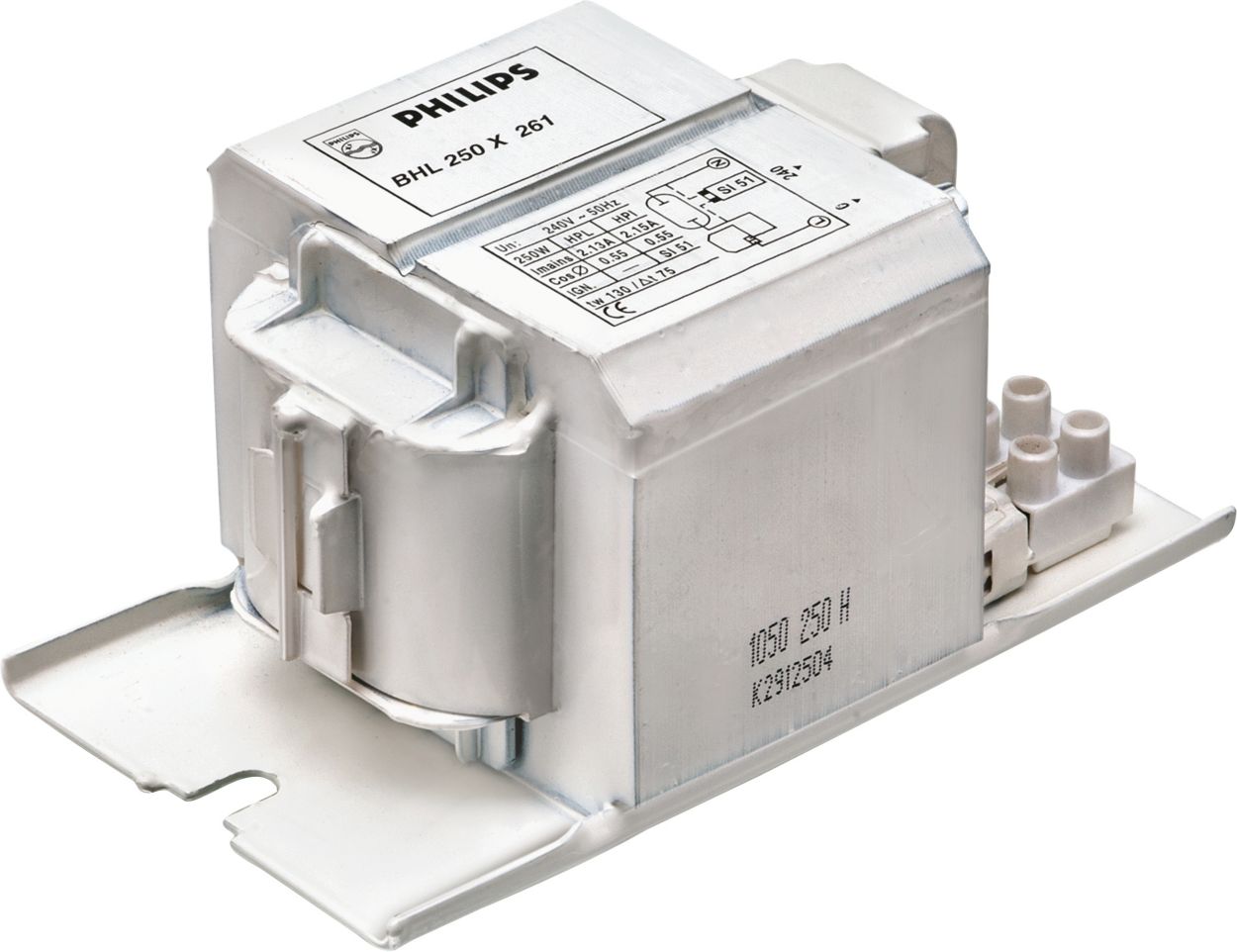

    BHL 250 X261

    BHL 250 X261

    Downloads

    Leaflet
    Size:792.0 kB

    See all downloads

Specifications Show all

General Information
Application Code
250 X261
Lamp Type
HPL/HPI/HPI-T
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
240 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
240+6%--8%
Mains Voltage Safety (AC)
240-10%-+10%
Input Current With PF Correction
1.32 A
Input Current Without PF Correction
2.15 A
Power Factor With PF Compensation
0.85
Power Factor Without PF Compensation (Nom)
0.52
Power Losses (Nom)
22 W
Wiring
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
250 W
Temperature
T-Winding (Max)
130 °C
Delta-T Normal Conditions
75 °C
Approval and Application
Energy Efficiency Index
Not specified
Approval Marks
CE marking
Product Data
Full product code
871150088452700
Order product name
BHL 250 X261
EAN/UPC - Product
8711500884527
Order code
913702253012
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
4
Material Nr. (12NC)
913702253012
Net Weight (Piece)
2.110 kg
Installation Diagrams
BHL 250 X261  OEM
BHL 250 X261 OEM
