  • Product Description

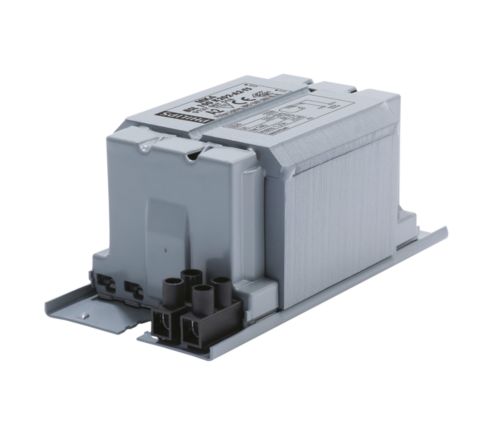

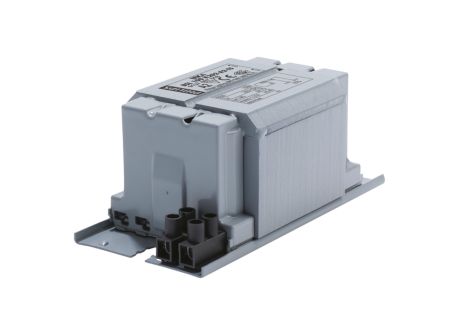

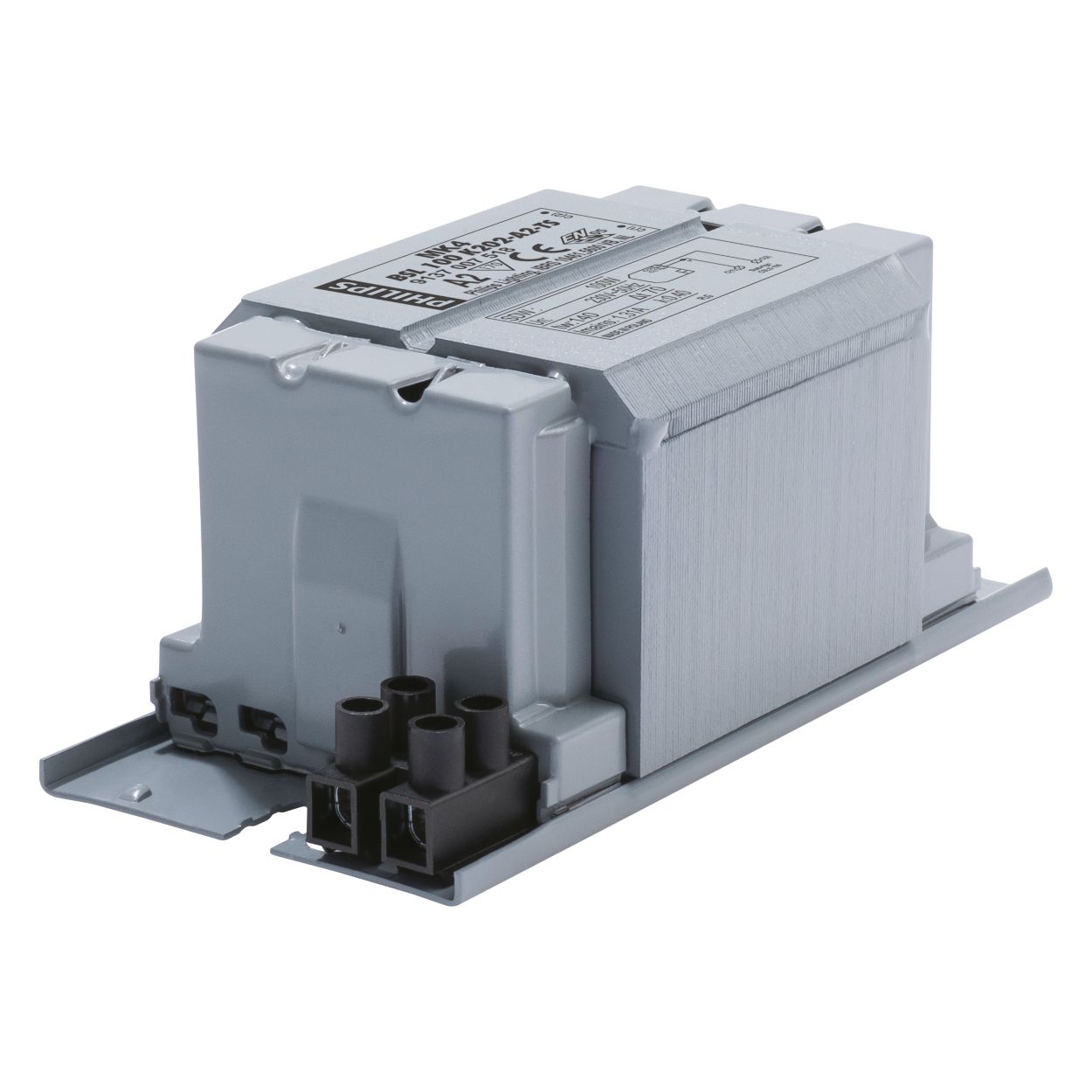

    BSL 100 K202-A2-TS 230V 50Hz

    BSL 100 K202-A2-TS 230V 50Hz

    Full Product Code: 871869674076700

    Order code: 913700751826

    Downloads

    Leaflet
    Size:423.2 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Application Code
K202-A2-TS
Design
BC1-118
Lamp Type
SDW-T
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
230 V
Input Frequency
50 Hz
Power Factor 100% Load (Nom)
0.85
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Input Current With PF Correction
0.55 A
Input Current Without PF Correction
1.31 A
Power Factor Without PF Compensation (Nom)
0.4
Power Losses (Nom)
15 W
Wiring
Wire Striplength
6.0 mm
Ballast Contact Wire Cross Section
2.5 mm²
Connector Type
Screw
System characteristics
Capacitor
14µF/250V
Rated Ballast-Lamp Power
150/100 W
Recommended Ignitor
only CSLS 100 (913619189966)
Temperature
T-Storage (Max)
130 °C
T-Storage (Min)
-30 °C
T-Winding (Max)
140 °C
Delta-T Normal Conditions
70 °C
Approval and Application
Active Temperature Protection
Yes
Approval Marks
CE marking
ENEC certificate
Product Data
Full product code
871869674076700
Order product name
BSL 100 K202-A2-TS 230V 50Hz
EAN/UPC - Product
8718696740767
Order code
913700751826
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
913700751826
Net Weight (Piece)
1.400 kg
Installation Diagrams
BSL 100 K202-A2-TS 230V 50Hz
BSL 100 K202-A2-TS 230V 50Hz
