    • Micropower electronic ballast for TL/PL-S/-T/-C lamps

      EBS  118 230 SH
      EBS  118 230 SH

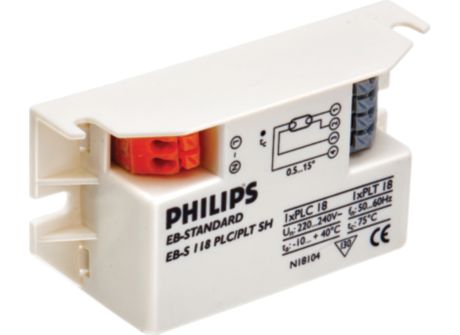

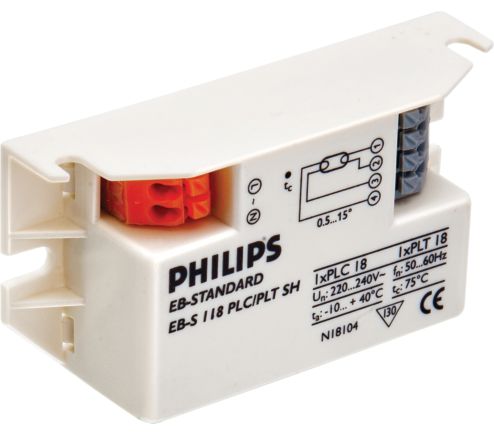

      EBS 118 230 SH

      Order code: 913702243112

      Full Product Code: 871150088497800

      Downloads

      Leaflet
      Size:774.6 kB

      See all downloads

    Specifications Show all

    General Information
    Design
    Square Housing
    Lamp Type
    PL-T/C
    Number of Lamps
    1 piece/unit
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Operating Frequency (Min)
    42 kHz
    Ignition Method
    Warm Start
    Crestfactor (Max)
    1.85
    Power Factor 100% Load (Nom)
    0.6
    Ignition Time (Max)
    1 s
    Mains Voltage Performance (AC)
    221-254V
    Mains Voltage Safety (AC)
    216-264V
    Constant Wattage Deviation
    Not specified
    Power Losses (Nom)
    3.5 W
    Wiring
    Connector Type Input Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Connector Type Output Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Wire Striplength
    9.0-10.0 mm
    Input Terminal Cross Section
    0.50-1.50 mm²
    Output Terminal Cross Section
    0.50-1.50 mm²
    System characteristics
    Rated Ballast-Lamp Power
    18 W
    Temperature
    T-Ambient (Max)
    40 °C
    T-Ambient (Min)
    0 °C
    T-Storage (Max)
    85 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Max)
    75 °C
    T-Ignition (Min)
    0 °C
    Emergency Operation
    Battery Voltage Lamp Ignition
    198-254 V
    Battery Voltage Lamp Operation
    176-254
    Approval and Application
    EMC Immunity Standard
    IEC 61547
    Vibration Standard
    -
    Bumps Standard
    Not specified
    Humidity Standard
    IEC 61347-2-3 clause 11
    Hum And Noise Level
    Inaudible
    Product Data
    Full product code
    871150088497800
    Order product name
    EBS 118 230 SH
    EAN/UPC - Product
    8711500884978
    Order code
    913702243112
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    50
    Material Nr. (12NC)
    913702243112
    Net Weight (Piece)
    0.040 kg
    Installation Diagrams
    EB-S 118 PLC/PLT SH
    EB-S 118 PLC/PLT SH
