  • Most reliable standard, energy-efficient solution

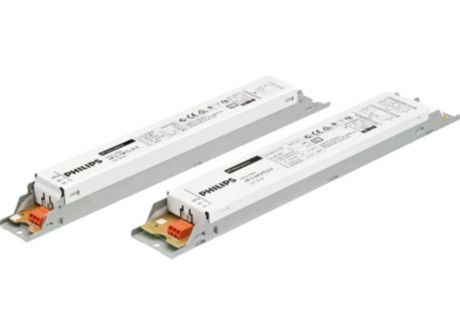

    HF-S 235 TL5 II 220-240V 50/60Hz
    HF-S 235 TL5 II 220-240V 50/60Hz

    HF-S 235 TL5 II 220-240V 50/60Hz

    Order code: 913713033366

    Full Product Code: 872790088334300


    Size:540.5 kB

    See all downloads

Specifications Show all

General Information
Application Code
Type Version
Lamp Type
Number of Lamps
2 piece/unit
Automatic Restart
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
40-60 kHz
Crestfactor (Nom)
Power Factor 100% Load (Nom)
Preheat Time
1.2 s
Mains Voltage Performance (AC)
Mains Voltage Safety (AC)
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.25 ms
Ballast Factor (Nom)
Power Losses (Nom)
8.5 W
Inrush Current Peak (Max)
25 A
Connector Type Input Terminals
WAGO 744 connector
Cable Capacity Output Wires Mutual (Max)
200 pF
Connector Type Output Terminals
WAGO 744 connector  [ Suitable for manual wiring]
Cable Length Hot Wiring
0.75 m
Wire Striplength
8.0 mm
Dual Fixture Master/Slave
Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Cold Output Wires - Earth (Max)
200 pF
Cable Capacity Hot Output Wires - Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
35 W
Rated Lamp Power on TL5
35 W
System Power on TL5
77 W
Lamp Power on TL5
68.5 W
Power Loss on TL5
8.5 W
T-Ambient (Max)
50 °C
T-Ambient (Min)
-15 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Case Lifetime (Nom)
75 °C
T-Case Maximum (Max)
75 °C
Mechanical and Housing
L 280x30x21.5
Emergency Operation
Nominal Light Output After 60 Seconds
100% of EBLF
Normal Operating Voltage (DC)
220-240 V
Battery Voltage Guaranteed Operation
176-275 V
Battery Voltage Guaranteed Ignition
186-275 V
Emergency Ballast Lumen Factor (EBLF) (Nom)
0.7 %
Nominal Light Output After 5 Seconds
50% of EBLF
Approval and Application
Energy Efficiency Index
IP Classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb (10G/16ms)
Approval Marks
CE marking
ENEC certificate
CCC certificate
C-Tick certificate
PSB certification
TISI marking
SIRIM approval
CB Certificate
CCC certificate
VDE-EMV certificate
Hum And Noise Level
< 30 dB(A)
Product Data
Full product code
Order product name
HF-S 235 TL5 II 220-240V 50/60Hz
EAN/UPC - Product
Order code
Numerator - Quantity Per Pack
Numerator - Packs per outer box
Material Nr. (12NC)
Net Weight (Piece)
0.209 kg
Installation Diagrams
HF-S 235 TL5 II 220-240V 50/60Hz
HF-S 235 TL5 II 220-240V 50/60Hz
2 Lamps
2 Lamps
