    • Robust design, compact form

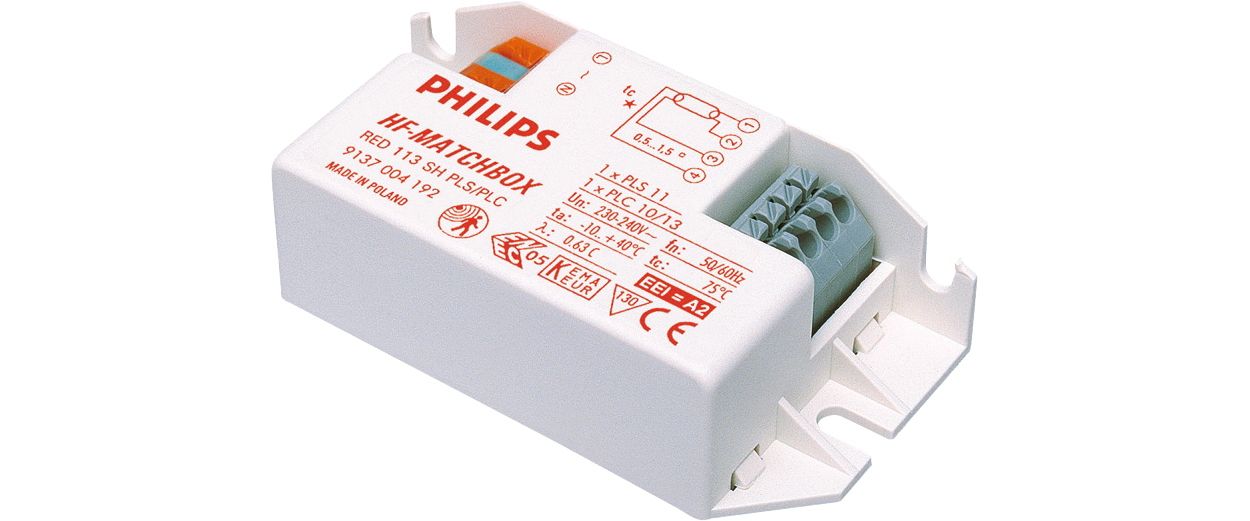

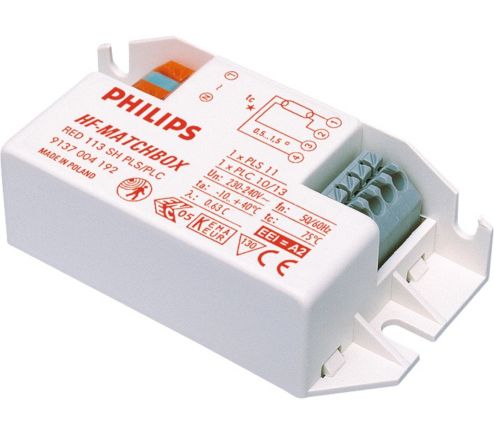

      HF-M RED 118 SH PL-C/PL-T 230-240V
      HF-M RED 118 SH PL-C/PL-T 230-240V

      HF-M RED 118 SH PL-C/PL-T 230-240V

      Order code: 913700423466

      Full Product Code: 871150092802330

      Downloads

      Leaflet
      Size:842.3 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp Type
    PL-C/PL-T
    Number of Lamps
    1 piece/unit
    Number of Products on MCB (16A Type B) (Nom)
    73
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    230 to 240 V
    Input Frequency
    50 to 60 Hz
    Power Factor 100% Load (Nom)
    0.62
    Ignition Time (Max)
    0.45 s
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Power Losses (Nom)
    2.0-2.1 W
    Wiring
    Connector Type Input Terminals
    Insert
    Color Input Terminals
    Orange
    Color Output Terminals
    Grey
    Connector Type Output Terminals
    Insert
    Cable Length From Device to Lamp
    1.50 m
    Cable Length Hot Wiring
    0.30 m
    Wire Striplength
    8.0-9.0 mm
    Input Terminal Cross Section
    0.50-1.50 mm²
    Output Terminal Cross Section
    0.50-1.50 mm²
    System characteristics
    Rated Ballast-Lamp Power
    18 W
    Rated Lamp Power on PL-T
    18 W
    System Power on PL-T
    17.3 W
    Power Loss on PL-T
    2.1 W
    Lamp Power on PL-T
    15.2 W
    System Power on PL-C
    17.9 W
    Rated Lamp Power on PL-C
    18 W
    Power Loss on PL-C
    2 W
    Lamp Power on PL-C
    15.9 W
    Temperature
    T-Ambient (Max)
    40 °C
    T-Ambient (Min)
    -10 °C
    T-Case Maximum (Max)
    75 °C
    Mechanical and Housing
    Housing
    SH
    Emergency Operation
    Battery Voltage Lamp Ignition
    194-254 V
    Approval and Application
    IP Classification
    IP 20  [ Ingress Protection 20]
    Approval Marks
    F-Marking
    CE marking
    ENEC certificate
    CB Certificate
    Product Data
    Full product code
    871150092802330
    Order product name
    HF-M RED 118 SH PL-C/PL-T 230-240V
    EAN/UPC - Product
    8711500928023
    Order code
    913700423466
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    50
    Material Nr. (12NC)
    913700423466
    Net Weight (Piece)
    0.034 kg
    Installation Diagrams
    HF-M RED 118 SH PL-C/PL-T 230-240V
    HF-M RED 118 SH PL-C/PL-T 230-240V
