    • EB-T electronic ballasts for TL-D lamps

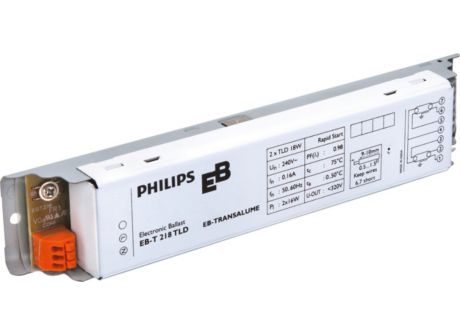

      EBT 218 TLD
      EBT 218 TLD

      EBT 218 TLD

      Order code: 913702249112

      Full Product Code: 872790007852700

      Downloads

      Leaflet
      Size:767.5 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp Type
    TL-D
    Number of Lamps
    2 piece/unit
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Operating Frequency (Min)
    42 kHz
    Ignition Method
    Rapid Start
    Crestfactor (Max)
    1.7
    Power Factor 100% Load (Nom)
    0.98
    Ignition Time (Max)
    0.45 s
    Mains Voltage Performance (AC)
    221-254V
    Mains Voltage Safety (AC)
    216-264V
    Earth Leakage Current (Nom)
    0.7 mA
    Constant Wattage Deviation
    Not specified
    Power Losses (Nom)
    4.5 W
    Wiring
    Connector Type Input Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Cable Capacity Output Wires Mutual (Nom)
    150 pF
    Connector Type Output Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Wire Striplength
    9.0-10.0 mm
    Input Terminal Cross Section
    0.50-1.50 mm²
    Output Terminal Cross Section
    0.50-1.50 mm²
    Cable Capacity Output Wires to Earth (Nom)
    75 pF
    System characteristics
    Rated Ballast-Lamp Power
    18 W
    Temperature
    T-Ambient (Max)
    50 °C
    T-Ambient (Min)
    0 °C
    T-Storage (Max)
    85 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Max)
    75 °C
    T-Ignition (Min)
    0 °C
    Emergency Operation
    Battery Voltage Lamp Ignition
    198-254 V
    Battery Voltage Lamp Operation
    176-254
    Approval and Application
    Energy Efficiency Index
    A3
    EMI 9 kHz ... 30 MHz
    EN 55015 edition 7.1
    EMI 30 MHz ... 1000 MHz
    EN 55022
    Safety Standard
    IEC 61347-2-3
    Performance Standard
    IEC 60929
    Harmonic Current Emission Standard
    IEC 61000-3-2
    EMC Immunity Standard
    IEC 61547
    Vibration Standard
    IEC68-2-6 F c
    Bumps Standard
    IEC 68-2-29 Eb
    Humidity Standard
    EN 61347-2-3 clause 11
    Approval Marks
    CE marking
    S Mark
    Temperature Marking
    Not specified
    Hum And Noise Level
    Inaudible
    Product Data
    Full product code
    872790007852700
    Order product name
    EBT 218 TLD
    EAN/UPC - Product
    8711500997029
    Order code
    913702249112
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    913702249112
    Net Weight (Piece)
    0.205 kg
    Installation Diagrams
    EBT 218 TLD
    EBT 218 TLD
