    • EB-E electronic ballasts for TL-D lamps

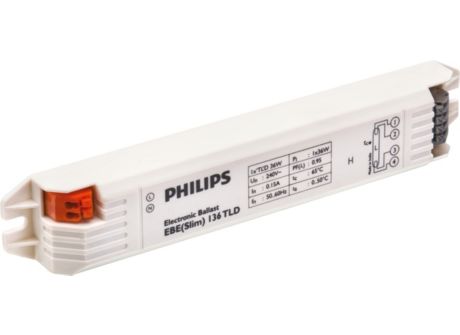

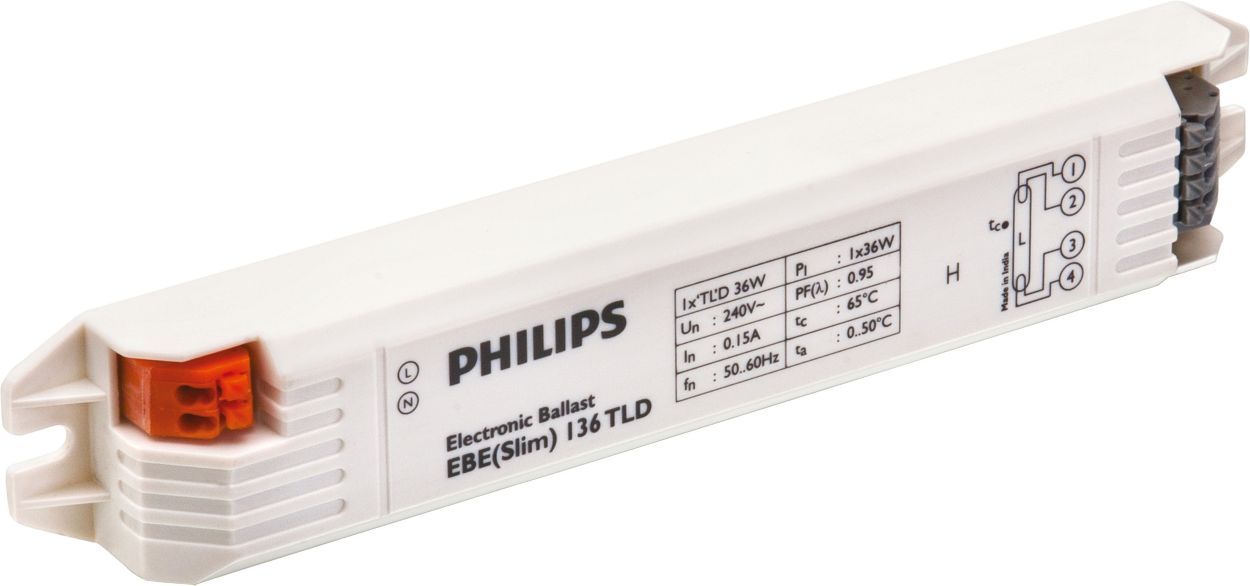

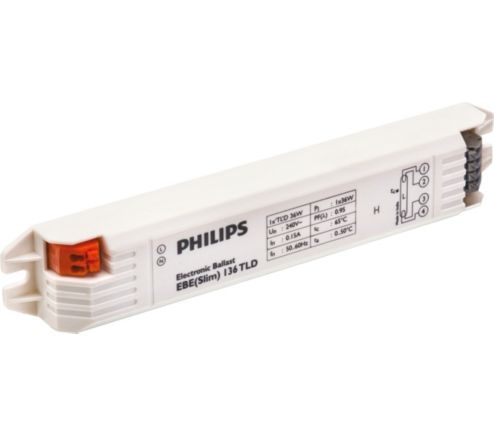

      EBE (Slim) 136 TLD 240V
      EBE (Slim) 136 TLD 240V

      EBE (Slim) 136 TLD 240V

      Order code: 913702242021

      Full Product Code: 871829111590800

      Downloads

      Leaflet
      Size:589.5 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp Type
    TL-D
    Number of Lamps
    1 piece/unit
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    240 V
    Input Frequency
    50 to 60 Hz
    Operating Frequency (Min)
    42 kHz
    Ignition Method
    Instant Start
    Crestfactor (Max)
    1.8
    Power Factor 100% Load (Nom)
    0.95
    Ignition Time (Max)
    0.15 s
    Mains Voltage Performance (AC)
    221-254V
    Mains Voltage Safety (AC)
    216-264V
    Constant Wattage Deviation
    Not specified
    Power Losses (Nom)
    3.5 W
    Wiring
    Connector Type Input Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Connector Type Output Terminals
    WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    System characteristics
    Rated Ballast-Lamp Power
    36 W
    Temperature
    T-Ambient (Max)
    50 °C
    T-Ambient (Min)
    0 °C
    T-Storage (Max)
    85 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Max)
    65 °C
    T-Ignition (Min)
    0 °C
    Emergency Operation
    Battery Voltage Lamp Ignition
    198-254 V
    Battery Voltage Lamp Operation
    Not specified
    Approval and Application
    Energy Efficiency Index
    Not specified
    EMI 9 kHz ... 30 MHz
    Not specified
    EMI 30 MHz ... 1000 MHz
    -
    Safety Standard
    -  [ Not specified]
    Performance Standard
    Not Specified
    Harmonic Current Emission Standard
    Not Specified
    EMC Immunity Standard
    IEC 61547
    Vibration Standard
    -
    Bumps Standard
    Not specified
    Humidity Standard
    EN 61347-2-3 clause 11
    Temperature Marking
    Not specified
    Hum And Noise Level
    Inaudible
    Product Data
    Full product code
    871829111590800
    Order product name
    EBE (Slim) 136 TLD 240V
    EAN/UPC - Product
    8718291115908
    Order code
    913702242021
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    913702242021
    Net Weight (Piece)
    0.070 kg
    Installation Diagrams
    EBE 136 TLD 240 OEM
    EBE 136 TLD 240 OEM
