  • Product Description

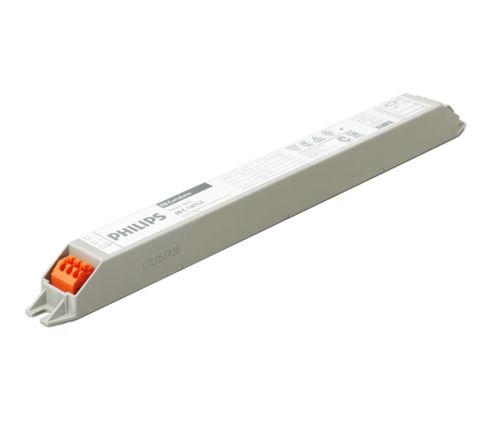

    EB-C 114 TL5 220-240V 50/60Hz

    EB-C 114 TL5 220-240V 50/60Hz

    Downloads

    Leaflet
    Size:85.8 kB

    See all downloads

Specifications Show all

General Information
Lamp Type
TL5
Number Of Lamps
1 piece/unit
Automatic Restart
No
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
40-60 kHz
Power Factor 100% Load (Nom)
0.97
Mains Voltage Performance (AC)
220-240V-50-60HZ
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.7 mA
Power Losses (Nom)
3.5 W
Wiring
Connector Type Input Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Color Input Terminals
Orange
Color Output Terminals
Grey
Connector Type Output Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring
0.75 m
Wire Striplength
7.5-8.5 mm
Dual Fixture Master/Slave
No  [ Master/Slave operation not possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
14 W
Rated Lamp Power On TL5
14 W
System Power On TL5
18.3 W
Lamp Power On TL5
14.8 W
Power Loss On TL5
3.5 W
Temperature
T-Case Lifetime (Nom)
75 °C
Mechanical and Housing
Housing
L 275x20x21
Approval and Application
Energy Efficiency Index
A2
Overvoltage Protection 276Vac
48 h
EMI 9 kHz ... 30 MHz
EN55015
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
IEC 61347-2-3
Approval Marks
CCC certificate
CB Certificate
Product Data
Full product code
872790088654200
Order product name
EB-C 114 TL5 220-240V 50/60Hz
EAN/UPC - Product
8711500998903
Order code
913713196214
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
50
Material Nr. (12NC)
913713196214
Net Weight (Piece)
0.044 kg
Installation Diagrams
EB-C 114 TL5 220-240V 50/60 HZ
EB-C 114 TL5 220-240V 50/60 HZ
