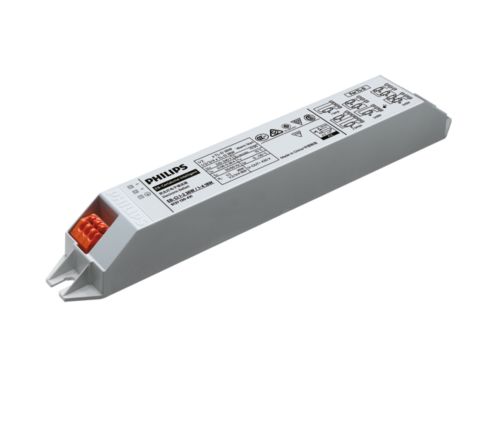

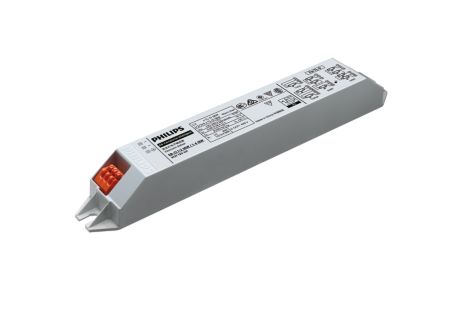

EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz

  • An energy-efficient solution

    EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz

    Philips China Investment EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz

    Downloads

    Leaflet
    Size:403.0 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Lamp Type
TL-D
Number Of Lamps
1-4 piece/unit
Suitable For Outdoor Use
No
Number Of Products On MCB (16A Type B) (Max)
28
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220-240 V
Input Frequency
50 or 60 Hz
Operating Frequency (Nom)
42-60 kHz
Ignition Method
Warm Start
Crestfactor (Max)
1.7
Ignition Time (Nom)
1.0 s
Mains Voltage Performance (AC)
-10%-+10%
Mains Voltage Safety (AC)
198...264V
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.35 ms
Ballast Factor (Nom)
1
Power Factor (Max)
0.98
Power Factor (Min)
0.90
Input Power (Max)
70.2 W
Input Power (Min)
21.3 W
Power Losses (Max)
6.2 W
Power Losses (Nom)
3.3 W
Inrush Current Peak (Max)
19 A
Rated Lamp Power
18-36 W
Wiring
Connector Type Input Terminals
Insert
Cable Capacity Output Wires Mutual (Max)
150 pF
Connector Type Output Terminals
Insert
Cable Length Hot Wiring
0.75 m
Wire Striplength
7.5-8.5 mm
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Max)
150 pF
Connector Type
Insert
System characteristics
Rated Lamp Power On TL-D
18-36 W
System Power On TL-D
21.3-68.2 W
Lamp Power On TL-D
18.0-31.0 W
Power Loss On TL-D
3.3-6.2 W
Temperature
T-Ambient (Max)
50 °C
T-Case Lifetime (Max)
75 °C
T-Case Maximum (Max)
75 °C
T-Ignition (Max)
50 °C
T-Ignition (Min)
-10 °C
Mechanical and Housing
Housing Material
Plastic
Housing
L210x30x26mm
Emergency Operation
Battery Voltage Lamp Ignition
165-253 V
Approval and Application
Energy Efficiency Index
A2
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1000 MHz
EN 55015
Safety Standard
IEC 61347-2-3,IEC 61347-1
Quality Standard
ISO 9001
Environmental Standard
ISO 14001
EMC Immunity Standard
EN 55015
Vibration Standard
IEC60068-2-6 F c
Bumps Standard
Not specified
Approval Marks
CB Certificate
CCC certificate
TISI marking
PSB certification
RCM compliance
CS Compliance
IRAM Compliance
SNI Certificate
Temperature Marking
Yes
Hum And Noise Level
< 30 dB(A)
Product Data
Full product code
694793913353600
Order product name
EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz
EAN/UPC - Product
6947939133536
Order code
913713043180
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
30
Material Nr. (12NC)
913713043180
Net Weight (Piece)
0.080 kg
Installation Diagrams
EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz
EB-Ci 1-2 36W / 1-4 18W 220-240V 50/60Hz
