        Product family information

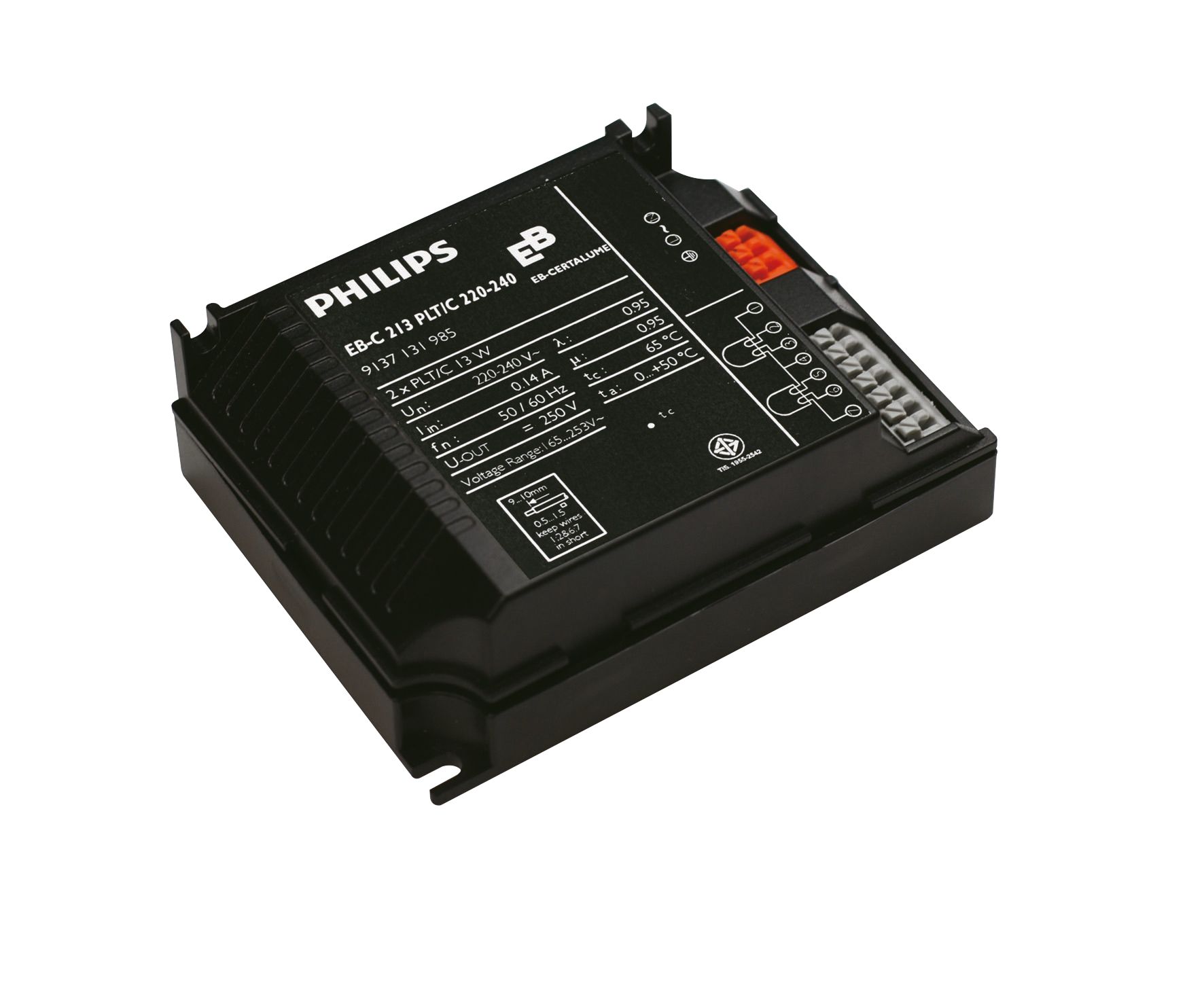

        Affordable, reliable, high frequency electronic ballast for 4-pin PL-T and PL-C fluorescent lamps, ideal alternative for electromagnetic (EM) ballastsThe ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.

        Benefits

        Energy efficient, saving 25% energy compared to electromagnetic “C-type” ballasts
        The EB-C TL5 range has a robust design and meets safety, EMC and Immunity tests including safety approbation via an external test-house covering IEC/EN 61347.
        Ideal alternative for electromagnetic ballast, no ignitor needed Pre wired, Lamp/ mains wires and lamp holders are included for easy installation.
        Same size as electromagnetic ballast so ideal for replacements

        Features

        Energy efficient CELMA A3
        Complying to CCC certificate including safety acc IEC 61347
        Robust design for 20.000 hour lifetime and 3.000 on/off switches on one lamp.
        Rapid, flicker-free lamp start (< 1.6 s)
        High power factor 0.95 with THD <25%
        EMC compliant to EN 55015 2006 + A1 2007
        Wide voltage range for ignition and operation (165V-253V)
        45 degree connector for easy connection with push button release

        Applications

        Designed for applications where lamps burn for a long period of time and switching cycle (on/off) is infrequent. Typical areas of application include:
        Professional indoor applications (e.g. offices and hotels)
        Department stores, shops, supermarkets, convenient stores and public area’s
        Indoor lighting boxes
        Homes
