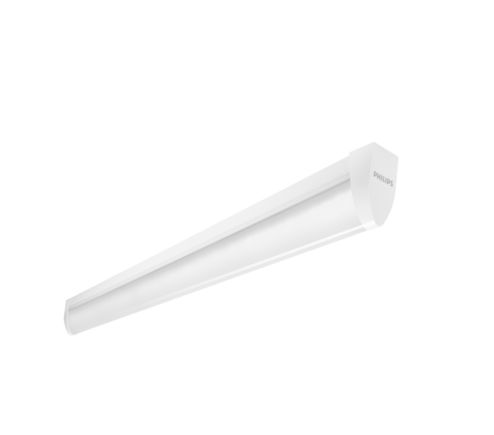

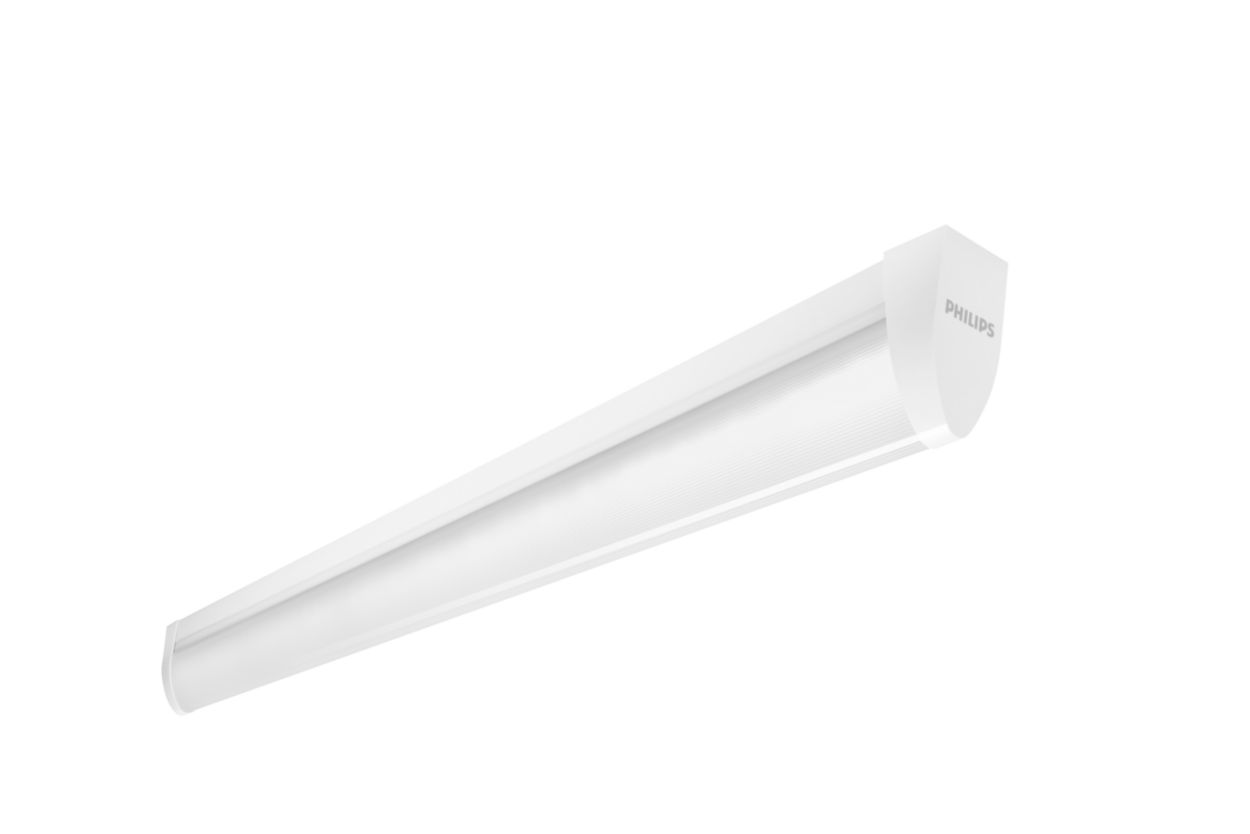

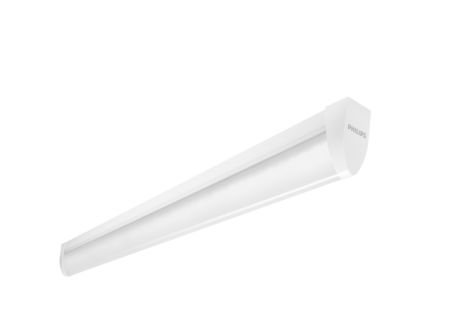

    CR385C LED40/NW

    CR385C LED40/NW

    Full Product Code: 911401588301

    Order code: 911401588301

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Lamp family code
LED37S  [ LED Module, system flux 3700 lm]
Beam angle of light source
120 °
Light source color
Neutral white
Light source replaceable
No
Number of gear units
1 unit
Gear
-
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Wide beam
Optical cover/lens type
Linear-lens array in polycarbonate cover
Luminaire light beam spread
150°
Connection
Internal connector
Cable
-
Protection class IEC
Safety class I
Glow-wire test
Temperature 650 °C, duration 30 s
Flammability mark
-
CE mark
-
ENEC mark
-
UL mark
-
Warranty period
3 years
Constant light output
No
Spare parts available
No
Number of products on MCB of 16 A type B
24
RoHS mark
-
Operating and Electrical
Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Inrush current
20 A
Inrush time
0.25 ms
Power Factor (Min)
0.9
Power Factor (Nom)
0.9
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Steel
Reflector material
-
Optic material
Polycarbonate
Optical cover/lens material
Polycarbonate
Gear tray material
Steel
Fixation material
-
Optical cover/lens finish
Clear
Overall length
1200 mm
Overall width
60 mm
Overall height
110.5 mm
Approval and Application
Ingress protection code
IP40  [ Wire-protected]
Mech. impact protection code
IK02  [ 0.2 J standard]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
3800 lm
Luminous flux tolerance
+/-7.5%
Initial LED luminaire efficacy
95 lm/W
Init. Corr. Color Temperature
4000 K
Init. Color Rendering Index
80
Initial chromaticy
(0.38, 0.38) SDCM <5
Initial input power
40 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Driver failure rate at 5000 h
1 %
Median useful life L70B50
50000 h
Median useful life L80B50
35000 h
Median useful life L90B50
25000 h
Application Conditions
Ambient temperature range
-25 to +35 °C
Average ambient temperature
25 °C
Suitable for random switching
No
Product Data
Full product code
911401588301
Order product name
CR385C LED40/NW
Order code
911401588301
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
1
Material Nr. (12NC)
911401588301
Net Weight (Piece)
2.500 kg
Installation Diagrams
CR385C LED20/LED40
CR385C LED20/LED40
