  • Greenperform Cleanroom Teardrop G2, provide you a safe, reliable, comfortable cleanroom lighting experience.

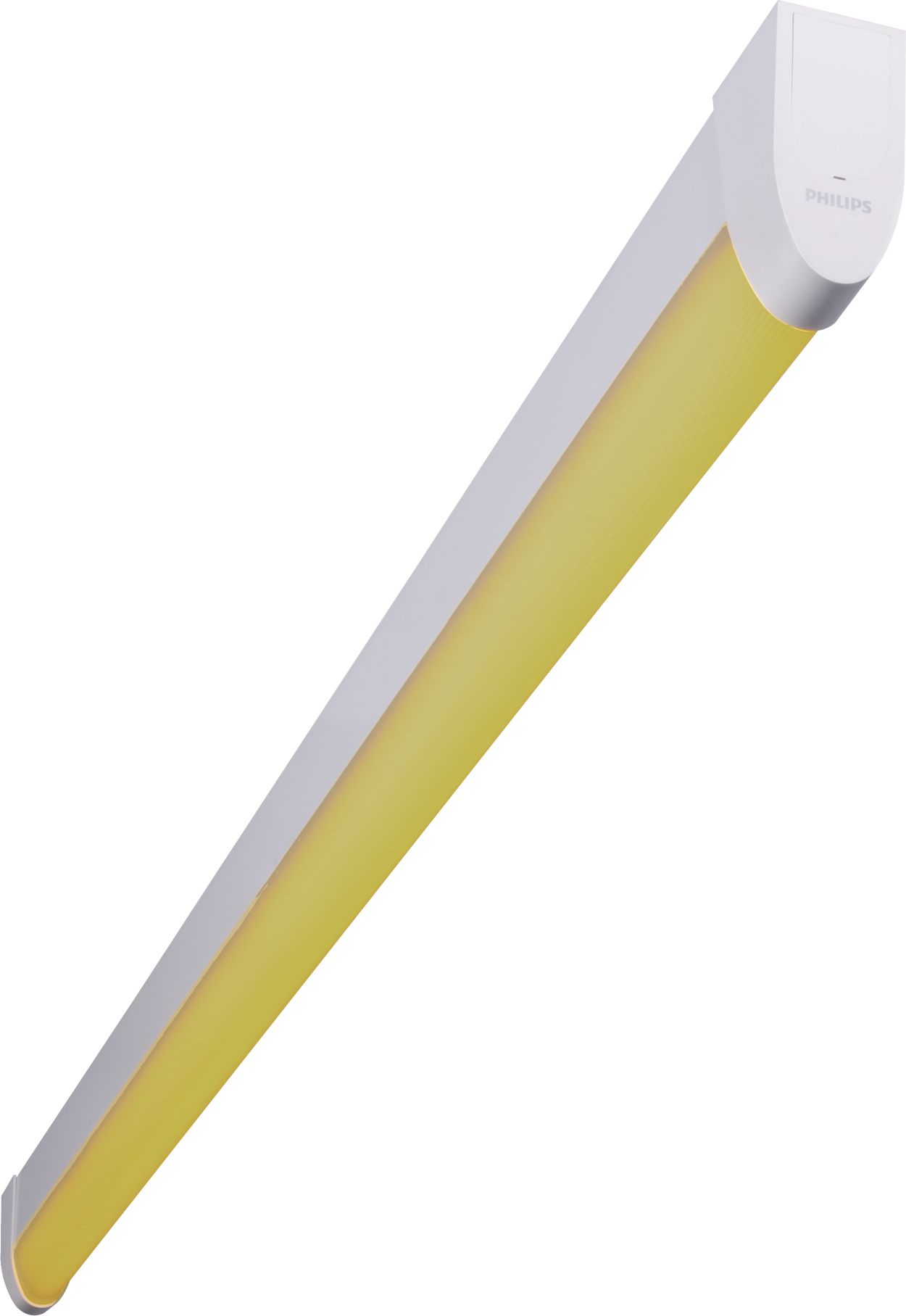

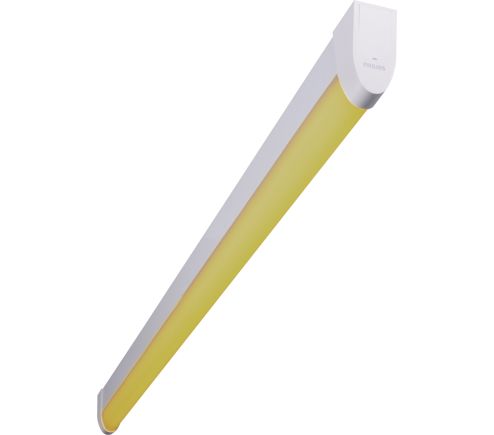

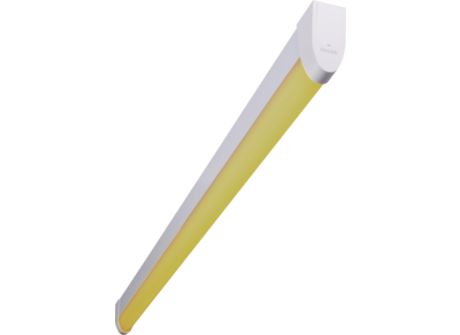

    CR388C LED20 Amber L120 PSU EN
    CR388C LED20 Amber L120 PSU EN

    CR388C LED20 Amber L120 PSU EN

    Order code: 911401519141

    Full Product Code: 911401519141

    Downloads

    Leaflet
    Size:363.8 kB

    See all downloads

Specifications Show all

General Information
Beam angle of light source
- °
Light source color
Amber
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Symmetrical
Luminaire light beam spread
120°
Control interface
-
Connection
Flying leads/wires
Protection class IEC
Safety class I
Glow-wire test
Temperature 750 °C, duration 5 s
Flammability mark
-
CE mark
CE mark
ENEC mark
-
Warranty period
3 years
Constant light output
No
Number of products on MCB of 16 A type B
33
RoHS mark
RoHS mark
Operating and Electrical
Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Inrush current
14 A
Inrush time
0.25 ms
Power Factor (Min)
0.95
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Polycarbonate
Reflector material
Steel
Optic material
Polycarbonate
Optical cover/lens material
Polycarbonate
Fixation material
Stainless steel
Optical cover/lens finish
Opal
Overall length
1200 mm
Overall width
45 mm
Overall height
84 mm
Approval and Application
Ingress protection code
IP40  [ Wire-protected]
Mech. impact protection code
IK03  [ 0.3 J]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
2200 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
105 lm/W
Initial chromaticity
SDCM<5
Initial input power
21 W
Power consumption tolerance
+/-10%
Application Conditions
Ambient temperature range
0 to +35 °C
Maximum dim level
Not applicable
Suitable for random switching
Not applicable
Product Data
Full product code
911401519141
Order product name
CR388C LED20 Amber L120 PSU EN
Order code
911401519141
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
1
Material Nr. (12NC)
911401519141
Net Weight (Piece)
1.199 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
CR388C L20
CR388C L20
